NGK SPARK PLUGS U2020 Part Description
Manufacturer
Product Description

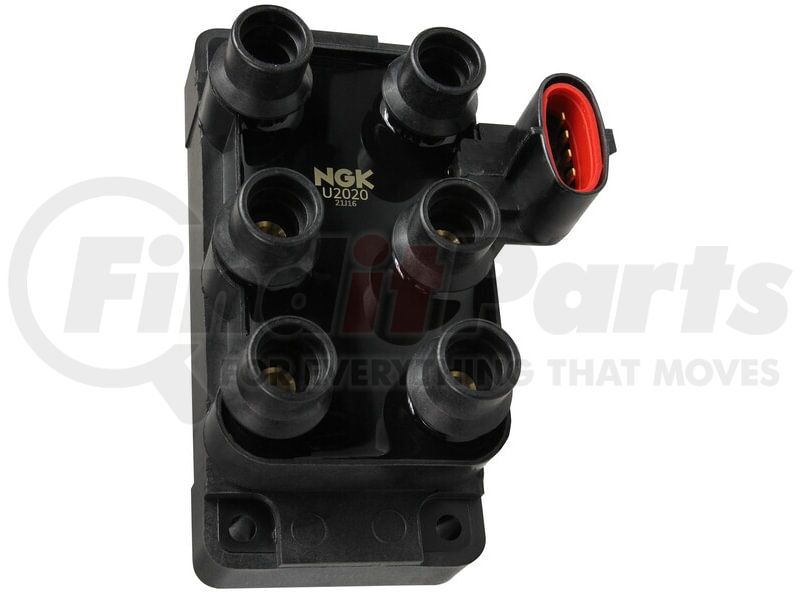

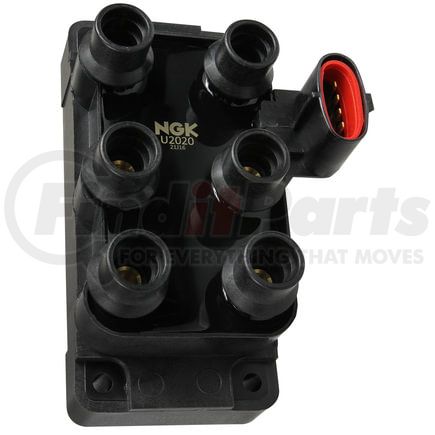

NGK DIS Ignition Coil
Features & Benefits
- OE QUALITY: Vacuum-sealed premium epoxy resin and thermoplastic coil housings provide superior dielectric strength, voltage insulation and durability
- OPTIMAL PERFORMANCE: Precision coil windings and laminations maximize outputs, custom NGK ASIC chipset optimizes efficiency, prevents component damage
- EASE OF INSTALLATION: Includes mounting hardware and necessary components required for certain applications to ensure worry-free installation
- THE NGK DIFFERENCE: Featuring superior materials and design enhancements, NGK's problem solving solutions are backed by a 3 year/36,000 mile warranty
- EXTENSIVE TESTING: NGK ignition coils must pass extreme testing during manufacturing to ensure the highest quality and durability standards are met
- PRODUCT ENGINEERING: Advanced flow and stress modeling systems preemptively identify and avoid common failure points found in OE and competitor coils
NGK SPARK PLUGS U2020 Specifications
Product Attributes
| Color | Black |
| Connector Quantity | 1 |
| Part Number | U2020 |
| Stock Number | 48850 |
| Voltage | 12.0 2H |
| Ignition Type | Distributorless |
| Coil Type | DIS |
| Oil Filled | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Grade Type | Standard Replacement |
| Terminal Quantity | 4 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Mounting Bracket Included | No |
| Mount Type | Bolt-On |
| Mounting Hole Quantity | 4 |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 36000 |
| Warranty Time UOM | MO |
| Warranty Time | 36 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8511300080 |
| UPC | 00087295488508 |
| UNSPSC | 26101769 |
NGK SPARK PLUGS U2020 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | F509, F518 |
| Altrom Group | 1415100 |
| Autopart International | 2505-98326 |
| BWD | E98P, E98 |
| Beck/Arnley | 178-8421 |
| DENSO | 673-6014 |
| DENSO Auto Parts | 673-6014 |
| Delphi | GN10180 |
| Echlin | IC38 |
| Ford | E9SZ-12029-A, F1SZ-12029-A, F5SZ-12029-A, F5SZ-12029-B, F65Z-12029-B |
| General Motors | 88921257 |
| Hitachi Automotive | IGC1024 |
| Jaguar | LNA1508AA, LNA 1508AA |
| Motorcraft | DG535, DG451, DG456 |
| N/A | DG440, U2020, C901, E9SZ12029A, C901VC, F5SU-12029-AB, F65Z12029B, F1SZ12029A, F5SZ12029A, F5SU12029AB, F5SZ12029B |
| NAPA Mileage Plus | IC38SB |
| NGK | 48850 |
| PRENCO | 36-1161 |
| SPECTRA PREMIUM | C-505 |
| STANDARD IGNITION | FD488 |
| Standard Motor Products | FD-488, FD488 |
| T Series | FD488T |
NGK SPARK PLUGS U2020 Fits Vehicles
- Mazda MPV (2000-2001)
- Mazda B3000 (1998-2000)
- Mercury Mystique (1995-2000)
- Ford Ranger (1998-2000)
- Mercury Sable (1996-2000)
- Mercury Cougar (1989-1990, 1994-1997, 1999-2000)
- Ford E-150 Econoline Club Wagon (1998-2000)
- Ford Thunderbird (1989-1997)
- Ford Windstar (1995-2000)
- Ford Taurus (1996-2000)
- Ford Mustang (1994-2000)
- Ford F-150 (1998-2000)
- Ford E-250 Econoline (1998-2000)
- Ford E-150 Econoline (1998-2000)
- Ford Contour (1995-2000)
- Jaguar XJ12 (1995-1996)
