NGK SPARK PLUGS U1024 Part Description
Manufacturer
Product Description

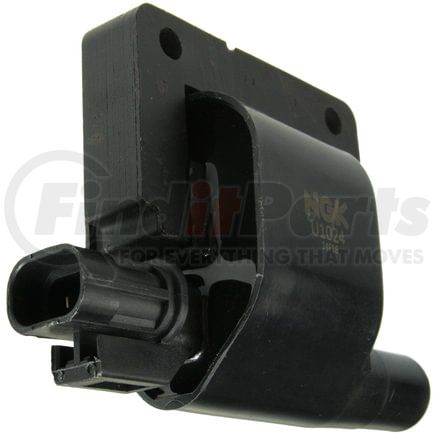

NGK HEI Ignition Coil
Features & Benefits
- OE QUALITY: Vacuum-sealed premium epoxy resin and thermoplastic coil housings provide superior dielectric strength, voltage insulation and durability
- OPTIMAL PERFORMANCE: Precision coil windings and laminations maximize outputs, custom NGK ASIC chipset optimizes efficiency, prevents component damage
- EASE OF INSTALLATION: Includes mounting hardware and necessary components required for certain applications to ensure worry-free installation
- THE NGK DIFFERENCE: Featuring superior materials and design enhancements, NGK's problem solving solutions are backed by a 3 year/36,000 mile warranty
- EXTENSIVE TESTING: NGK ignition coils must pass extreme testing during manufacturing to ensure the highest quality and durability standards are met
- PRODUCT ENGINEERING: Advanced flow and stress modeling systems preemptively identify and avoid common failure points found in OE and competitor coils
NGK SPARK PLUGS U1024 Specifications
Product Attributes
| Color | Black |
| Connector Quantity | 1 |
| Stock Number | 49045 |
| Part Number | U1024 |
| Voltage | 12.0 2H |
| Ignition Type | Electronic |
| Coil Type | HEI |
| Oil Filled | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Grade Type | Standard Replacement |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Mounting Bracket Included | No |
| Mount Type | Bolt-On |
| Mounting Hole Quantity | 2 |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 36000 |
| Harmonized Tariff Code (HTS) | 8511300080 |
| Warranty Time UOM | MO |
| Warranty Time | 36 |
| Country of Origin (Primary) | CN |
| UPC | 00087295490457 |
| UNSPSC | 26101769 |
NGK SPARK PLUGS U1024 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | E571, E575A |
| Altrom Group | 1415057 |
| BWD | E550P, E550 |
| Beck/Arnley | 178-8151 |
| Bosch | 00225 |
| Delphi | GN10024 |
| Echlin | IC114 |
| Ford | F5XZ-12029-AA, F3XY-12029-A |
| General Motors | 88921254 |
| Infiniti | 22433-56S10 |
| Motorcraft | DG464, DG450 |
| N/A | F5XZ12029AA, 22433-53J20, 224330B000, U1024, F3XY12029A, 23-0283, 22433-56E11, 2243353J20, 22433-56E12, 22433-65E00, 22448-56E11, 22448-56E12, 22448-65E00, 22433-0B000, 2243356S10, 2243365E00, 2244856E11, 2244856E12, 2244865E00, 2243356E11, 2243356E12, 22433-56S10 |
| NGK | 49045 |
| Nissan | 22448-56E11, 22448-65E00, 22433-53J20, 22433-56E12, 22433-65E00, 22448-56E12, 22433-0B000, 22433-56E11 |
| SPECTRA PREMIUM | C-508 |
| STANDARD IGNITION | UF-38 |
| Standard Import | UF38 |
| Standard Motor Products | UF-38 |
| Walker Products | 920-1059 |
NGK SPARK PLUGS U1024 Fits Vehicles
- Nissan Axxess (1990-1995)
- Nissan Micra (1990-1991)
- Nissan NX (1991-1993)
- Nissan Pulsar NX (1989-1990)
- Nissan 300ZX (1988-1989)
- Nissan Stanza (1990-1992)
- Nissan Sentra (1989-1994)
- Nissan Quest (1993-1998)
- Nissan Pathfinder (1990-1995)
- Nissan Maxima (1989-1994)
- Nissan Pickup (1995-1996)
- INFINITI M30 (1990-1992)
- INFINITI G20 (1991-1996)
- Nissan D21 (1990-1994)
- Nissan 240SX (1989-1990)
- Mercury Villager (1993-1998)
- Subaru Justy (1989-1991)
