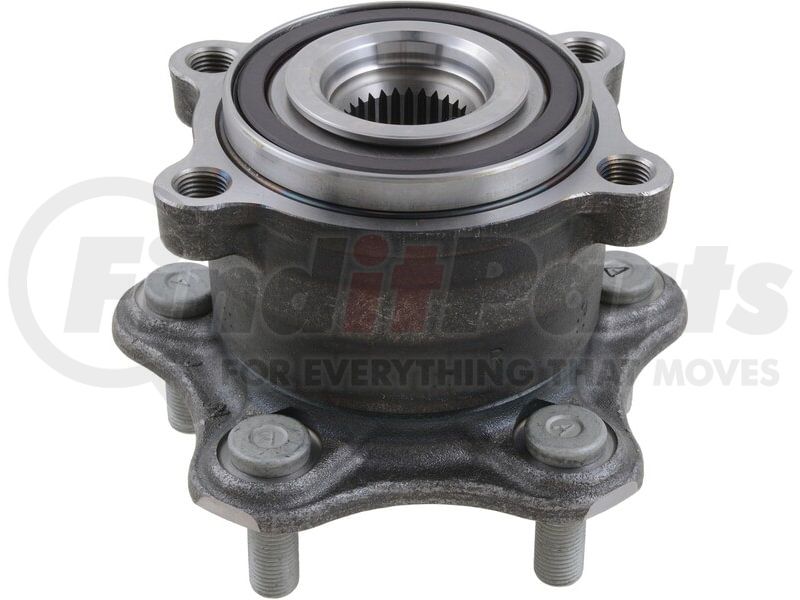

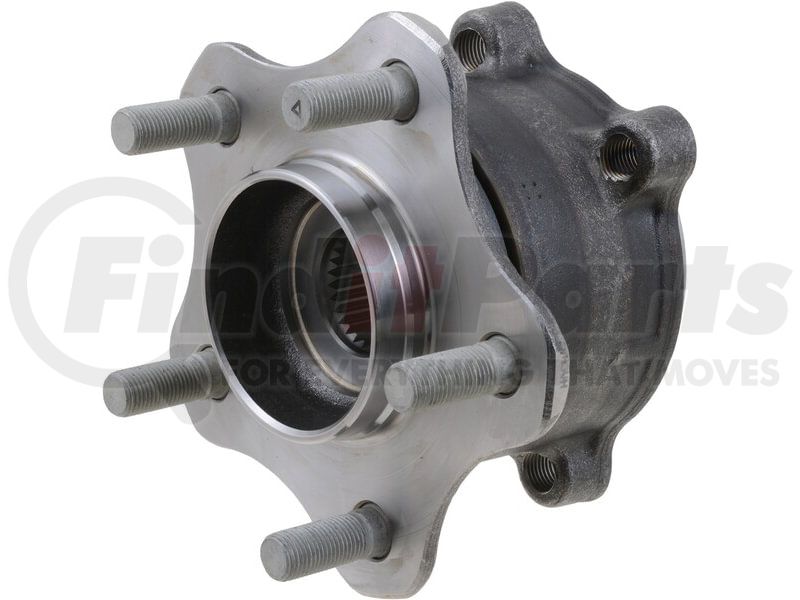

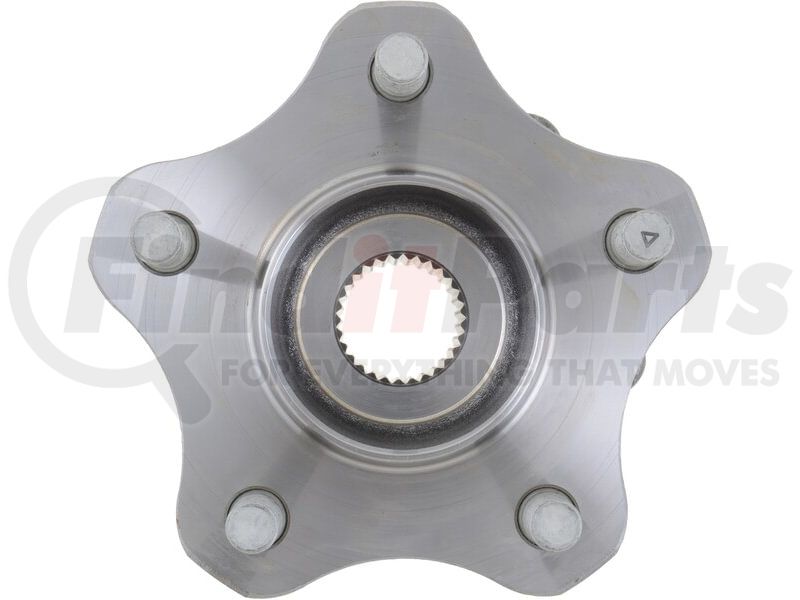

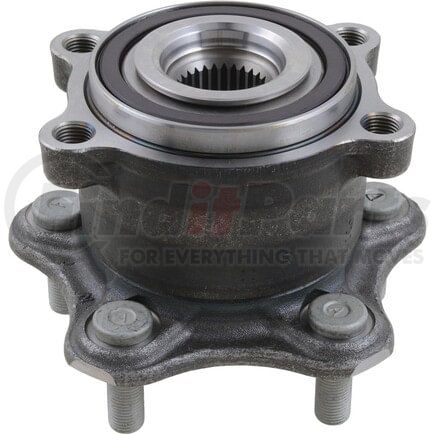

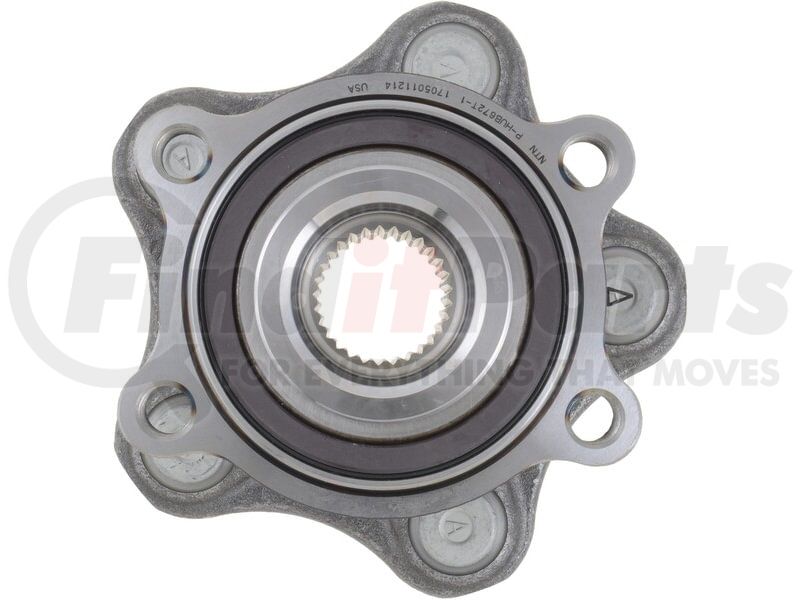

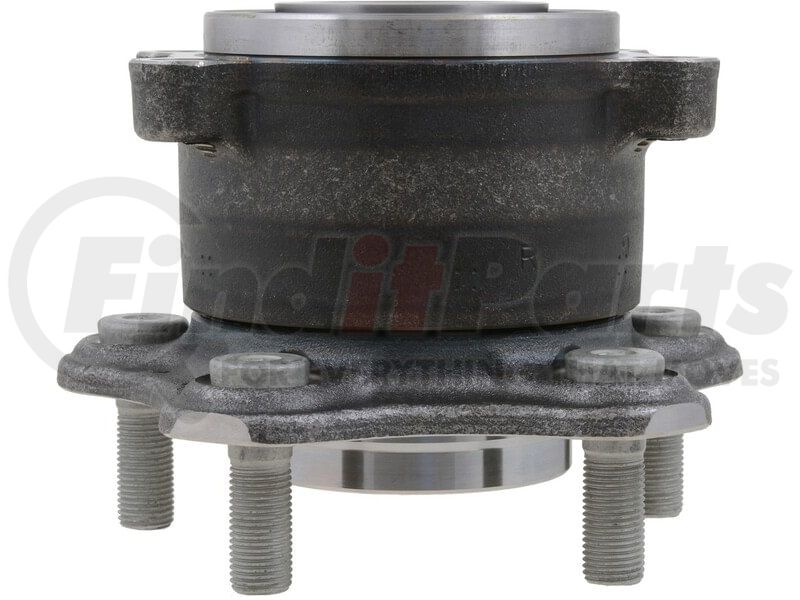

(888) 312-8812 Login SignupOE form, fit & function wheel hub unit.
| Spline Quantity | 29 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Pilot Diameter | 66.0 MM |
| Brake Pilot Diameter | 68.0 MM |
| Wheel Stud Quantity | 5 |
| Flange Shape | Rectangular |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Encoder |
| Drive Type | Driven |
| Flange Offset | 69.0 MM |
| Flange Diameter | 5.827 IN |
| Bolt Circle Diameter | 114.3 MM |
| Bearing Generation | 3 |
| Knuckle Bolt Hole Size | M12X1.25 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00662810617733 |
| Brand | Part Number |
|---|---|
| Centric Parts | 401.42003E |
| GMB | 7503180 |
| Infiniti | 432023JA0B, 432023JA1B, 432025NBA0B |
| MOOG Chassis Products | 512548 |
| Nissan | 432025NBA0B, 432023JA1B, 432023JA0B |
| SKF | BR930868 |
| Schaeffler | 103197 |
| Timken | HA590560 |
| WJB | WA512548 |
