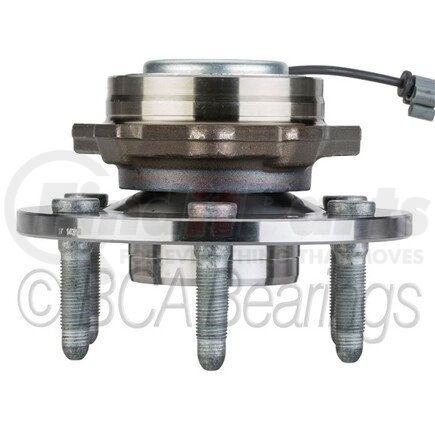

(888) 312-8812 Login SignupNTN WE61576 Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
Tap to view 9 more
$38049
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
NTN WE61576 Part Description
Manufacturer
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
NTN WE61576 Specifications
Product Attributes
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 3 |
| Brake Pilot Diameter | 3.088 IN |
| Flange Shape | Modified Triangle |
| Drive Type | Non-driven |
| Bearing Type | Taper |
| Flange Offset | 1.976 IN |
| Bolt Circle Diameter | 5.500 IN |
| Bearing Generation | Gen 3 |
| Knuckle Bolt Circle Diameter (Inches) | 4.961 |
| Knuckle Bolt Circle Diameter (Millimeters) | 126.0 |
| Knuckle Bolt Hole Size | M14X1.5 |
| Knuckle Pilot Hole Diameter | 3.913 IN |
| Wheel Stud Size | M14X1.5 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810615760 |
NTN WE61576 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | FW302, FW345, 515097 |
| Alltech Automotive | 515097 |
| Autopart International | 1411258034 |
| CENTRIC | 407.66016, 407.66016E |
| CRS Automotive | NT515097 |
| Centric Parts | 407.66016, 407.66016E |
| DT Components | 515097 |
| DuraGo | 29515097 |
| GMB | 7300020 |
| GSP | 106097 |
| General Motors | 20883242, 25819677, 10393170, 22841380, 84356642, 84856653 |
| MOOG Chassis Products | 515097, 515174 |
| MPA | WH515097 |
| Magneti Marelli | 1AMH515097 |
| Mevotech | H515097 |
| Raybestos Brakes | 715097 |
| SKF | BR930693 |
| Schaeffler | 102202 |
| Timken | SP450303 |
| WJB | WA515097 |
NTN WE61576 Fits Vehicles
- Cadillac Escalade ESV (2010-2014)
- GMC Sierra 1500 (2007-2013)
- Chevrolet Silverado 1500 (2007-2013)
- GMC Yukon XL 1500 (2007-2014)
- Chevrolet Suburban 1500 (2007-2014)
- Chevrolet Avalanche (2007-2013)
- Chevrolet Tahoe (2007-2014)
- Cadillac Escalade (2007-2014)
- GMC Yukon (2007-2014)
