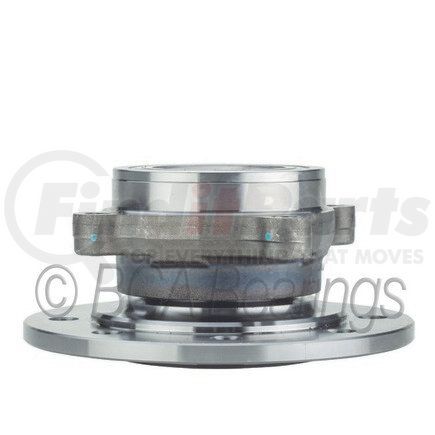

(888) 312-8812 Login SignupNTN WE61196 Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
Tap to view 8 more
$42099
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
NTN WE61196 Part Description
Manufacturer
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
NTN WE61196 Specifications
Product Attributes
| Spline Quantity | 33 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 4 |
| Wheel Pilot Diameter | 4.590 IN |
| Wheel Stud Quantity | 8 |
| Flange Shape | Modified Rectangular |
| Drive Type | Driven |
| Bearing Type | Taper |
| Flange Diameter | 208.0 MM |
| Bolt Circle Diameter | 6.500 IN |
| Bearing Generation | Gen 3 |
| Knuckle Pilot Hole Diameter | 4.48 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810611960 |
NTN WE61196 Cross References
| Brand | Part Number |
|---|---|
| Autopart International | 141144716 |
| CENTRIC | 400.67011 |
| Centric Parts | 400.67011, 40067011, 400.67011E |
| Chrysler | 05010018AA, 52008208, 5010018AA, 4746900 |
| DT Components | 515070 |
| Drive Tech America | NT515070 |
| DuraGo | 29515070 |
| Fenco | WH515070 |
| GMB | 7200326 |
| GSP | 126070 |
| MOOG Chassis Products | 515070 |
| MPA | WH515070 |
| Mevotech | H515070 |
| Parts Master | PM515070 |
| Parts Plus | P515070 |
| Power Train | PT515070 |
| Raybestos Brakes | 715070 |
| SKF | BR930451 |
| Schaeffler | 102010, FW770 |
| Timken | HA590018 |
| WJB | WA515070 |
NTN WE61196 Fits Vehicles
- Dodge Ram 3500 (1994-1999)
