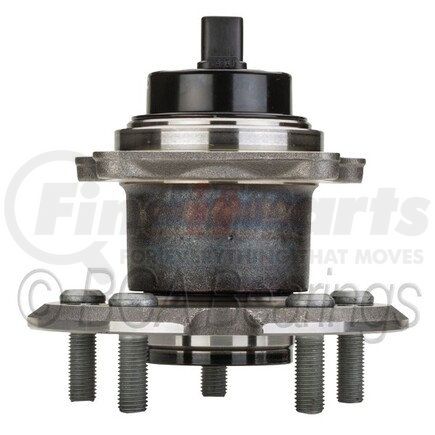

(888) 312-8812 Login SignupNTN WE60770 Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
Tap to view 9 more
$29349
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
NTN WE60770 Part Description
Manufacturer
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
NTN WE60770 Specifications
Product Attributes
| Flange Bolt Hole Quantity | 4 |
| Wheel Pilot Diameter | 2.362 IN |
| Brake Pilot Diameter | 2.441 IN |
| Wheel Stud Quantity | 5 |
| Flange Shape | Modified Rectangular |
| Drive Type | Non-driven |
| Bearing Type | Ball |
| Flange Offset | 2.717 IN |
| Flange Diameter | 152 MM |
| Bolt Circle Diameter | 4.500 IN |
| Bearing Generation | Gen 3 |
| Knuckle Bolt Circle Diameter (Inches) | 4.173 |
| Knuckle Bolt Circle Diameter (Millimeters) | 106.0 |
| Knuckle Bolt Hole Size | 10.7 MM |
| Knuckle Pilot Hole Diameter | 3.307 IN |
| Wheel Stud Size | M12X1.5 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8482105016 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810607703 |
NTN WE60770 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 0516144 |
| CENTRIC | 407.44010 |
| Centric Parts | 407.44010, 407.44010E |
| DT Components | 512280 |
| Fenco | WH512280 |
| GMB | 7700346 |
| GSP | 693280 |
| MOOG Chassis Products | 512280 |
| MPA | WH512280 |
| Mevotech | H512280 |
| Parts Master | PM512280 |
| Parts Plus | P512280 |
| Power Train | PT512280 |
| Raybestos Brakes | 712280 |
| SKF | BR930437 |
| Schaeffler | 102111, RW8280 |
| Timken | 512280 |
| Toyota | 4245008020 |
NTN WE60770 Fits Vehicles
- Toyota Sienna (2003-2010)
