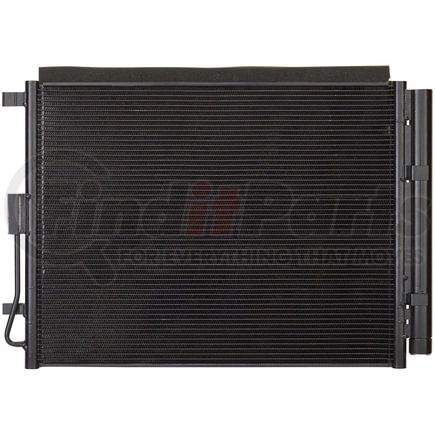

REACH COOLING 31-30004 Part Description
Manufacturer
Product Description
A/C Condenser
Application Summary
Kia: Forte Koup 2014-2017, Forte5 2014-2018
Features & Benefits
- Tube-and-fin configuration strictly follows OEM design to ensure maximum heat transfer and performance during pressure drop.
- All our tubes are zinc coated to better handle salt corrosion, especially for areas near the coast or with heavy snow.
- Our fin edges are folded for increased stability and heat disbursement properties.
- Our tubes feature a 5mm fin height which allows for a greater cooling surface.
- All brackets and fittings are made with virgin aluminum to ensure purity of material and strength in brazing bond.
- Reach condensers are designed and manufactured with OE performance and fit as our top priority. By utilizing topnotch materials, designs, and manufacturing techniques, we ensure that our condensers have the best quality and reliability.
- Reach condensers feature a parallel flow design to increase cooling efficiency.
- Our condensers are designed and manufactured with OE performance and fit as our top priority. By utilizing topnotch materials, designs, and manufacturing techniques, we ensure that our condensers have the best quality and reliability.
- Our condensers feature a parallel flow design to increase cooling efficiency.
No Shipping Restriction
condenser, condenser for car, ac condenser unit, ac condenser car, condenser ac
REACH COOLING 31-30004 Specifications
Product Attributes
| Condenser Core Type | Parallel Flow |
| Mounting Hardware Included | Seals and Gaskets not included |
| Inlet Fitting Type | Block Fitting |
| Core Width | 14.94 IN |
| Core Length | 506 MM |
| Outlet Fitting Type | Block Fitting |
| Includes Drier | Yes |
| Core Thickness | 0.47 IN |
| Core Thickness | 12 MM |
| Core Length | 19.92 IN |
| Core Width | 379.4 MM |
| Core Material | Aluminum |
| Outlet Location | Center Right |
| Inlet Diameter | 8.5 MM |
| Inlet Location | Center Right |
| Outlet Diameter | 12.9 MM |
| Inlet Diameter | 0.335 IN |
| Outlet Diameter | 0.508 IN |
Additional Information
| Warranty Special UOM | TX |
| Harmonized Tariff Code (Schedule B) | 8415909000 |
| Warranty Time UOM | MO |
| Harmonized Tariff Code (HTS) | 8415908045 |
| Warranty Distance | 24000 |
| Warranty Time | 24 |
| Country of Origin (Primary) | CN |
| UPC | 06941278918144 |
| VMRS Code | 001001062 |
REACH COOLING 31-30004 Cross References
| Brand | Part Number |
|---|---|
| APC | 230004 |
| AutoZone | 7-30004 |
| CSF | 10910 |
| CryoMAX | 0A030004PFYH, 30004 |
| DPI DataPoint Inc | 30004 |
| FVP | CON30004 |
| Factory Air | CON30004 |
| Federated | 30004 |
| GLOBAL PARTS DISTRIBUTORS | 30004C |
| Global Heat Transfer | 30004 |
| Keystone Auto Industries | CND30004 |
| Kia | 97606A2000, 97606A2001 |
| Koyo | CD820912 |
| NAPA | 730004, NC30004A |
| Nissens | 940428 |
| OSC | 30004 |
| PACIFIC BEST INC. | PC30004 |
| Partslink | KI3030133 |
| Performance Radiator | 3453 |
| Platinum Pro | CND30004 |
| RadCool | 30004 |
| Spectra Premium | 7-30004, 730004 |
| Sunbelt Radiators Inc | SBC30004 |
| TYC | 30004 |
| TYG | KA39024A |
REACH COOLING 31-30004 Fits Vehicles
- Kia Forte5 (2014-2018)
- Kia Forte Koup (2014-2017)
