RAYBESTOS 980940R Part Description
Manufacturer
Product Description

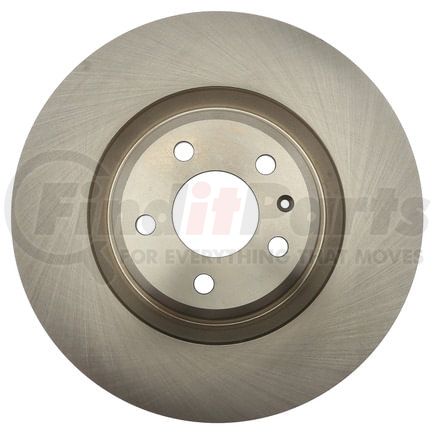

Raybestos R-Line Brake Rotor
Application Summary
2017-2013 Audi Q5 Front, 2020-2017 Porsche Macan Front, 2015-2012 Audi A6 Quattro Front, 2016-2011 Audi S4 Front, 2015-2012 Audi A7 Quattro Front, 2017-2012 Audi S5 Front, 2015-2012 Audi A6 Front, 2012 Audi A5 Quattro Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980940R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.268 IN |
| Inside Diameter | 210 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.595 IN |
| Mounting Bolt Hole Diameter | 15.1 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.177 IN |
| Nominal Thickness | 29.9 MM |
| Outside Diameter | 13.575 IN |
| Outside Diameter | 344.8 MM |
| Overall Height | 2.055 IN |
| Overall Height | 52.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213372977 |
RAYBESTOS 980940R Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH335136, YH335136C, YH335136P |
| Audi | 4G0615301, 4G0615301AF, 4G0615301G, 4G0615301M, 4G0615301Q |
| AutoZone | 78018, 78018DG, 78018DL |
| Bosch | 14011526 |
| BrakeBest | 14011526, 980940, 980940RGS |
| Brembo | 09.B970.11, 09.B970.1S |
| Centric Parts | 125.33138, 120.33138, 121.33138, 125.33138CRY, 126.33138CSL, 126.33138CSR, 126.33138SL, 126.33138SR, 127.33138CL, 127.33138CR, 127.33138L, 127.33138R, 128.33138CL, 128.33138CR, 128.33138L, 128.33138R, 227.33138L, 227.33138R, 320.33138, 320.33138C, 320.33138H |
| Dura Corp | BR34498, BR901402 |
| DuraGo | BR901402 |
| MAGMA PRODUCTS | PMR585115 |
| NAPA BRAKES | SDK6776 |
| PAGID Racing | 355123112 |
| Porsche | 95B615301B, 95B615301M |
| PowerStop | EBR1210EVC |
| Promax | 14-34498 |
| Qualis | 45585 |
| TopNotch | TN980940GEO |
| Volkswagen | 4G0615301AE |
| WORLDPAC | 1407-335136, 1427-545601 |
| Wagner Brake | BD180854E |
| Winhere | 6621358, 6621781 |
RAYBESTOS 980940R Fits Vehicles
- Porsche Macan (2015-2025)
- Audi Q5 (2013-2017)
- Audi A4 Quattro (2013)
- Audi A6 Quattro (2012-2019)
- Audi A6 (2012-2018)
- Audi A5 Quattro (2012-2013)
- Audi S5 (2012-2017)
- Audi A5 (2012-2013, 2016)
- Audi A7 Quattro (2012-2018)
- Audi S4 (2011-2016)
