(888) 312-8812 Login SignupRAYBESTOS 980128R Raybestos R-Line Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980128R Part Description
Manufacturer
Product Description

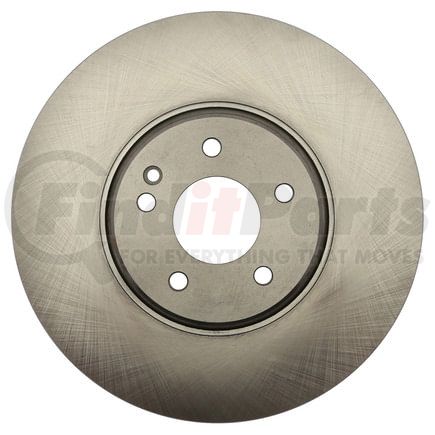

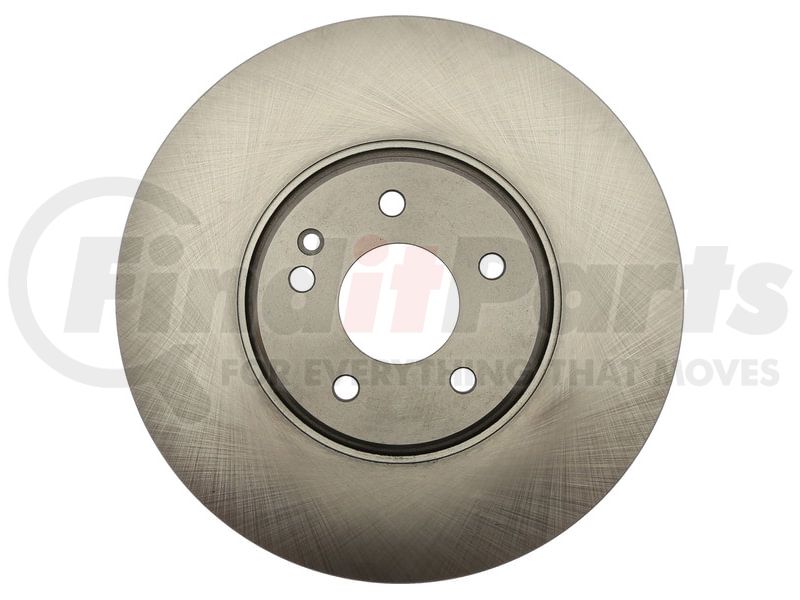

Raybestos R-Line Brake Rotor
Application Summary
2006-2005 Chrysler Crossfire Front, 2002-2000 Mercedes-Benz E430 Front, 2004-2002 Mercedes-Benz SLK32 AMG Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980128R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.157 IN |
| Discard Thickness | 29.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.517 IN |
| Mounting Bolt Hole Diameter | 13.15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.26 IN |
| Nominal Thickness | 32 MM |
| Outside Diameter | 12.992 IN |
| Outside Diameter | 330 MM |
| Overall Height | 1.831 IN |
| Overall Height | 46.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213372151 |
RAYBESTOS 980128R Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH200419, YH200901, YH200901C, YH200901P |
| AutoZone | 43157, 43157DG |
| BrakeBest | 980128, 980128RGS |
| Brembo | 09.A726.11 |
| CENTRIC | 121.35054 |
| Casting Numbers | 2104212312 |
| Centric Parts | 120.35054, 121.35054, 125.35054, 125.35054CRY, 126.35054CSL, 126.35054CSR, 126.35054SL, 126.35054SR, 127.35054CL, 127.35054L, 128.35054CL, 128.35054L |
| Chrysler | 5135475AA |
| Dura Corp | BR34277 |
| DuraGo | BR34277 |
| Mercedes-Benz | 2104212312 |
| Newtek Automotive USA | 34277 |
| Promax | 14-34277 |
| Qualis | 43157 |
| UAP | 34277 |
| Wagner Brake | BD126508 |
| Winhere | 6621007 |
RAYBESTOS 980128R Fits Vehicles
- Chrysler Crossfire (2005-2006)
- Mercedes-Benz SLK32 AMG (2002-2004)
- Mercedes-Benz E430 (2000-2002)
