RAYBESTOS 780249R Part Description
Manufacturer
Product Description

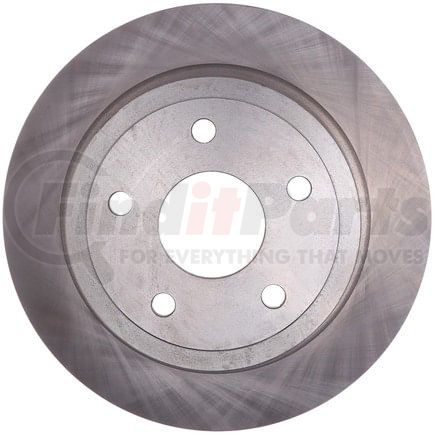

Raybestos R-Line Brake Rotor
Application Summary
2006-2004 Dodge Ram 1500 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 780249R Specifications
Product Attributes
| ABS Tone Ring Included | Yes |
| Center Hole Diameter | 3.091 IN |
| Center Hole Diameter | 78.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 1.118 IN |
| Discard Thickness | 28.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Diameter | 0.667 IN |
| Mounting Bolt Hole Diameter | 16.95 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 13.78 IN |
| Outside Diameter | 350 MM |
| Overall Height | 3.315 IN |
| Overall Height | 84.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213372205 |
RAYBESTOS 780249R Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH145750, YH145750C, YH145750P |
| AutoZone | 43155, 43155DG |
| BrakeBest | 780249, 780249RGS |
| CENTRIC | 121.67066 |
| Centric Parts | 120.67066, 121.67066, 126.67066CSL, 126.67066CSR, 126.67066SL, 126.67066SR, 127.67066CL, 127.67066CR, 127.67066L, 127.67066R |
| Chrysler | 5290345AA, 5290345AB |
| Dura Corp | BR53046, BR900968 |
| DuraGo | 900968, BR900968 |
| Dynamic Friction Company | 604-40106 |
| MAGMA PRODUCTS | PMR145174 |
| Newtek Automotive USA | 53046 |
| Promax | 14-53046 |
| Qualis | 43155 |
| UAP | 53046, R63055 |
| WABCO - Archived | PS126158 |
| WAGNER | BD126158, BD126158E |
| WORLDPAC | 1407-77135 |
| Wagner Brake | BD126158, BD126158E |
| Winhere | 6620792 |
RAYBESTOS 780249R Fits Vehicles
- Dodge Ram 1500 (2004-2006)
