(888) 312-8812 Login SignupROTOMASTER A8040102R Turbocharger
Tap to view 5 more

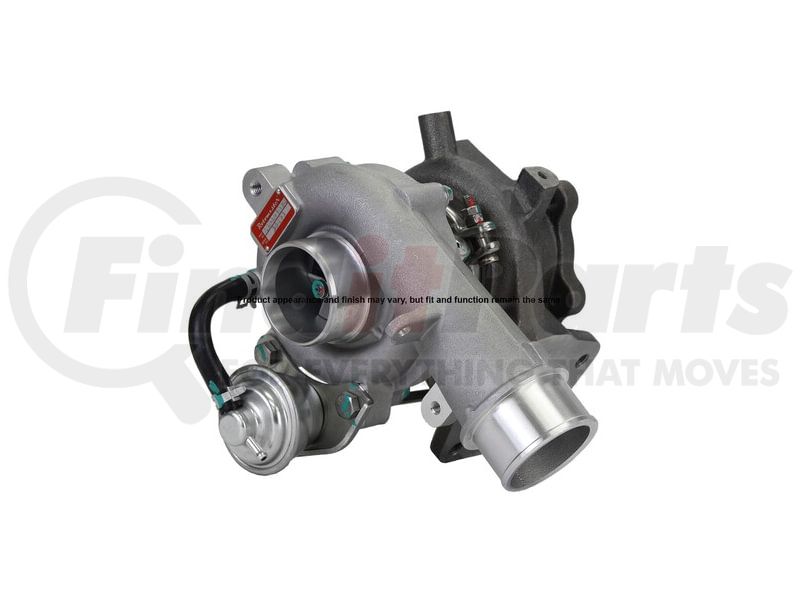

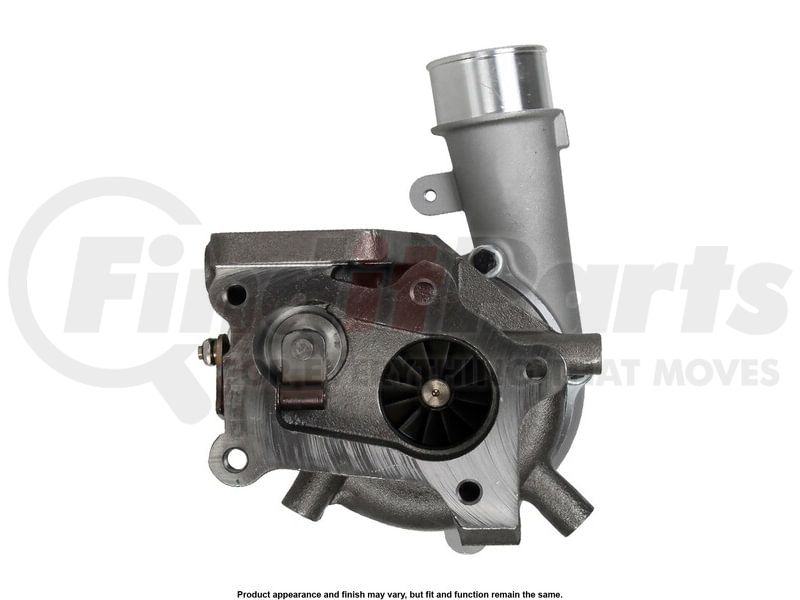

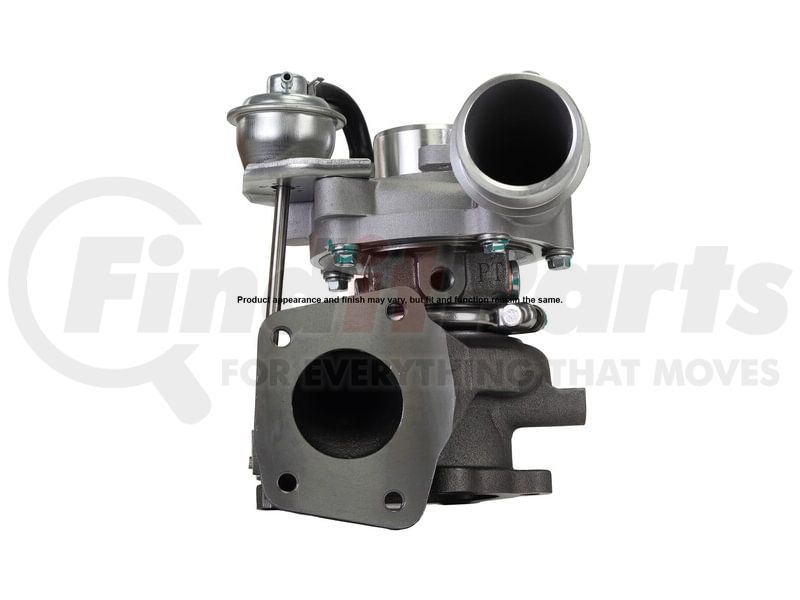

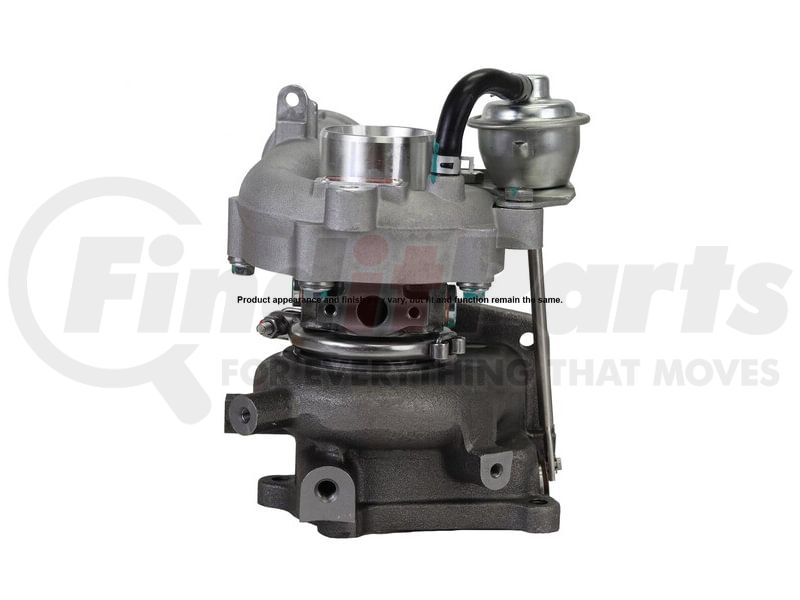

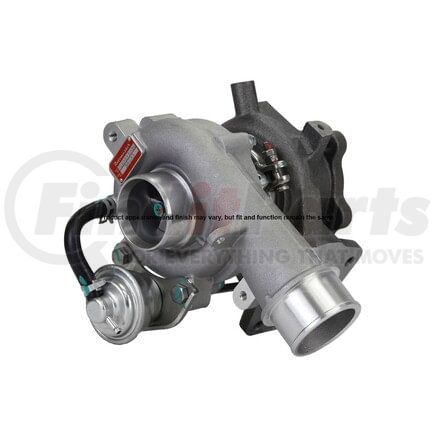

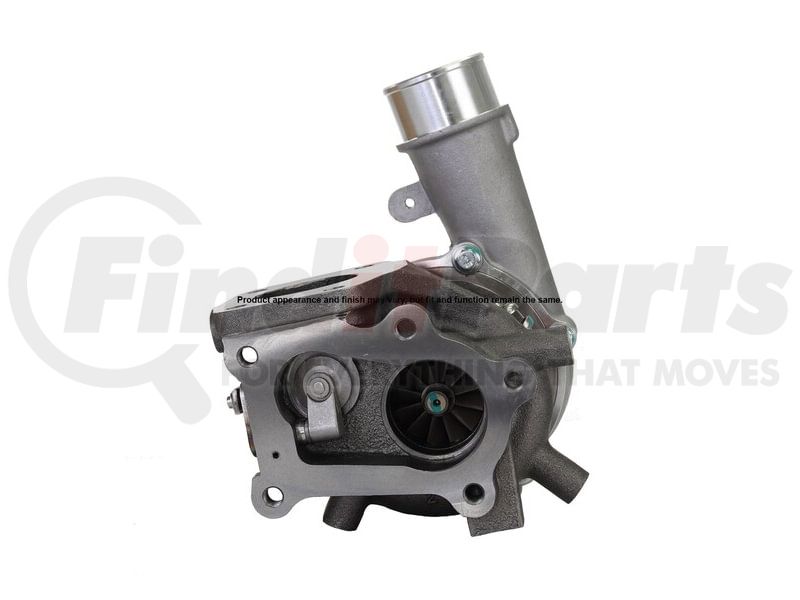

*Representative image - actual part not displayed
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
ROTOMASTER A8040102R Part Description
Manufacturer
Product Description
Turbocharger
Application Summary
Mazda 3 2013-07, 6 2007-06, CX-7 2012
Features & Benefits
- All wheels, shafts and corresponding bores are measured and controlled with specific go/no-go tolerances and renewed or replaced as needed to ensure trouble-free operation.
- Each unit is 100% disassembled and thoroughly cleaned using proprietary processes and dedicated specialized equipment.
- All components are inspected to exact standards, and renewed as appropriate to ensure that problematic areas that typically cause failure are renewed to the highest quality standards.
- 100% of rotating, journal, and thrust bearings and seals are replaced, and all mating surfaces/passages are renewed as required for a longer-lasting unit.
- Each unit comes with a pre-lube syringe to ensure product protection during installation.
- As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
- Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.
Turbocharger, Turbo, Supercharger, Compressor, Kompressor
Turbocharger
ROTOMASTER A8040102R Specifications
Product Attributes

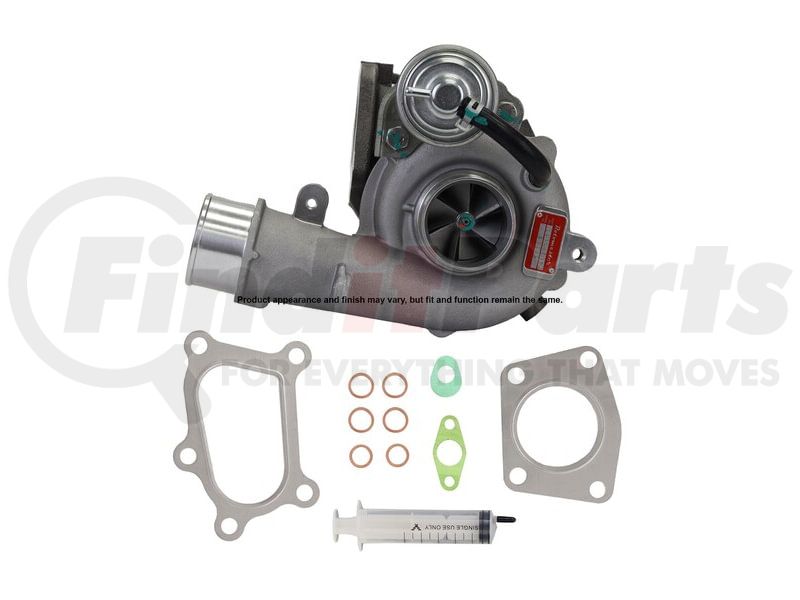

| Package Contents | Turbocharger; ; Syringe; Instruction Sheet |
| Product Condition | Remanufactured |
| Material | Steel; Aluminum |
| Mounting Hardware Included | No |
| Wastegate Actuator Included | Yes |
| Turbocharger Cooling Method | Coolant |
| Mounting Bracket Included | No |
| E-waste | No |
| FAQs | Yes, replacing the air filter and cleaning entire air and exhaust system will prevent damage to the fragile blades on the turbocharger wheels. |
| Features and Benefits | Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%. |
| Bearing Type | Journal |
| Product Description | Rotomaster remanufactured Turbochargers are available for a vast array of automotive applications to meet the growing demand for maximum vehicle performance with optimal fuel efficiency. Every Rotomaster turbocharger has been designed and tested to guaran |
| Bearing Type | Journal |
| Geometry Type | Fixed |
| Wastegate Type | Pnuematic |
| Gasket or Seal Included | Yes |
| Oil Supply Line Included | No |
| Position Sensor Included | No |
| Speed Sensor Included | No |
| Temperature Sensor Included | No |
| Exhaust Brake Included | No |
| Exhaust Manifold Included | No |
| Exhaust Outlet OD (in) | N/A |
| Exhaust Outlet OD (mm) | N/A |
| Exhaust Inlet OD (in) | N/A |
| Exhaust Inlet OD (mm) | N/A |
| Compressor Inlet OD (in) | 2.164 |
| Compressor Inlet OD (mm) | 54.96 |
| Compressor Outlet Od (in) | 2.131 |
| Compressor Outlet OD (mm) | 54.12 |
| Exhaust Side A/r Ratio | N/A |
| Compressor Side A/r Ratio | N/A |
Additional Information
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8414800500 |
| Harmonized Tariff Code (HTS) | 8414800500 |
| Canadian Harmonizing Tariff Code | 8414801000 |
| Remanufactured Part | Y |
| UPC | 00627754000126 |
| VMRS Code | 043004001 |
| UNSPSC | 26101720 |
ROTOMASTER A8040102R Cross References
| Brand | Part Number |
|---|---|
| D&W | 170-030-0005 |
| DORMAN | 917-152 |
| GLOBAL PARTS DISTRIBUTORS | 2511331 |
| MAHLE | 627TC20002100 |
| Mazda | L3Y11370ZC, L3Y31370ZC, L3YB1370ZA |
| NAPA | R804102T |
| OMEGA ENVIRONMENTAL TECHNOLOGIES | 7811331 |
ROTOMASTER A8040102R Fits Vehicles
- Mazda CX-7 (2012)
- Mazda 6 (2006-2007)
- Mazda 3 (2007-2013)
ROTOMASTER A8040102R Customer Reviews
No reviews yet
Be the first to review this product!
ROTOMASTER A8040102R Questions & Answers
No questions yet
Be the first to ask a question about this product!
