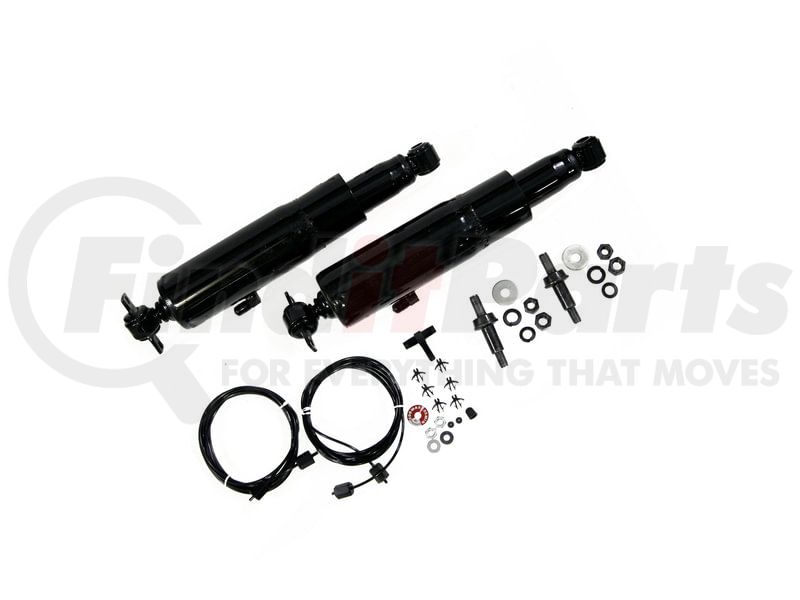

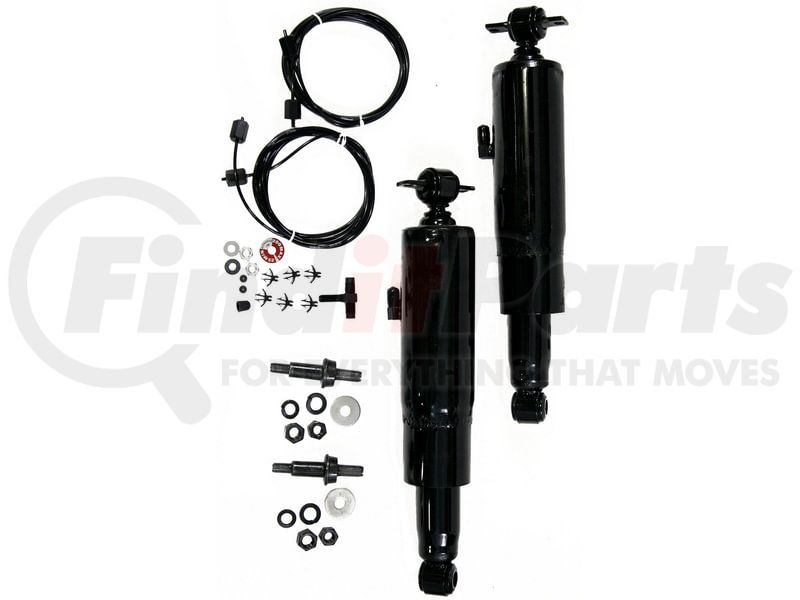

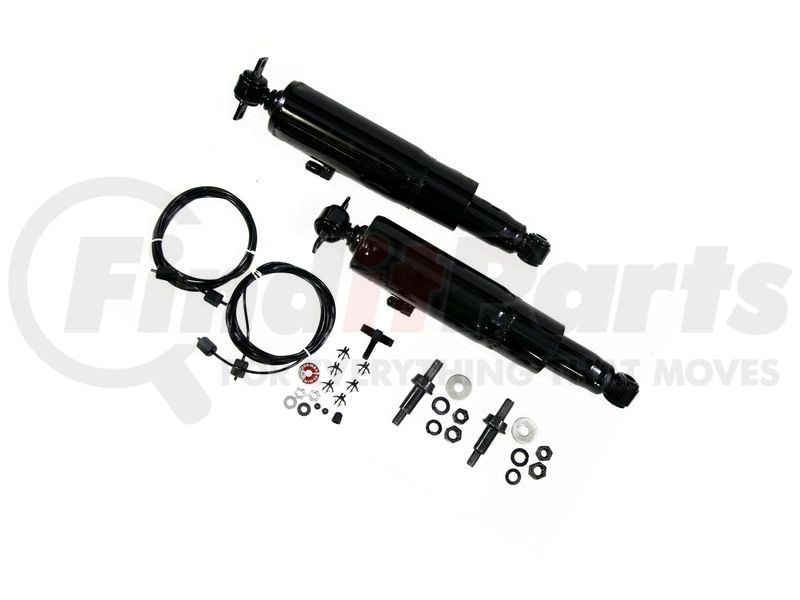

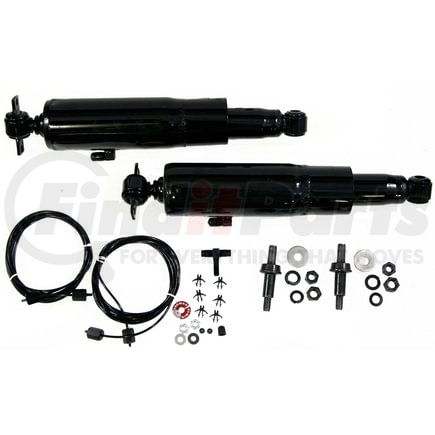

(888) 312-8812 Login SignupGABRIEL 49157 Air Adjustable Shock Absorbers
Tap to view 6 more
$16549
Limited availability at this price!
In Stock
Get it by Thursday, Feb 12
GABRIEL 49157 Part Description
Manufacturer
Product Description
Air Adjustable Shock Absorbers
Features & Benefits
- America's best-known air-adjustable shock absorbers
- Fully-adjustable air shocks help you maintain proper ride height
- Can help improve handling and reduce risk of bottoming out Up to 1,100 pounds of leveling capacity per pair (not to exceed GVWR)
- Custom-sized for a direct and simple installation and fit
- Easy to inflate at any service station, at home with an air compressor or with continued use of an existing onboard air management system
- Air pressure of 25 min – 200 max psi
- Air pressure of 25 min - 200 max psi
- Sold in pairs and includes Gabriel Air Hose Kit when applicable – Air Hose Kit can also be purchased separately
- Sold in pairs and includes Gabriel Air Hose Kit when applicable - Air Hose Kit can also be purchased separately
- Chrome-plated piston rod construction and deluxe wiper seals provide optimum sealing
- Ideal for temporarily towing boats and trailers or heavy loads
Shocks, Struts
GABRIEL 49157 Specifications
Product Attributes
| Core Color | Y |
| Boot Included | No |
| Collapsed Length (in) | 13.29 |
| Installation Hardware Included | Yes |
| Extended Length (in) | 21.37 |
| Package Contents | 2 Shocks, 4 Nuts, 2 Clamps, 2 O-ring Packing, 1 Cap, 1 Valve Core, 6 Clips, 3 Washers, 1 Seal, 2 Tub, 1 Bolt |
| Weight (lbs) | 11.60 |
| Upper Mount Code | BP14 |
| Lower Mount Code | EB1 |
| Stroke (in) | 8.08 |
| Bore | n/a |
| Dust Tube | n/a |
| Recoil Cutoff | n/a |
| Accessory Kit # | 140629,141099 |
| Mounting Codes 2024.pdf | https://gabriel.com/sites/default/files/Mounting_Codes_2025.pdf |
| Rebound (lb) | n/a |
| Compression (lb) | n/a |
| Dust Tube Material | Steel |
| Strut Mounting Type (Lower) | Eyelet |
| Strut Mounting Type (Upper) | Two Bolt Bar |
| Gas Charged | No |
| Features/Benefits 1 | America’s best-known air-adjustable shock absorber |
| Features/Benefits 2 | Ideal for temporarily towing boats and trailers or heavy loads |
| Features/Benefits 3 | Can help improve handling and can reduce the risk of bottoming out |
| Features/Benefits 4 | Up to 1,100 lbs per pair of leveling capacity not to exceed vehicle Gross vehicle Weight Rating, product does not increase payload |
Additional Information
| MSDS Sheet Number | ARP002 / RC001 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Country of Origin (Primary) | MX |
| UPC | 00043645561949 |
| VMRS Code | 016006001 |
| UNSPSC | 25172011 |
GABRIEL 49157 Cross References
GABRIEL 49157 Fits Vehicles
- Pontiac Ventura (1971-1973)
- Chevrolet Nova (1969-1973)
- Chevrolet Chevy II (1968)
- Buick Apollo (1973)
