DORMAN TO71035 Part Description
Manufacturer
Product Description

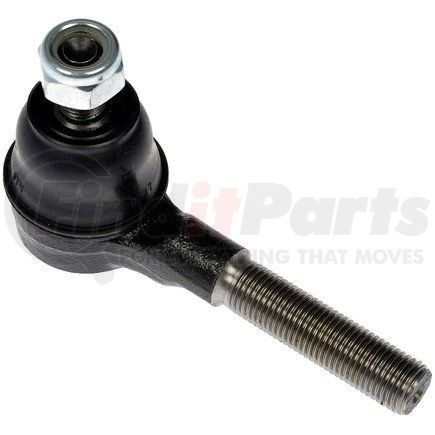

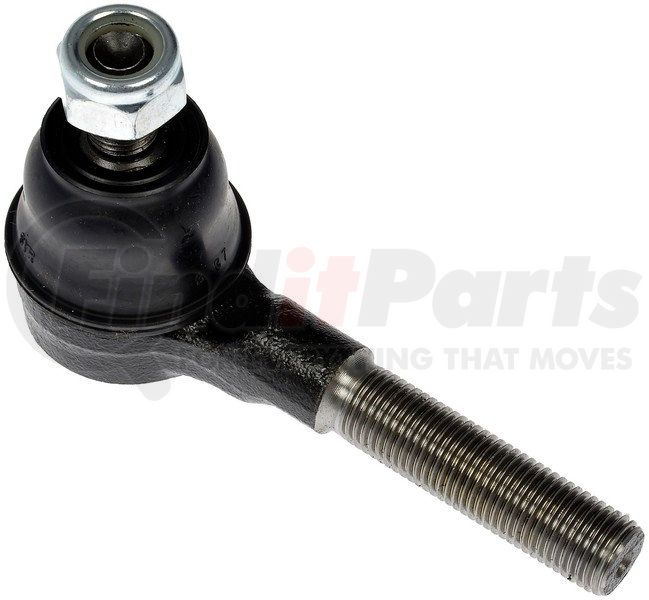

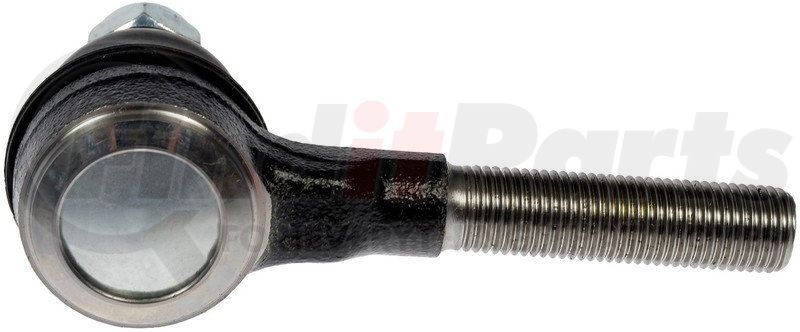

Steering Tie Rod End
Application Summary
Scion iQ 2015-12
Features & Benefits
- Trustworthy replacement - this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
- Durably designed - factory-sealed and precision-forged housing resists future corrosion
- Reliably engineered - built to decrease wear rate and ensure overall strength
- Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States
Steering, Tie, Rod, End, Ties, Rods, Ends
DORMAN TO71035 Specifications
Product Attributes
| Bearing Material | Polymer |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Regular |
| Stud Type | Taper |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Dust Boot Material | Polychloroprene |
| Tie Rod Material | Acero |
| End 1 Thread Diameter | 14 MM |
| Package Contents | 1 Nut |
| Length | 139 MM |
| Color | Noir |
| End 1 Gender | Macho |
| End 2 Gender | Macho |
| Finish | Revestidos |
| Pre-Greased | Oui |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 12 MM |
| Housing Material | Steel |
| Adjustable | No |
| Cone Outside Diameter | 13.9 MM |
| Contenidos del paquete | 1 tuerca |
| Grade Type | Standard |
| Diámetro la rosca de extremo 1 | 14 mm MM |
| Diámetro la rosca de extremo 2 | 12 mm MM |
| End 1 Thread Diameter | 14 mm MM |
| End 1 Thread Pitch | 1.5 mm mm |
| End 2 Thread Diameter | 12 mm MM |
| End 2 Thread Pitch | 1.5 mm MM |
| Espacio de la rosca del extremo 1 | 1,5mm MM |
| Espacio de la rosca del extremo 2 | 1,5mm MM |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Warranty Special | Limited |
| Warranty Special UOM | LF |
| UPC | 00669810792408 |
| VMRS Code | 011001031 |
| UNSPSC | 25174207 |
DORMAN TO71035 Cross References
DORMAN TO71035 Fits Vehicles
- Scion iQ (2012-2015)
