(888) 312-8812 Login SignupAUTOLITE 468DP Autolite 468DP Copper Resistor Spark Plug - Display Pack
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
AUTOLITE 468DP Part Description
Manufacturer
Product Description

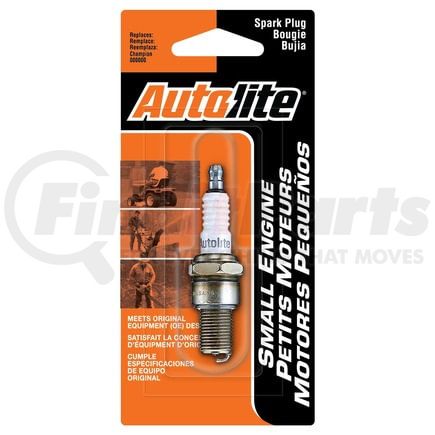

Autolite 468DP Copper Resistor Spark Plug - Display Pack
Features & Benefits
- One-Piece terminal stud provides a reliable high voltage electrical connection
- Specially engineered high nickel alloy center and ground electrode provides extended life.
- High alumina multi-rib insulator helps prevent flash-over which can lead to misfires
- It's multi-rib ceramic insulator reduces danger of flash-over while its copper-glass seal bonds the center electrode and terminal post, providing a gas-tight internal seal.
- It’s multi-rib ceramic insulator reduces danger of flash-over while its copper-glass seal bonds the center electrode and terminal post, providing a gas-tight internal seal.
- Heat-fused glass composite resistor center seal provides high performance EMI noise suppression and a 100 percent leak-proof seal
- Designed with a cold-formed steel shell precision rolled threads that provide greater durability and reduced wear.
- Solid copper core center electrode provides optimal thermal and electrical conductivity for better performance in all driving conditions
- High nickel alloy side electrode resists electrical and chemical wear providing excellent durability
- 2 year limited warranty
AUTOLITE 468DP Specifications
Product Attributes
| Resistance | 5000 82 |
| Ground Electrode Tip Design | Standard |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | 0.025 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 21 MM |
| Seat Type | Flat |
| Reach | 9 MM |
| Thread Diameter | 14 MM |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Ground Electrode Tip Material | Nickel |
| Center Electrode Design | Standard |
| Center Electrode Projection | Short Projection |
| Washer(s) Included | Yes |
| Grade Type | Regular |
| Hex Size | 13/16 IN |
| Manufacturer Heat Range | 2 |
| Reach | 0.374 IN |
| Skirt | Yes |
| Hex Type | Hex |
| Indexed | No |
| Pre-Gap Size | 0.635 MM |
| Thread Type Standard | Metric |
| Insulator Height | 1.89 IN |
| Thread Size | M14 - 1.25 |
| Washer Type | Crush |
| Thread Diameter | 14 MM |
| Insulator Height | 48 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8511100000 |
| Warranty Time | 2 |
| Warranty Time UOM | YR |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00009100268457 |
| UNSPSC | 26101732 |
AUTOLITE 468DP Cross References
AUTOLITE 468DP Fits Vehicles
- Suzuki Aerio (2002)
