DELPHI TC6060 Part Description
Manufacturer
Product Description

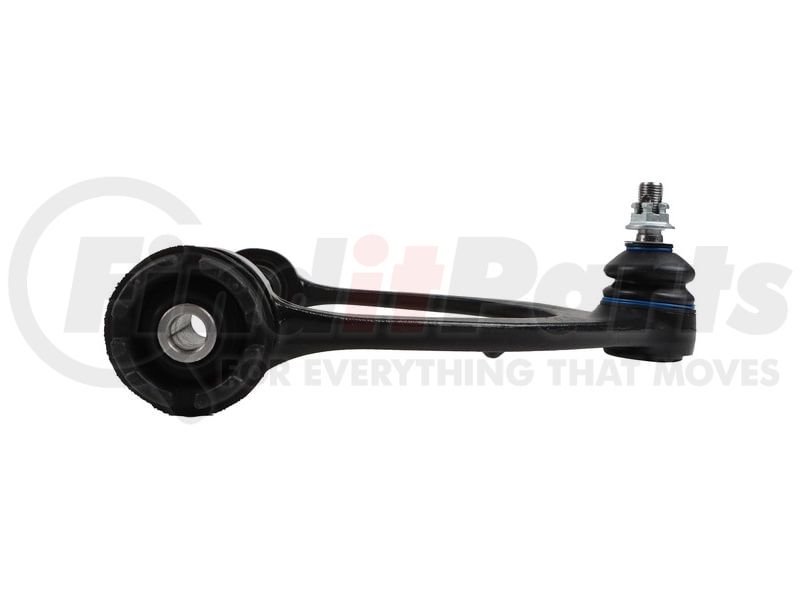

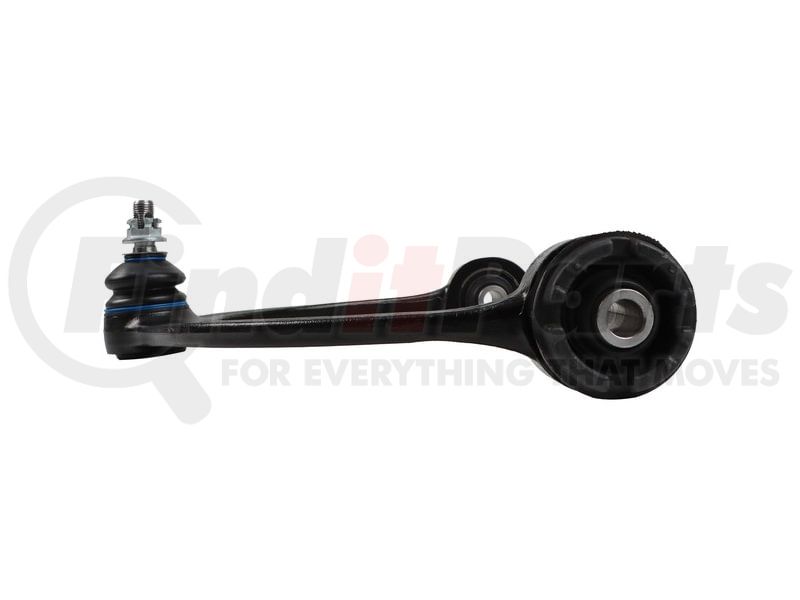

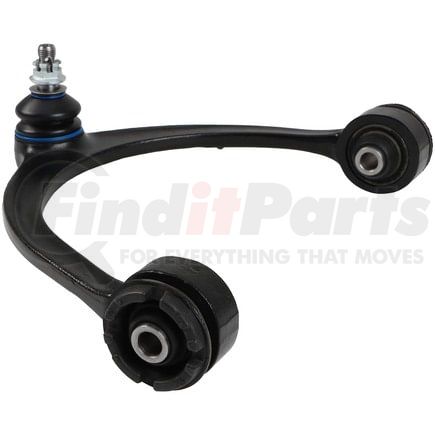

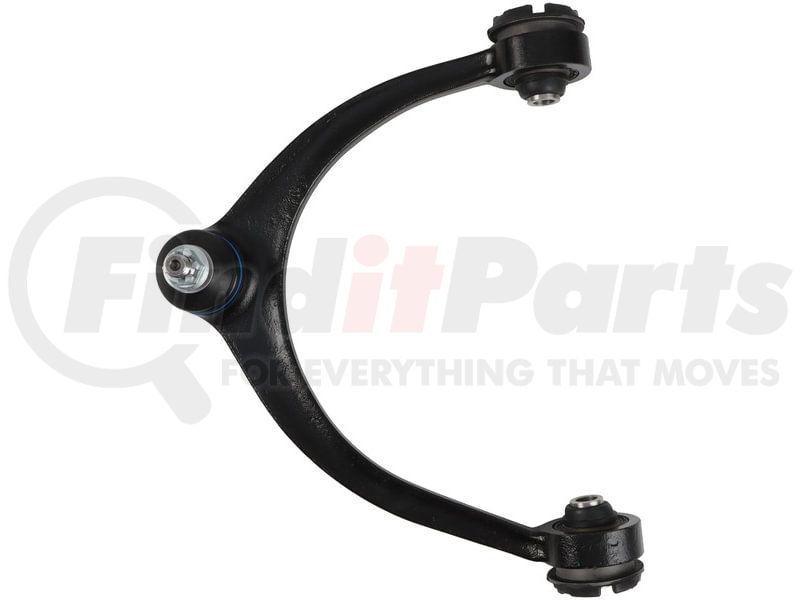

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC6060 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Upper |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Pre-Greased | Yes |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Ball Joint Included | Yes |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Mounting Hole Quantity | 1 |
| Boot Material | Chloroprene Rubber (CR) |
| Adjustable | No |
| Locking Nut Included | Yes |
| Greaseable | No |
| Control Arm Maximum Width | 288.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14.00 MM |
| Control Arm Maximum Length | 237.00 MM |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 12.30 MM |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Control Arm Maximum Width | 11.339 IN |
| Ball Joint Thread Diameter | 0.551 IN |
| Control Arm Maximum Length | 9.331 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.484 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604335031 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC6060 Cross References
DELPHI TC6060 Fits Vehicles
- Lexus LS400 (1995-2000)
