RAYBESTOS 682616FZN Part Description
Manufacturer
Product Description

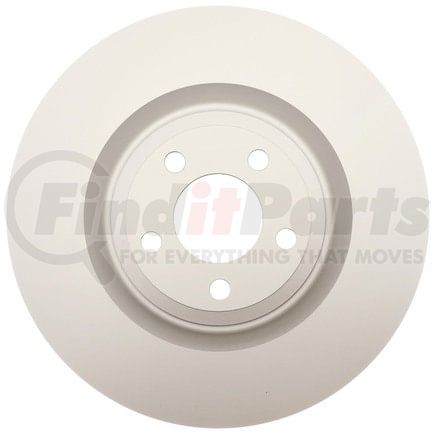

Raybestos Element3 Coated Brake Rotor
Application Summary
2022-2020 Ford Explorer Front, 2022-2020 Ford Police Interceptor Utility Front, 2023-2020 Lincoln Aviator Front
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 682616FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Center Hole Diameter | 2.799 IN |
| Center Hole Diameter | 71.1 MM |
| Construction | Full Cast |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.201 IN |
| Discard Thickness | 30.5 MM |
| Grade Type | Regular |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.969 IN |
| Inside Diameter | 227.8 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.624 IN |
| Mounting Bolt Hole Diameter | 15.85 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.26 IN |
| Nominal Thickness | 32 MM |
| Outside Diameter | 14.299 IN |
| Outside Diameter | 363.2 MM |
| Overall Height | 2.232 IN |
| Overall Height | 56.7 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213335774 |
RAYBESTOS 682616FZN Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | 682616, G15748SD, YH690448P |
| AutoZone | 75070DG, 75070DL |
| BrakeBest | 682616RGS |
| Centric Parts | 120.65164, 121.65164 |
| Dura Corp | BR901876, BR901876-01 |
| DuraGo | BR901876, BR901876-01, BR901876-03 |
| FORD | L1MZ1125B, L1MZ1125C |
| Ford | BRRF402, BRRF406, L1MZ2C026A, L1MZ2C026B, NB5Z1125A |
| MOTORCRAFT | BRRF402, BRRF406 |
| Performance Friction | 363.057.01 |
| Qualis | 47150 |
| TopNotch | TN682616GEO |
| Winhere | 6622537 |
RAYBESTOS 682616FZN Fits Vehicles
- Ford Police Interceptor Utility (2020-2025)
- Lincoln Aviator (2020-2023)
- Ford Explorer (2020-2025)
