AUTOLITE APP5702 Part Description
Manufacturer
Product Description

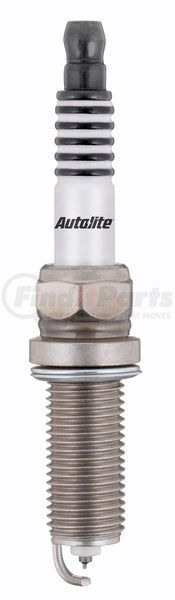

Autolite APP5702 Double Platinum Spark Plug
Features & Benefits
- Get up to 3X longer service life compared to standard copper plugs
- Engineered with a platinum-to-platinum design that prevents gap erosion, extending the life of the spark plug.
- Featuring a platinum-to-platinum firing that virtually eliminates gap erosion and reduce misfires over a longer life
- The yttrium-Enhanced Ground Electrode delivers superior heat transfer that delivers more durability under high temps and pressure for greater life.
- Full-platinum tips; platinum on both the center and side electrodes to promote reduced gap wear
- Its high alumina ceramic insulator provides optimum thermal conductivity and dielectric strength.
- Platinum enhanced high nickel alloy side electrode maintains precision gap
- The multi-rib insulator prevents flash-over.
- Heat range precisely set by Ionization Sensing Technology
- 5 year limited warranty
- Super conductive yttrium enhanced ground electrode provides superior heat transfer
AUTOLITE APP5702 Specifications
Product Attributes
| Resistance | 4000 82 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Platinum |
| Pre-Gap Size | 0.044 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 16 MM |
| Seat Type | Flat |
| Reach | 1.043 IN |
| Thread Diameter | 12 MM |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Ground Electrode Tip Material | Platinum |
| Center Electrode Design | Standard |
| Center Electrode Projection | Mid Projection |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Hex Size | 16 IN |
| Manufacturer Heat Range | 11 |
| Skirt | Yes |
| Hex Type | Hex |
| Indexed | No |
| Reach | 26.492199999999997 MM |
| Pre-Gap Size | 1.1176 MM |
| Thread Type Standard | Metric |
| Thread Size | M12 - 1.25 |
| Washer Type | Crush |
| Thread Diameter | 12 MM |
| Reach | 26 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8511100000 |
| Warranty Time | 5 |
| Warranty Time UOM | YR |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00009100268372 |
| UNSPSC | 26101732 |
AUTOLITE APP5702 Cross References
| Brand | Part Number |
|---|---|
| Bosch | W145T30, YR7MPP33 |
| Champion Spark Plug | 7019, KER8PYPB |
| General Motors | 88901008 |
| Hyundai | 18849-11070, 1884911070 |
| NGK | PLKR7A, PLKR7B8E |
AUTOLITE APP5702 Fits Vehicles
- Freightliner Sprinter 3500 (2007-2008)
- Freightliner Sprinter 2500 (2007-2008)
- Hyundai Kona (2018-2021)
- Hyundai Veloster (2019-2021)
- Kia Seltos (2021-2025)
- Hyundai Venue (2020-2024, 2026)
- Hyundai Palisade (2020-2024)
- Kia Telluride (2020-2024)
- Hyundai Santa Fe Sport (2017-2018)
- Genesis G80 (2018-2020)
- Kia Soul (2017-2024)
- Kia Forte5 (2014-2018, 2020-2024)
- Kia Optima (2016-2020)
- Kia Sportage (2016-2021)
- Hyundai Sonata (2015-2019)
- Hyundai Elantra GT (2013-2020)
- Hyundai Santa Fe XL (2013-2019)
- Hyundai Elantra Coupe (2013-2014)
- Hyundai Tucson (2014-2021)
- Kia Rondo (2014-2015)
- Kia Forte Koup (2014-2017)
- Kia Forte (2014-2024)
- Kia Cadenza (2014-2020)
- Mercedes-Benz SLK250 (2012-2015)
- Acura ILX (2013-2015)
- Hyundai Azera (2012-2017)
- Acura RDX (2013-2018)
- Honda Crosstour (2012-2015)
- Honda Civic (2012-2015)
- Hyundai Elantra (2011-2020)
- Kia Sedona (2011-2012, 2014-2021)
- Mercedes-Benz C250 (2010-2015)
- Kia Sorento (2011-2020)
- Hyundai Santa Fe (2010-2020)
- Mercedes-Benz B200 (2010-2011)
- Mercedes-Benz G550 (2010-2015)
- Acura ZDX (2010-2013)
- Acura MDX (2010-2013, 2017-2020)
- Hyundai Genesis (2010-2011)
- Honda Accord Crosstour (2010-2011)
- Mercedes-Benz ML450 (2010-2011)
- Honda CR-V (2010-2014)
- Mercedes-Benz E280 (2007)
- Hyundai Genesis Coupe (2010-2016)
- Mercedes-Benz S400 (2010-2013)
- Mercedes-Benz E300 (2008-2009)
- Mercedes-Benz S450 (2008-2011)
- Mercedes-Benz GLK350 (2010-2012)
- Acura TL (2009-2014)
- Honda Ridgeline (2009-2014)
- Acura RL (2009-2012)
- Honda Pilot (2009-2011)
- Mercedes-Benz SLK300 (2009-2011)
- Acura TSX (2009-2014)
- Mercedes-Benz GL550 (2008-2012)
- Mercedes-Benz ML550 (2008-2011)
- Honda Odyssey (2008-2010)
- Honda Accord (2008-2017)
- Mercedes-Benz C300 (2008-2012)
- Dodge Sprinter 3500 (2007-2008)
- Dodge Sprinter 2500 (2007-2008)
- Mercedes-Benz CL550 (2007-2010)
- Mitsubishi Outlander (2007-2019)
- Mercedes-Benz E550 (2007-2011)
- Mercedes-Benz CLS550 (2007-2011)
- Mercedes-Benz CLK550 (2007-2009)
- Mercedes-Benz GL450 (2007-2012)
- Mercedes-Benz SL550 (2007-2012)
- Mercedes-Benz S550 (2007-2011)
- Mercedes-Benz R350 (2006-2011)
- Mercedes-Benz SLK280 (2006-2008)
- Mercedes-Benz CLK350 (2006-2009)
- Mercedes-Benz C280 (2006-2007)
- Mercedes-Benz C230 (2006-2009)
- Mercedes-Benz C350 (2006-2011)
- Mercedes-Benz E350 (2006-2011)
- Mercedes-Benz ML350 (2006-2011)
- Mercedes-Benz SLK350 (2005-2011)
- Mercedes-Benz CL55 AMG (2003-2006)
