AUTOLITE APP5701 Part Description
Manufacturer
Product Description

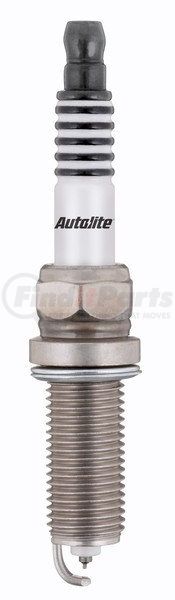

Autolite APP5701 Double Platinum Spark Plug
Features & Benefits
- Get up to 3X longer service life compared to standard copper plugs
- Engineered with a platinum-to-platinum design that prevents gap erosion, extending the life of the spark plug.
- Featuring a platinum-to-platinum firing that virtually eliminates gap erosion and reduce misfires over a longer life
- The yttrium-Enhanced Ground Electrode delivers superior heat transfer that delivers more durability under high temps and pressure for greater life.
- Full-platinum tips; platinum on both the center and side electrodes to promote reduced gap wear
- Its high alumina ceramic insulator provides optimum thermal conductivity and dielectric strength.
- Platinum enhanced high nickel alloy side electrode maintains precision gap
- The multi-rib insulator prevents flash-over.
- Heat range precisely set by Ionization Sensing Technology
- 5 year limited warranty
- Super conductive yttrium enhanced ground electrode provides superior heat transfer
AUTOLITE APP5701 Specifications
Product Attributes
| Resistance | 4000 82 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Platinum |
| Pre-Gap Size | 0.04 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 16 MM |
| Seat Type | Flat |
| Reach | 26 MM |
| Thread Diameter | 12 MM |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Ground Electrode Tip Material | Platinum |
| Center Electrode Design | Standard |
| Center Electrode Projection | Mid Projection |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Hex Size | 16 IN |
| Manufacturer Heat Range | 12 |
| Reach | 1.043 IN |
| Skirt | Yes |
| Hex Type | Hex |
| Indexed | No |
| Reach | 26.492199999999997 MM |
| Pre-Gap Size | 1 MM |
| Thread Type Standard | Metric |
| Insulator Height | 51.1 MM |
| Thread Size | M12 - 1.25 |
| Washer Type | Crush |
| Thread Diameter | 12 MM |
| Insulator Height | 2.012 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8511100000 |
| Warranty Time | 5 |
| Warranty Time UOM | YR |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00009100268396 |
| UNSPSC | 26101732 |
AUTOLITE APP5701 Cross References
AUTOLITE APP5701 Fits Vehicles
- Jeep Grand Cherokee WK (2022)
- Jeep Grand Cherokee L (2021-2023)
- Chrysler Voyager (2020-2025)
- Jeep Gladiator (2020-2025)
- Honda Passport (2019-2025)
- Ram 1500 Classic (2019-2024)
- Jeep Wrangler JK (2018)
- Honda Ridgeline (2017-2025)
- Chrysler Pacifica (2017-2025)
- Honda HR-V (2016-2022)
- Acura TLX (2015-2020)
- Acura MDX (2014-2020, 2022-2025)
- Ram ProMaster 2500 (2014-2025)
- Ram ProMaster 1500 (2014-2025)
- Ram ProMaster 3500 (2014-2025)
- Jeep Cherokee (2014-2022)
- Acura RLX (2014-2020)
- Ram 1500 (2013-2025)
- Ram C/V (2012-2015)
- Honda Pilot (2012-2022)
- Jeep Wrangler (2012-2025)
- Honda Civic (2012-2015)
- Volkswagen Routan (2011-2014)
- Acura TL (2012-2014)
- Chrysler 300 (2011-2023)
- Dodge Durango (2011-2025)
- Dodge Charger (2011-2023)
- Dodge Challenger (2011-2023)
- Dodge Avenger (2011-2014)
- Chrysler 200 (2011-2017)
- Dodge Grand Caravan (2011-2020)
- Chrysler Town & Country (2011-2016)
- Dodge Journey (2011-2019)
- Honda Odyssey (2011-2025)
- Jeep Grand Cherokee (2011-2024)
- BMW M3 (2008-2013)
- Acura RDX (2007-2012)
- BMW M6 (2006-2010)
- BMW M5 (2006-2010)
