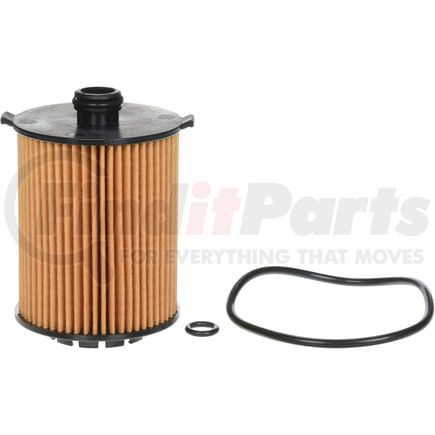

(888) 312-8812 Login SignupFRAM CH11816 Cartridge Oil Filter
Tap to view 4 more
$1449
Limited availability at this price!
In Stock
Get it by Thursday, Mar 19
FRAM CH11816 Part Description
Manufacturer
Product Description
FRAM, CH11816, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today's engines
Cartridge Oil Filter
FRAM CH11816 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 4.133 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 0.866 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring (1) Inside Diameter | 0.374 IN |
| O-ring (1) Outside Diameter | 0.484 IN |
| O-ring (1) Thickness | 0.110 IN |
| O-ring Inside Diameter | 3.267 IN |
| O-ring Outside Diameter | 3.425 IN |
| O-ring Thickness | 0.374 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 3.228 in |
| Outer Diameter Top | 3.228 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 0.944 in |
| Torque Nut | No |
| Washable | No |
| Bottom Inside Diameter | 0.866 IN |
| Outside Diameter Top | 3.228 in |
| Replaceable Filter | Yes |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100559777 |
| UNSPSC | 15121501 |
FRAM CH11816 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 041-0887 |
| Carquest | 94716, 95241 |
| Carquest Premium Filters | 94716, 95241 |
| Champ | P1023 |
| ECOGUARD | X10390 |
| EXXON/MOBIL OIL | M1C260A |
| FRAM Drive | FD11816 |
| FRAM Ultra Synthetic | XG11816 |
| LUBER-FINER | P1023 |
| MAHLE | OX1075D |
| MANN-HUMMEL FILTERS | HU8014Z |
| NAPA Gold Filters | 100241 |
| PUROLATOR | PL21350, PBL21350 |
| Parts Master | WL610241 |
| Premium Guard | PG9983EX |
| Premium Guard Extended Life | PG9983EX |
| Purolator | L21350 |
| Purolator BOSS | PBL21350 |
| Purolator Classic | L21350 |
| STP Filters | S45012XL |
| Service Champ | WP1023 |
| Valvoline | VO-174 |
| Volvo | 31372212, 31372214, 32140029 |
| WIX FILTERS | WL10241, WL10241XP |
| Warner | WP1023 |
| Warner Filters | WP1023 |
| Wix | WL10241 |
FRAM CH11816 Fits Vehicles
- Volvo S60 Cross Country (2017-2018)
- Volvo XC40 (2019-2025)
- Volvo V60 Cross Country (2017-2018, 2020-2025)
- Volvo V90 (2018-2021)
- Volvo S90 (2017-2025)
- Volvo V90 Cross Country (2017-2025)
- Volvo V60 (2015-2025)
- Volvo XC60 (2015-2025)
- Volvo XC90 (2016-2026)
- Volvo S80 (2015-2016)
- Volvo XC70 (2015-2016)
- Volvo S60 (2015-2025)
- Suzuki Aerio (2002)
