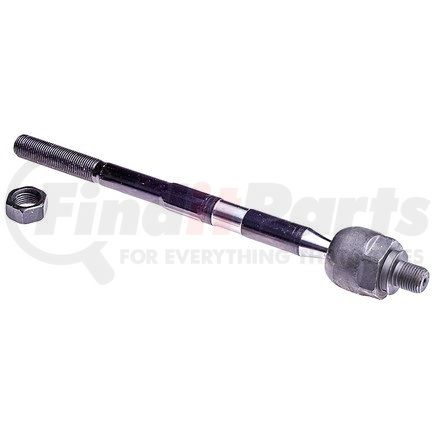

DORMAN TI91090 Part Description
Manufacturer
Product Description
Steering Tie Rod End
Application Summary
Chevrolet Colorado 2012-07, GMC Canyon 2012-07, Isuzu i-290 2007
Features & Benefits
- Trustworthy replacement - this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
- Durably designed - factory-sealed and precision-forged housing resists future corrosion
- Reliably engineered - built to decrease wear rate and ensure overall strength
- Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States
Steering, Tie, Rod, End, Ties, Rods, Ends
DORMAN TI91090 Specifications
Product Attributes
| Length | 290 MM |
| Color | Black |
| End 1 Gender | Macho |
| End 2 Gender | Male |
| Finish | Powder Coated |
| Grease Fitting Included | No |
| Mounting Hardware Included | Oui |
| Housing Material | Steel |
| Grade | Regular |
| Package Contents | 1 Steering Tie Rod End |
| Contenidos del paquete | 1 extremo del terminal de la direccion |
| Head Drive Type | Smooth |
| Thread Direction | Clockwise (Right) |
| Width | 40 MM |
| Type | Recto |
| Height | 40 MM |
| Tube Diameter | 18 MM |
| Adjustable | Yes |
| Stud Length | 16 MM |
| Cone Outside Diameter | 11.5 MM |
| Bearing Material | Metal |
| Stud Type | Threaded |
| End 1 Thread Diameter | 16 MM |
| Reinforced | Yes |
| Washer(s) Included | No |
| Pre-Greased | Yes |
| Castle Nut Included | No |
| Dust Boot Included | Non |
| Cotter Pin Included | Non |
| End 2 Thread Diameter | 16 MM |
| Grade Type | Reemplazo estandar |
| Locking Nut Included | Yes |
| Greaseable | No |
| Adjusting Sleeve Included | No |
| Steering Type | Manual |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Tie Rod Material | Acero |
| Ball Joint Included | Oui |
| Bolts Included | Non |
| Cantidad de birlos de montaje central | 1 ensamble de manguera del calentador |
| Center Mount Hole Quantity | 0 |
| Center Mount Stud Quantity | 1 |
| End 1 Attachment Type | Threaded |
| End 2 Attachment Type | Threaded |
| End 2 Type | Threaded |
| Material | Steel |
| Outside Diameter | 40 mm MM |
| Thread Pitch | 1.5 mm mm |
| Tie Rod End Thread Diameter | 16 mm mm |
| Weight | 1.61 lb LB |
| Cantidad de birlos de montaje central | 1 ensamble de manguera del calentador IN |
| Center Mount Stud Quantity | 1 IN |
| Diámetro de la rosca de la terminal de la dirección | 16mm MM |
| Diámetro la rosca de extremo 1 | 16mm MM |
| Diámetro la rosca de extremo 2 | 16mm MM |
| End 1 Thread Diameter | 16 mm MM |
| End 1 Thread Pitch | 1.5 mm mm |
| End 2 Thread Diameter | 16 mm MM |
| End 2 Thread Pitch | 1.5 mm MM |
| Espacio de la rosca del extremo 1 | 1,5mm MM |
| Espacio de la rosca del extremo 2 | 1,5mm MM |
| Paso de rosca | 1,5mm MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Country of Origin (Primary) | CN |
| Warranty Special | Limited |
| Warranty Special UOM | LF |
| UPC | 00843295064513 |
| VMRS Code | 011001031 |
| UNSPSC | 25174207 |
DORMAN TI91090 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45A1360 |
| Beck/Arnley | 1017069, 101-7069 |
| Centric Parts | 612.66035 |
| DORMAN | 531-878 |
| Delphi | TA5409 |
| Duralast | ES800301 |
| General Motors | 19152663, 19179723 |
| MEVOTECH | MS50728 |
| MOOG | EV800301 |
| MOOG Chassis Products | EV800301 |
| Mcquay-Norris | ES4348 |
| Mevotech Original Grade | GS50728 |
| Mevotech Supreme | MS50728, NI |
| QUICK STEER | EV800301 |
| SUSPENSIA | X07TR0107 |
| SYD | 1303028, 1303029 |
| TRW | JAR1195 |
| XRF | EV800301 |
| XRF Chassis | EV800301 |
DORMAN TI91090 Fits Vehicles
- GMC Canyon (2007-2012)
- Isuzu i-290 (2007)
- Chevrolet Colorado (2007-2012)
