(888) 312-8812 Login SignupDORMAN BJ85076 Suspension Ball Joint
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
DORMAN BJ85076 Part Description
Manufacturer
Product Description

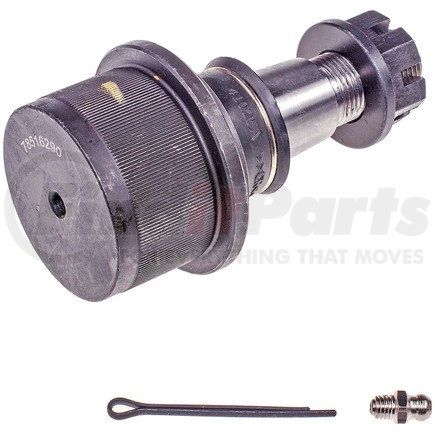

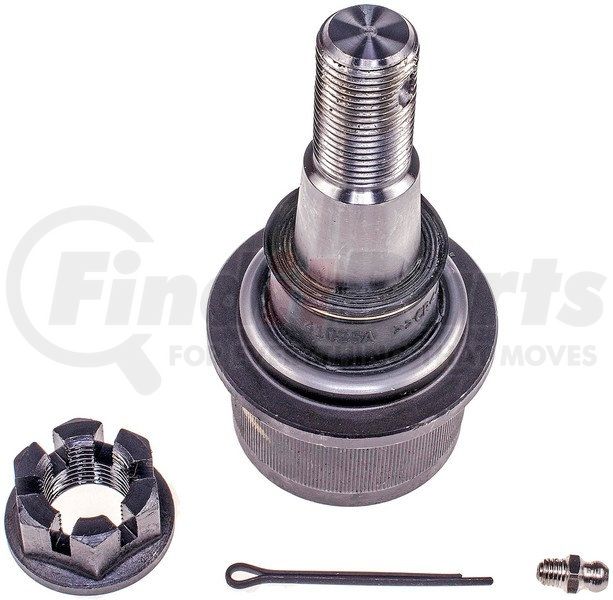

Suspension Ball Joint
Application Summary
Chevrolet 2009-05, Ford 2022-05, GMC 2009-05
Features & Benefits
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Suspension, Ball, Joint, Joints, Balls, Suspensions
DORMAN BJ85076 Specifications
Product Attributes
| Material | Acero |
| Stud Thread Diameter | 0.75 IN |
| Castle Nut Included | Oui |
| Suspension Grade Type | Reemplazo estándar |
| Cotter Pin Hole | Oui |
| Mounting Hardware Included | Oui |
| Mounting Hole Quantity | 0 |
| Adjustable | Non |
| Greaseable | Oui |
| Stud Type | Cónico |
| Mounting Type | A presión |
| Dust Boot Material | Élastomère |
| Attachment Type | Cono |
| Bearing Material | Metal |
| Bolts/Studs Included | Non |
| Housing Press Fit Diameter | 50.3 mm |
| Package Contents | 1 Cotter Pin |
| Thread Pitch | 16 |
| Length | 111 MM |
| Color | Gris |
| Width | 59 MM |
| Type | Roscado |
| Height | 85.03 MM |
| Wrench Size | 12 mm MM |
| Maximum Outside Diameter | 61 MM |
| Grease Fitting Included | Non |
| Bushings Included | Non |
| Dust Boot Included | Oui |
| Ball Joint Assembly | Oui |
| Cotter Pin Included | Non |
| Washers Included | Non |
| Nuts Included | Oui |
| Stud Thread Length | 35.5 MM |
| Bushing Quantity | 0 |
| Mounting Bolts Included | Non |
| Mount Plate Included | Non |
| Tapered Stud | Oui |
| Stud Taper Per Foot | 2 IN |
| Stud Tapered End 2 Diameter | 22 MM |
| Stud Tapered End 1 Diameter | 27.2 MM |
| Stud Thread Pitch | 1.5 MM |
| Articulación de rótula instalada | Sí |
| Ball Joint Installed | Oui |
| Bushing Included | Non |
| Contenidos del paquete | 1 chaveta |
| Diámetro del acoplado a presión de la caja | 50.3 mm mm |
| Housing Press Fit Diameter | 50.3 mm MM |
| Pernos/argollas incluidos | No |
| Stud Thread Pitch | 1.5 mm MM |
| Stud Thread Diameter | 3/4 in IN |
| Nuts Included | Oui |
| Espacio de la rosca del espárrago | 1,5mm MM |
| Diámetro de la rosca de la argolla | 3/4in IN |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special UOM | LF |
| Warranty Special | Limited |
| UPC | 00843295061154 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DORMAN BJ85076 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45D0137, 46D0137A |
| ADVANTAGE | 46D0137A |
| Centric Parts | 610.65007 |
| DORMAN | 535-629 |
| Delphi | TC5255 |
| Ford | 5C3Z3049BB, BC3Z3049A, HC3Z3049A, MCS0E3 |
| MEVOTECH | MS40506, TXMS40506 |
| MOOG | K500087 |
| MOOG Chassis Products | K500087, K500087T005 |
| Mcquay-Norris | FA2332, FA2332E |
| Mevotech Supreme | MS40506 |
| Mevotech TTX | TXMS40506 |
| Motorcraft | MCF6 |
| QUICK STEER | K500087 |
| TRW | JBJ979 |
| XRF | K500087 |
| XRF Chassis | K500087 |
DORMAN BJ85076 Fits Vehicles
- GMC C5500 Topkick (2005-2009)
- Chevrolet C4500 Kodiak (2005-2009)
- GMC C4500 Topkick (2005-2009)
- Chevrolet C5500 Kodiak (2005-2009)
- Ford F-550 Super Duty (2005-2022)
- Ford F-450 Super Duty (2005-2022)
