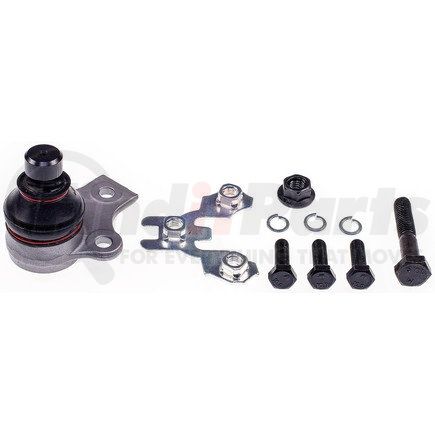

DORMAN B9603XL Part Description
Manufacturer
Product Description
Suspension Ball Joint
Application Summary
Seat 2002-01, Volkswagen 2009-88
Features & Benefits
- Extended-life construction - this ball joint is built with features to deliver smooth performance and extended durability for demanding drivers
- Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
- Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
- Premium corrosion resistance - WeatherShield external coating to resist corrosion
Suspension, Ball, Joint, Joints, Balls, Suspensions
Ball Joint
DORMAN B9603XL Specifications
Product Attributes
| Material | Acero |
| Stud Thread Diameter | 19 MM |
| Castle Nut Included | Non |
| Suspension Grade Type | Premium |
| Cotter Pin Hole | Non |
| Mounting Hardware Included | Oui |
| Mounting Hole Quantity | 3 |
| Adjustable | Non |
| Greaseable | Non |
| Stud Type | Pinchar |
| Mounting Type | Atornillado |
| Dust Boot Material | Policloropreno |
| Attachment Type | Pinchar |
| Bearing Material | Polímero |
| Bolts/Studs Included | Oui |
| Package Contents | 4 Bolts |
| Thread Pitch | M1.5 |
| Length | 111 MM |
| Color | Gris |
| Width | 59 MM |
| Type | Roscado |
| Height | 85.03 MM |
| Wrench Size | 12 mm MM |
| Maximum Outside Diameter | 61 MM |
| Grease Fitting Included | Non |
| Bushings Included | Non |
| Dust Boot Included | Oui |
| Ball Joint Assembly | Oui |
| Cotter Pin Included | Non |
| Washers Included | Non |
| Nuts Included | Oui |
| Stud Thread Length | 35.5 MM |
| Bushing Quantity | 0 |
| Mounting Bolts Included | Non |
| Mount Plate Included | Non |
| Tapered Stud | Oui |
| Stud Taper Per Foot | 2 IN |
| Stud Tapered End 2 Diameter | 22 MM |
| Stud Tapered End 1 Diameter | 27.2 MM |
| Stud Thread Pitch | 1.5 MM |
| Articulación de rótula instalada | Sí |
| Ball Joint Installed | Oui |
| Bushing Included | Non |
| Contenidos del paquete | 4 tornillos |
| Diámetro del acoplado a presión de la caja | 45mm mm |
| Housing Press Fit Diameter | 45 mm MM |
| Pernos/argollas incluidos | Sí |
| Thread Pitch | 1.5 mm mm |
| Nuts Included | Oui |
| Stud Thread Pitch | 1.5 mm MM |
| Stud Thread Diameter | 19 mm MM |
| Paso de rosca | 1,5mm MM |
| Espacio de la rosca del espárrago | 1,5mm MM |
| Diámetro de la rosca de la argolla | 19 mm MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special | Limited |
| Warranty Special UOM | LF |
| UPC | 00669810706788 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DORMAN B9603XL Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45D2173, 46D2173A |
| Beck/Arnley | 1014138, 101-4138 |
| Centric Parts | 610.33010 |
| Delphi | TC413 |
| MEVOTECH | MK9603 |
| MEYLE | 1160107154 |
| MOOG | K9603 |
| MOOG Chassis Products | K9603 |
| Mcquay-Norris | FA1749, FA1749GL |
| Mevotech Original Grade | GK9603 |
| Mevotech Supreme | MK9603 |
| QuickSteer | K9603 |
| SUSPENSIA | X52BK4314 |
| SYD | 357-407-365-A, 357-407-365A, 357407365A |
| TRW | JBJ210 |
| Volkswagen | 357407365, 357407365A |
| XRF | K9603 |
| XRF Chassis | K9603 |
DORMAN B9603XL Fits Vehicles
- Volkswagen Van (2003-2009)
- Volkswagen Derby (1995-2009)
- Seat Ibiza (2001-2002)
- Seat Cordoba (2001-2002)
- Volkswagen Cabrio (1995-2002)
- Volkswagen Corrado (1990-1992)
- Volkswagen Passat (1990-1997)
- Volkswagen Golf (1988-1999)
- Volkswagen Jetta (1988-1999)
