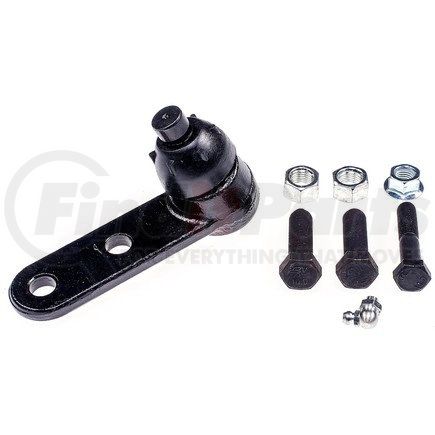

DORMAN B9479 Part Description
Manufacturer
Product Description
Suspension Ball Joint
Application Summary
Geo Storm 1993-90, Isuzu Impulse 1992-90, Isuzu Stylus 1993-91
Features & Benefits
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Suspension, Ball, Joint, Joints, Balls, Suspensions
DORMAN B9479 Specifications
Product Attributes
| Material | Acero |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Oui |
| Suspension Grade Type | Reemplazo estándar |
| Cotter Pin Hole | Oui |
| Mounting Hardware Included | Oui |
| Mounting Hole Quantity | 2 |
| Adjustable | Non |
| Greaseable | Oui |
| Stud Type | Roscado |
| Mounting Type | Con perno |
| Dust Boot Material | Élastomère |
| Attachment Type | Pinchar |
| Bearing Material | Metal |
| Bolts/Studs Included | Oui |
| Package Contents | 1 Zerk Fitting |
| Thread Pitch | M1.25 |
| Length | 111 MM |
| Color | Gris |
| Width | 59 MM |
| Type | Roscado |
| Height | 85.03 MM |
| Wrench Size | 12 mm MM |
| Maximum Outside Diameter | 61 MM |
| Grease Fitting Included | Non |
| Bushings Included | Non |
| Dust Boot Included | Oui |
| Ball Joint Assembly | Oui |
| Cotter Pin Included | Non |
| Washers Included | Non |
| Nuts Included | Oui |
| Stud Thread Length | 35.5 MM |
| Bushing Quantity | 0 |
| Mounting Bolts Included | Non |
| Mount Plate Included | Non |
| Tapered Stud | Oui |
| Stud Taper Per Foot | 2 IN |
| Stud Tapered End 2 Diameter | 22 MM |
| Stud Tapered End 1 Diameter | 27.2 MM |
| Stud Thread Pitch | 1.5 MM |
| Articulación de rótula instalada | Sí |
| Ball Joint Installed | Oui |
| Bushing Included | Non |
| Contenidos del paquete | 1 alemite |
| Diámetro del acoplado a presión de la caja | 45mm mm |
| Housing Press Fit Diameter | 45 mm MM |
| Pernos/argollas incluidos | Sí |
| Thread Pitch | M1.25 mm |
| Nuts Included | Oui |
| Stud Thread Pitch | 1.5 mm MM |
| Stud Thread Diameter | 12 mm MM |
| Paso de rosca | M1.25 MM |
| Espacio de la rosca del espárrago | 1,5mm MM |
| Diámetro de la rosca de la argolla | 12 mm MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special UOM | LF |
| Warranty Special | Limited |
| UPC | 00843295013443 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DORMAN B9479 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45D2215, 46D2215A |
| ADVANTAGE | 46D2215A |
| Centric Parts | 610.43004 |
| Delphi | TC7088 |
| Duralast | FA2130 |
| General Motors | 8944664611, 94466461 |
| MEVOTECH | MK9479 |
| MOOG | K9479 |
| MOOG Chassis Products | K9479 |
| Mcquay-Norris | FA2130, FA2130GL |
| Mevotech Original Grade | GK9479 |
| Mevotech Supreme | MK9479 |
| QUICK STEER | K9479 |
| QuickSteer | K9479 |
| SUSPENSIA | X19BJ0462 |
| TRW | JBJ1219 |
| XRF | K9479 |
| XRF Chassis | K9479 |
DORMAN B9479 Fits Vehicles
- Isuzu Stylus (1991-1993)
- Geo Storm (1990-1993)
- Isuzu Impulse (1990-1992)
