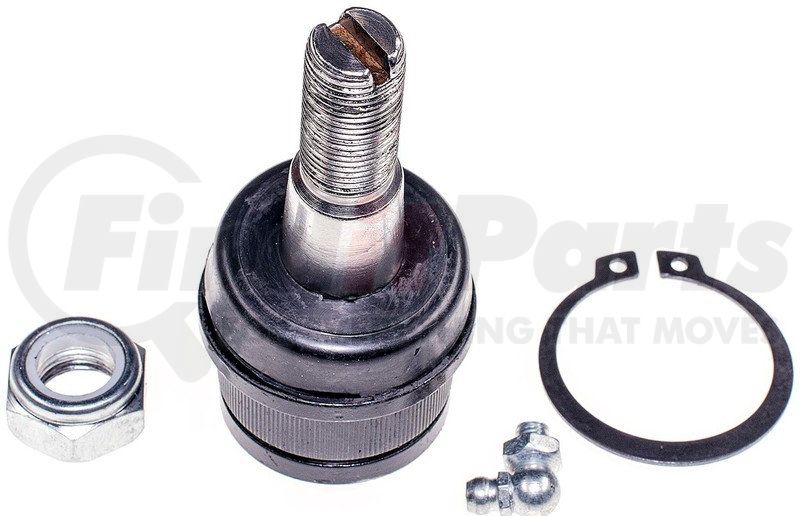

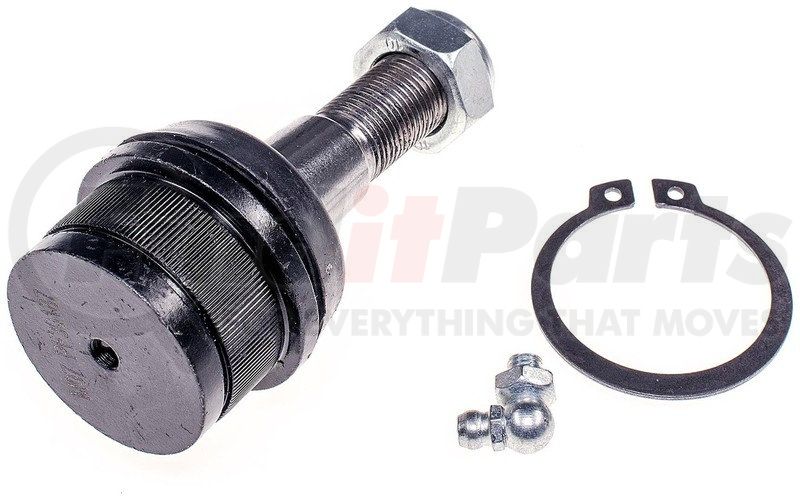

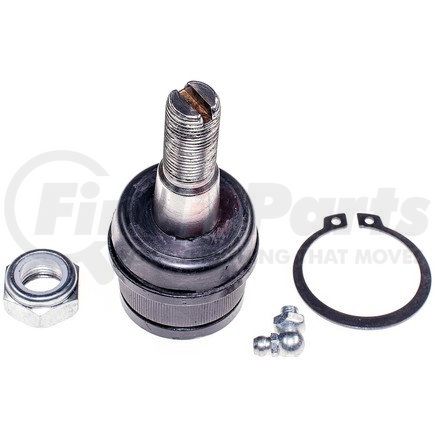

DORMAN B8414 Part Description
Manufacturer
Product Description
Suspension Ball Joint
Application Summary
Ford Bronco II 1988-87, Ford Ranger 1988-83
Features & Benefits
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Suspension, Ball, Joint, Joints, Balls, Suspensions
DORMAN B8414 Specifications
Product Attributes
| Adjustable | Non |
| Greaseable | Oui |
| Stud Type | Cónico |
| Mounting Type | A presión |
| Dust Boot Material | Policloropreno |
| Attachment Type | Cono |
| Bearing Material | Polímero |
| Bolts/Studs Included | Oui |
| Housing Press Fit Diameter | 41.6 mm |
| Package Contents | 1 Zerk Fitting |
| Thread Pitch | 18 |
| Material | Acero |
| Stud Thread Diameter | 0.625 IN |
| Castle Nut Included | Non |
| Suspension Grade Type | Reemplazo estándar |
| Cotter Pin Hole | Non |
| Mounting Hardware Included | Oui |
| Mounting Hole Quantity | 0 |
| Length | 111 MM |
| Color | Gris |
| Width | 59 MM |
| Type | Roscado |
| Height | 85.03 MM |
| Wrench Size | 12 mm MM |
| Maximum Outside Diameter | 61 MM |
| Grease Fitting Included | Non |
| Bushings Included | Non |
| Dust Boot Included | Oui |
| Ball Joint Assembly | Oui |
| Cotter Pin Included | Non |
| Washers Included | Non |
| Nuts Included | Oui |
| Stud Thread Length | 35.5 MM |
| Bushing Quantity | 0 |
| Mounting Bolts Included | Non |
| Mount Plate Included | Non |
| Tapered Stud | Oui |
| Stud Taper Per Foot | 2 IN |
| Stud Tapered End 2 Diameter | 22 MM |
| Stud Tapered End 1 Diameter | 27.2 MM |
| Stud Thread Pitch | 1.5 MM |
| Articulación de rótula instalada | Sí |
| Ball Joint Installed | Oui |
| Bushing Included | Non |
| Contenidos del paquete | 1 alemite |
| Diámetro del acoplado a presión de la caja | 41.6 mm mm |
| Housing Press Fit Diameter | 41.6 mm MM |
| Pernos/argollas incluidos | Sí |
| Thread Pitch | 18 mm mm |
| Nuts Included | Oui |
| Stud Thread Pitch | 1.5 mm MM |
| Stud Thread Diameter | 5/8 in IN |
| Paso de rosca | 18mm MM |
| Espacio de la rosca del espárrago | 1,5mm MM |
| Diámetro de la rosca de la argolla | 5/8in IN |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special UOM | LF |
| Warranty Special | Limited |
| UPC | 00843295012019 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DORMAN B8414 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45D0054, 46D0054A |
| ADVANTAGE | 46D0054A |
| C-Tek | 611.65031 |
| Centric Parts | 610.65031, 611.65031 |
| DORMAN | 536-506 |
| Delphi | TC1859 |
| Ford | E3TZ3049A |
| MEVOTECH | MK8414 |
| MOOG | K8414 |
| MOOG Chassis Products | K8414 |
| Mcquay-Norris | BJ1460FT, FA1460E, FA1460FT |
| Mevotech Original Grade | GK8414 |
| Mevotech Supreme | MK8414 |
| QUICK STEER | K8414 |
| QuickSteer | K8414 |
| SKP | SK8414 |
| SUSPENSIA | X15BJ0607 |
| SYD | K-8414, K8414 |
| Skyward Automotive Products LLC | SK8414 |
| XRF | K8414 |
| XRF Chassis | K8414 |
DORMAN B8414 Fits Vehicles
- Ford Bronco II (1987-1988)
- Ford Ranger (1983-1988)
