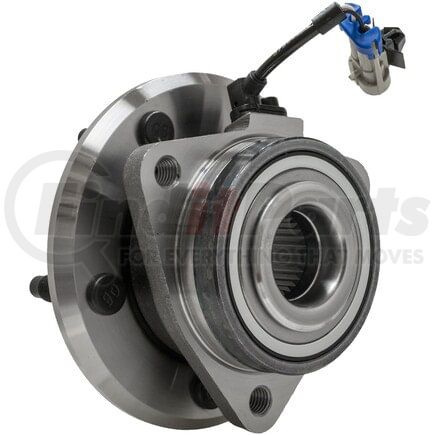

(888) 312-8812 Login SignupMPA ELECTRICAL WH513276 Wheel Bearing and Hub Assembly
Tap to view 3 more
$11949
Limited availability at this price!
In Stock
Get it by Monday, Mar 16
MPA ELECTRICAL WH513276 Part Description
Manufacturer
Product Description
Wheel Bearing and Hub Assembly
Application Summary
Chevrolet Captiva Sport 2015-2008, Equinox 2009-2007, Pontiac Torrent 2009-2007, Saturn Vue 2010-2008, Suzuki XL-7 2009-2007
Features & Benefits
- Premium, high-carbon steel alloys improve load bearing capabilities and strength.
- Induction hardened, micro-finished races improve bearing durability and load capacity.
- Application-specific ABS sensors included for perfect vehicle control system signaling.
Wheel Bearing and Hub Assembly
MPA ELECTRICAL WH513276 Specifications
Product Attributes
| Material | Steel |
| Flange Diameter Inch | 5.95 |
| Wheel Stud Size MM | M12 x 1.5 |
| Spline Quantity | 30 |
| Wiring Harness Included | No |
| Greaseable | No |
| Hub Pilot Diameter Inch | 3.57 |
| Gasket or Seal Included | Yes |
| Product Condition | New |
| Stud Quantity | 5 |
| Spline Quantity | 30 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 3 |
| Wheel Studs Included | Yes |
| Flange Shape | Triangle |
| Anti Lock Braking System Type | Sensor |
| Anti-Lock Brake Sensor Included | Yes |
| Flange Bolt Hole Diameter | 4.566 IN |
| Flange Offset | 1.656 IN |
| Flange Diameter | 5.95 IN |
| Bolt Circle Diameter | 4.530 IN |
| Bolt Circle Diameter | 115.062 MM |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (HTS) | 8708995800 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00029175923938 |
MPA ELECTRICAL WH513276 Cross References
MPA ELECTRICAL WH513276 Fits Vehicles
- Chevrolet Captiva Sport (2008-2015)
- Saturn Vue (2008-2010)
- Pontiac Torrent (2007-2009)
- Suzuki XL-7 (2007-2009)
- Chevrolet Equinox (2007-2009)
