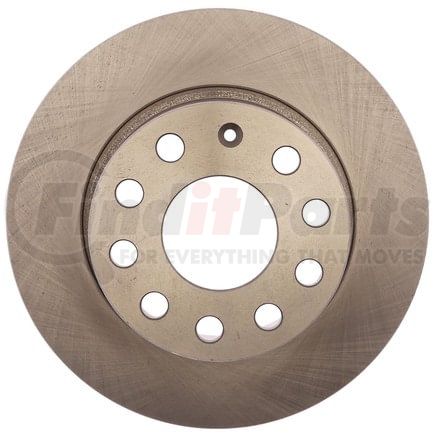

(888) 312-8812 Login SignupRAYBESTOS 982325R Raybestos R-Line Brake Rotor
$3049
Limited availability at this price!
1 Day Lead Time
Get it by Wednesday, Mar 11
RAYBESTOS 982325R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
2021-2019 Volkswagen Jetta Rear, 2023-2021 Volkswagen Taos Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 982325R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.6 IN |
| Center Hole Diameter | 65.0 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.3 IN |
| Discard Thickness | 8.0 MM |
| Harmonize Code | 8708.30.5030 |
| Nominal Thickness | 0.4 IN |
| Nominal Thickness | 10.0 MM |
| Outside Diameter | 10.7 IN |
| Outside Diameter | 272.0 MM |
| Overall Height | 2.3 IN |
| Overall Height | 58.2 MM |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Inside Diameter | 6.9 IN |
| Inside Diameter | 174.0 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.4 IN |
| Mounting Bolt Hole Circle Diameter | 112.0 MM |
| Mounting Bolt Hole Diameter | 0.6 IN |
| Mounting Bolt Hole Diameter | 15.0 MM |
| Mounting Bolt Hole Quantity | 5 |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Bearings Included | No |
| Construction | Full Cast |
| Grade Type | Regular |
| Maximum Brake Diameter (Discard) | 271.9 MM |
| Rust Resistant Coating | Yes |
| Weight [cntrc] Kgs | 4.1 |
| Weight [cntrc] Lbs | 9.1 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213331844 |
RAYBESTOS 982325R Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH655643P |
| AutoZone | 70032DL |
| Autoxtra | AX901772, AX901772P |
| BrakeBest | 912253RGS |
| Brembo | 08.D425.11 |
| CENTRIC | 121.33157, 125.33157, 128.33157, 128.33157L, 128.33157R, 228.33157 |
| Centric Parts | 121.33157, 125.33157, 128.33157L, 128.33157R, 128.33157, 228.33157 |
| Dura Corp | BR901772, BR901772-01 |
| DuraGo | BR901772, BR901772-01 |
| Dynamic Friction Company | 604-73082, 604-74059 |
| Qualis | 45996, 95930 |
| TopNotch | TN982325GEO |
| VOLKSWAGEN | 5Q0615601, 5Q0615601B, 5QD615601C, 5QN615601A |
| WORLDPAC | 1407-655643, 1427-655627 |
| Winhere | 6612253 |
RAYBESTOS 982325R Fits Vehicles
- Audi Q7 (2021)
- Volkswagen Taos (2021-2024)
- Volkswagen Jetta (2019-2025)
