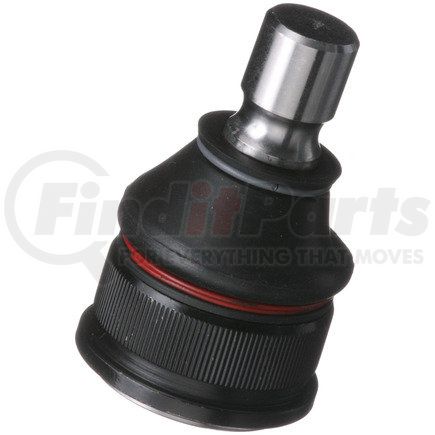

(888) 312-8812 Login SignupDELPHI TC5780 Ball Joint
Tap to view 2 more
$3199
Limited availability at this price!
In Stock
Get it by Thursday, Mar 5
DELPHI TC5780 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5780 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Color | Black |
| Stud Thread Diameter | 0.71 IN |
| Stud Thread Diameter | 18 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 45.00 MM |
| Type | Grooved |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | No |
| Washers Included | No |
| Height | 2.64 IN |
| Height | 67.00 MM |
| Nuts Included | No |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Maximum Outside Diameter | 45.00 MM |
| Length | 77.80 MM |
| Pre-Greased | Yes |
| Outside Diameter | 45.00 MM |
| Bearing Type | Plastic |
| Stud Thread Length | 18.60 MM |
| Boot Color | Black |
| Stud Type | Grooved |
| Mount Plate Included | No |
| Tapered Stud | No |
| Retaining Ring Included | Yes |
| Maximum Outside Diameter | 1.77 IN |
| Length | 3.06 IN |
| Width | 1.77 IN |
| Outside Diameter | 1.77 IN |
| Stud Thread Length | 0.73 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604321263 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5780 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-5513, 102-5514, 102-5549 |
| Dorman | 520-867, 520-868, 520-870, 523-619, 523-620, BJ65215, BJ65215XL, CB65004, CB65004PR |
| MAS Industries | CB65003, CB65003PR, CB65004, CB65004PR, CB65024, CB65024PR |
| MEVOTECH | MS76501, TXMS76501 |
| MOOG | K500136 |
| MOOG Chassis Products | K500136, RK620337, RK620340 |
| Mazda | GD7A-34-300A, GD7A-34-300B, GD7A-34-350A, GG2A-34-300C, GG2A-34-350C, LC62-34-300C |
| N/A | TXMS76501, BJ65215, JBJ822, MS76501, GS76501, BJ65215XL, 610.45008 |
DELPHI TC5780 Fits Vehicles
- Mazda MPV (2000-2006)
- Mazda 626 (1998-2002)
