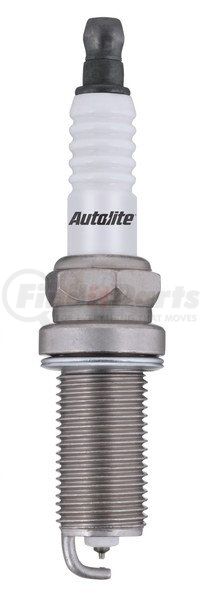

AUTOLITE 5324 Autolite 5324 Copper Resistor Spark Plug

5324 by AUTOLITE - Autolite 5324 Copper Resistor Spark Plug
AUTOLITE
Tap to view 1 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

AUTOLITE 5324 Part Description

Manufacturer

AUTOLITE

Product Description

Autolite 5324 Copper Resistor Spark Plug

Features & Benefits

  • One-Piece terminal stud provides a reliable high voltage electrical connection
  • The copper core center electrode aids in thermal control and improves resistance to fouling.
  • High alumina multi-rib insulator helps prevent flash-over which can lead to misfires
  • Its specially engineered high nickel alloy center and ground electrode provides extended life.
  • Heat-fused glass composite resistor center seal provides high performance EMI noise suppression and a 100 percent leak-proof seal
  • The high alumina multi-rib ceramic insulator provides thermal conductivity and superior insulation for increased strength.
  • Solid copper core center electrode provides optimal thermal and electrical conductivity for better performance in all driving conditions
  • Designed with a nickel-plated shell that is corrosion resistant to provide increased durability for extended periods.
  • High nickel alloy side electrode resists electrical and chemical wear providing excellent durability
  • 2 year limited warranty

AUTOLITE 5324 Specifications

Product Attributes

Resistance 4000 82
Ground Electrode Tip Design Standard
Ground Electrode Core Material Nickel
Electrical Terminal Type Non-Removable Nut
Center Electrode Core Material Copper
Center Electrode Tip Material Nickel
Pre-Gap Size 0.044 IN
Ground Electrode Quantity 1
Hex Size 16 MM
Seat Type Flat
Reach 1.05 IN
Thread Diameter 14 MM
Insulator Material Ceramic
Resistor Type Yes
Ground Electrode Tip Material Nickel
Center Electrode Design Standard
Center Electrode Projection Mid Projection
Washer(s) Included Yes
Grade Type Regular
Hex Size 5/8 IN
Manufacturer Heat Range 11
Skirt Yes
Hex Type Hex
Indexed No
Reach 26.669999999999998 MM
Pre-Gap Size 1.1176 MM
Thread Type Standard Metric
Insulator Height 2.006 IN
Reach 27 MM
Thread Size M14 - 1.25
Washer Type Crush
Thread Diameter 14 MM
Insulator Height 51 MM

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8511100000
Warranty Time 2
Warranty Time UOM YR
Harmonized Tariff Code (HTS) 8511100000
UPC 00009100268761
UNSPSC 26101732

AUTOLITE 5324 Cross References

BrandPart Number
BoschHR10HC
Champion Spark Plug446
DENSO Auto Parts4505
E3E3.68
General Motors5614001
NGK5018, LFR5A-11, LFR6A-11, LFR6C-11

AUTOLITE 5324 Fits Vehicles

  • Dodge Durango (2021, 2023-2024)
  • Yamaha XBT1800 212 Limited S (2017-2018)
  • Yamaha XBT1800 212 Limited (2017-2018)
  • Yamaha XBT1800 212X (2017-2018)
  • Jeep Grand Cherokee (2018-2021)
  • Yamaha SAT1800 242X E Series (2016-2018)
  • Yamaha SAT1800 242 Limited S E Series (2016-2018)
  • Yamaha SH1800 190 FSH (2016-2018)
  • Yamaha SAT1800 242 Limited E Series (2016-2017)
  • Yamaha SH1800 190 FSH Deluxe (2016-2018)
  • Yamaha VX1800 WaveRunner VX Cruiser HO (2016-2018)
  • Yamaha SH1800 190 FSH Sport (2016-2018)
  • Yamaha SAT1800 SX240 HO (2015-2018)
  • Yamaha SAT1800 242 Limited (2015-2016)
  • Yamaha SAT1800 242 Limited S (2015-2018)
  • Yamaha SAT1800 AR240 HO (2015-2018)
  • Yamaha FC1800A WaveRunner FX Cruiser SVHO (2014)
  • Yamaha RX1800 AR190 (2014-2018)
  • Yamaha SXT1800 242 Limited S (2014)
  • Yamaha XAT1800 212SS (2014-2016)
  • Yamaha SXT1800 SX240 HO (2014)
  • Yamaha RM1800 SX192 (2014-2016)
  • Yamaha RM1800 AR192 (2014-2016)
  • Yamaha SXT1800 AR240 HO (2014)
  • Yamaha SXT1800 242 Limited (2014)
  • Yamaha XAT1800 212X (2014-2016)
  • Yamaha RX1800 SX190 (2013-2018)
  • Dodge Challenger (2011-2023)
  • Dodge Charger (2015-2023)
  • Yamaha VX1800AK WaveRunner VXR (2014-2018)
  • Yamaha VX1800K WaveRunner VXS (2014-2016)
  • Yamaha FB1800A WaveRunner FX Cruiser HO (2012-2014)
  • Yamaha FB1800 WaveRunner FX HO (2012-2014)
  • Yamaha FA1800 WaveRunner FX SHO (2013-2014)
  • Yamaha FA1800A WaveRunner FX Cruiser SHO (2013-2014)
  • BMW 328i xDrive (2009-2010)
  • BMW 528i xDrive (2009-2010)
  • BMW 128i (2008-2010)
  • BMW 528i (2008-2010)
  • BMW 528xi (2008)
  • BMW X5 (2007-2010)
  • BMW X3 (2007-2010)
  • BMW 328i (2007-2010)
  • BMW 328xi (2007-2008)
  • BMW Z4 (2006-2010)
  • BMW 325xi (2006)
  • BMW 330xi (2006)
  • BMW 330Ci (2006)
  • BMW 525xi (2006-2007)
  • BMW 530i (2006-2007)
  • BMW 530xi (2006-2007)
  • BMW 525i (2006-2007)
  • BMW 325i (2006)
  • BMW 330i (2006)
