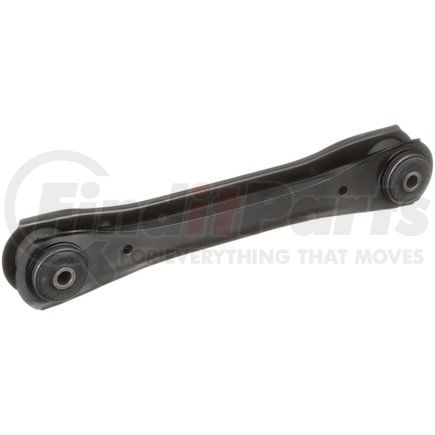

DELPHI TC6186 Part Description
Manufacturer
Product Description
Control Arm
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Control arms utilize robot welding for consistent performance and quality
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC6186 Specifications
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Bushing Color | Black |
| Length | 482.70 MM |
| Length | 19.00 IN |
| Construction | Stamped |
| Color | Black |
| Pre-Greased | No |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Included | No |
| Control Arm Material | Steel |
| Width | 82.70 MM |
| Mounting Hardware Included | No |
| Height | 66.60 MM |
| Bushing Material | Rubber |
| Distance Between Mounting Holes | 402.20 MM |
| Distance Between Bushings | 402.20 MM |
| Distance Between Bushings | 15.83 IN |
| Bushing Inside Diameter | 0.56 IN |
| Bushing Inside Diameter | 14.20 MM |
| Bushing Length | 2.62 IN |
| Bushing Length | 66.60 MM |
| Finish | Painted |
| Shape | Straight |
| Grade Type | Standard Replacement |
| Adjustable | No |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | US |
| UPC | 00689604350690 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC6186 Cross References
DELPHI TC6186 Fits Vehicles
- Jeep Cherokee (1995-1999)
