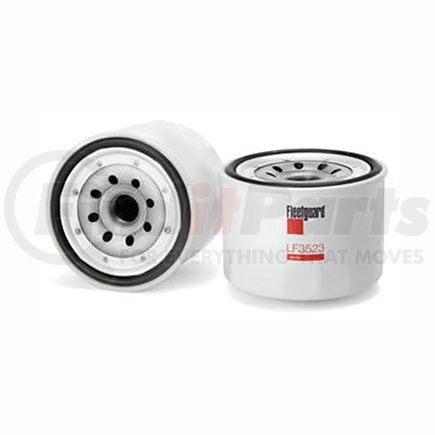

(888) 312-8812 Login SignupFLEETGUARD LF3523 Engine Oil Filter - 3.22 in. Height, 4.18 in. (Largest OD)
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FLEETGUARD LF3523 Part Description
FLEETGUARD LF3523 Specifications
Product Attributes
| Height | 3.22 in. (81.79 mm) |
| Gasket Outside Diameter | 3.92 in. (99.57) |
| Notes | By-Pass, Spin-On |
| Outside Diameter (Largest) | 4.18 in. (106.17 mm) |
| Thread Size | M20 x 1.5-6H |
| BPV Setting | No |
| Largest Od | 4.181 inch |
| Overall Height | 81.9 mm |
| Thread Diameter | 20 mm |
| Thread Form | Metric |
| Thread Pitch | 1.5 mm |
Additional Information
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Time | 1 |
| Warranty Time UOM | YR |
FLEETGUARD LF3523 Cross References
| Brand | Part Number |
|---|---|
| BALDWIN | B201-S |
| Coopers | Z872 |
| Donaldson | IO340, P550383 |
| FRAM | P3828 |
| Isuzu | 8941145850, 8940402590, 8941145851, 8941523860, 8942402590, 8943402590, 8943432050, 8943604180, 8971145850 |
| LUBER-FINER | LFP8939, LFP8938 |
| MICRO | T6731, T6738, T8210 |
| Ryco | Z155X |
| VIC | C506 |
| WIX FILTERS | 51839 |
FLEETGUARD LF3523 Customer Reviews
No reviews yet
Be the first to review this product!
FLEETGUARD LF3523 Manufacturer Information
Since 1987, Fleetguard® has been one of the world's leaders in filtration solutions for both on- and off-highway applications. Whether it's air, fuel, oil, or hydraulic filtration, Fleetguard filters provide superior protection against contaminants for engines and sensitive equipment in the agriculture, construction, commercial vehicle, marine, mining, and power generation industries. Each filter is fitted with high-quality filter media for longer service life as well as a more compact design to accommodate shrinking engine compartments found in modern vehicles. All products also undergo extensive performance tests and strict quality control procedures to ensure durability and consistent performance, even in the most demanding operating conditions.
