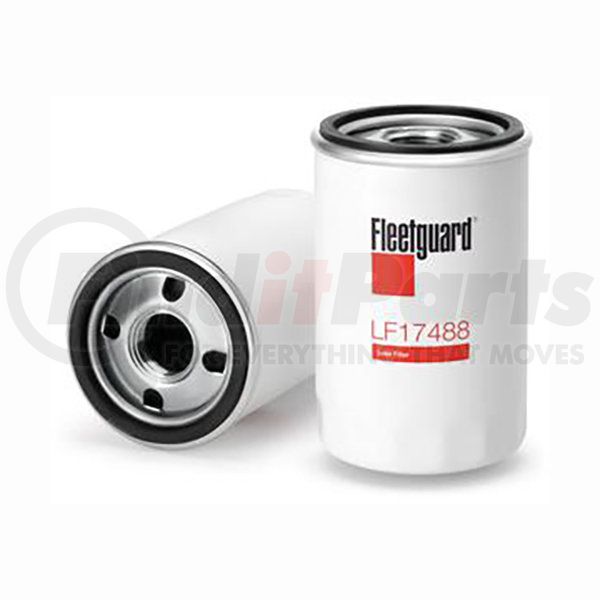

(888) 312-8812 Login SignupFLEETGUARD LF17488 Engine Oil Filter - 4.82 in. Height, 3.09 in. (Largest OD)
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FLEETGUARD LF17488 Part Description
FLEETGUARD LF17488 Specifications
Product Attributes
| Height | 4.82 in. (122.43 mm) |
| Burst Pressure | 217.5 psi (1500 kPa) |
| Bypass Relief Valve | Yes |
| Gasket Inside Diameter | 2.42 in. (61.47) |
| Gasket Outside Diameter | 2.82 in. (71.63) |
| Flow Direction | Outside In |
| Notes | Spin-On |
| Outside Diameter (Largest) | 3.09 in. (78.49 mm) |
| Standpipe | No |
| Thread Size | M25 x 12 UN-2B INT |
| BPV Setting | Yes |
| Largest Od | 78.5 mm |
| Overall Height | 4.823 inch |
| Thread Diameter | 1.0 in |
| Thread Form | Unified National |
| Thread Pitch | 12.0 threads Per Inch |
| Gasket Inside Diameter | 2.42126115 IN |
| Gasket Inside Diameter | 2.42126115 IN |
| Gasket Inside Diameter | 2.42126115 IN |
| Gasket Outside Diameter | 2.81496215 IN |
| Gasket Outside Diameter | 2.81496215 IN |
| Gasket Outside Diameter | 2.81496215 IN |
| Height | 4.82283725 in |
| Height | 4.82283725 in |
| Height | 4.82283725 in |
| Largest Outside Diameter | 3.09055285 IN |
| Largest Outside Diameter | 3.09055285 IN |
| Largest Outside Diameter | 3.09055285 IN |
Additional Information
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Time | 1 |
| Warranty Time UOM | YR |
FLEETGUARD LF17488 Cross References
FLEETGUARD LF17488 Customer Reviews
No reviews yet
Be the first to review this product!
FLEETGUARD LF17488 Manufacturer Information
Since 1987, Fleetguard® has been one of the world's leaders in filtration solutions for both on- and off-highway applications. Whether it's air, fuel, oil, or hydraulic filtration, Fleetguard filters provide superior protection against contaminants for engines and sensitive equipment in the agriculture, construction, commercial vehicle, marine, mining, and power generation industries. Each filter is fitted with high-quality filter media for longer service life as well as a more compact design to accommodate shrinking engine compartments found in modern vehicles. All products also undergo extensive performance tests and strict quality control procedures to ensure durability and consistent performance, even in the most demanding operating conditions.
