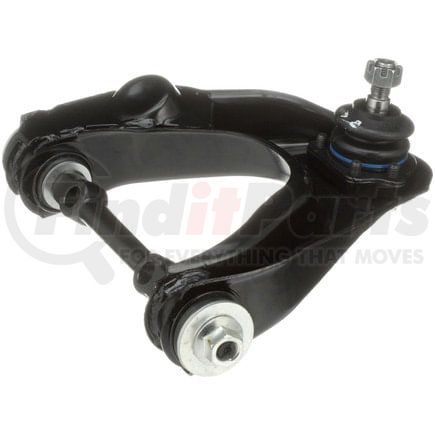

(888) 312-8812 Login SignupDELPHI TC6395 Control Arm and Ball Joint Assembly
Tap to view 13 more
$8349
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Mar 5
DELPHI TC6395 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC6395 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greaseable | Yes |
| Control Arm Maximum Width | 5.709 IN |
| Control Arm Maximum Width | 145.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 0.965 IN |
| Ball Joint Stud Length | 24.50 MM |
| Control Arm Maximum Length | 11.811 IN |
| Control Arm Maximum Length | 300.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604328330 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC6395 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-7541, 102-7921 |
| DORMAN | CB69017, 524-469, CA69007, CB69017PR, CA69007PR |
| Datsun/Nissan | 54527-92G00, 54527-92G10 |
| Dorman | 521-311 |
| MAS Industries | CA69007, CA69007PR |
| MEVOTECH | CMS30139, CMS30141 |
| MOOG Chassis Products | RK640902 |
| N/A | CMS30139, CB69017, 524469, GS30139, CB69017PR, RK623374, CMS30141 |
DELPHI TC6395 Fits Vehicles
- Nissan D21 (1986-1994)
- Nissan Pickup (1995-1997)
- Nissan Pathfinder (1995)
