(888) 312-8812 Login SignupDELPHI TC6372 Control Arm and Ball Joint Assembly
Tap to view 13 more
$11999
Limited availability at this price!
In Stock
Get it by Friday, Mar 6
DELPHI TC6372 Part Description
Manufacturer
Product Description

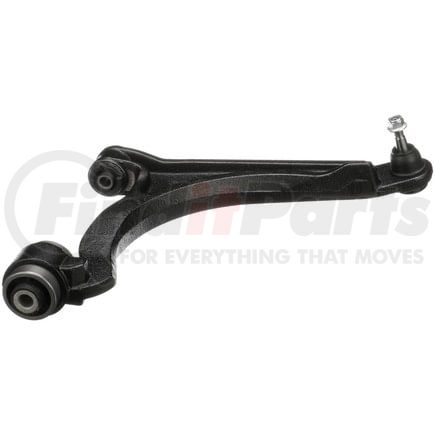

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC6372 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | Yes |
| Control Arm Maximum Width | 16.732 IN |
| Control Arm Maximum Width | 425.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 2.992 IN |
| Ball Joint Stud Length | 76.00 MM |
| Control Arm Maximum Length | 17.520 IN |
| Control Arm Maximum Length | 445.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | CN |
| UPC | 00689604325872 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC6372 Cross References
| Brand | Part Number |
|---|---|
| Chrysler | 4743 476AD, 4743 476AE, 4743 476AF, 4743 476AI |
| DORMAN | 521-596, CB81324, CB81324PR |
| Dorman | 52-1596 |
| MAS Industries | CB81324, CB81324PR |
| MEVOTECH | CMS25180 |
| MOOG | RK621362 |
| MOOG Chassis Products | K80759, RK621362 |
| N/A | 4743476AH, 4743 476AG, CMS25180, GS25180, 623.63008 |
| TRW | JTC2619, JTC2620 |
DELPHI TC6372 Fits Vehicles
- Chrysler Pacifica (2004-2008)
DELPHI TC6372 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TC6372 Questions & Answers
No questions yet
Be the first to ask a question about this product!
