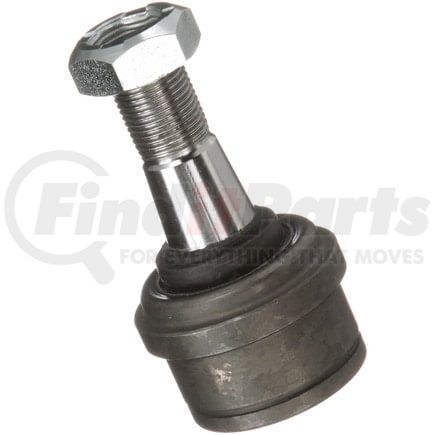

(888) 312-8812 Login SignupDELPHI TC5768 Ball Joint
Tap to view 9 more
$8099
Limited availability at this price!
1 Day Lead Time
Get it by Wednesday, Mar 11
DELPHI TC5768 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5768 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.000 IN |
| Maximum Outside Diameter | 50.80 MM |
| Color | Gray |
| Stud Thread Diameter | 18 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 50.8 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.583 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.063 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| Stud Tapered End 2 Diameter | 0.728 IN |
| Stud Tapered End 2 Diameter | 18.5 MM |
| Stud Tapered End 1 Diameter | 0.878 IN |
| Stud Tapered End 1 Diameter | 22.3 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 91.00 MM |
| Length | 3.580 IN |
| Stud Thread Diameter | 0.71 IN |
| Height | 91.01 MM |
| Stud Thread Length | 27 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604313312 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5768 Cross References
DELPHI TC5768 Fits Vehicles
- Dodge Ram 1500 (2000-2001)
