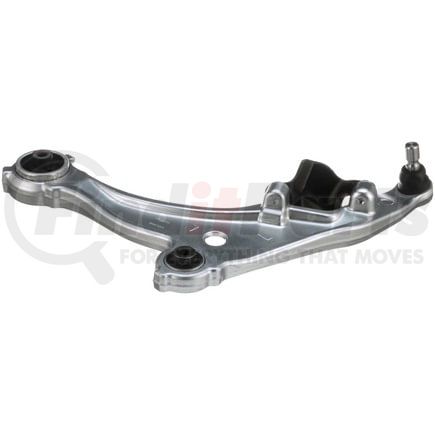

(888) 312-8812 Login SignupDELPHI TC5741 Control Arm and Ball Joint Assembly
Tap to view 13 more
$15099
Limited availability at this price!
In Stock
Get it by Thursday, Mar 5
DELPHI TC5741 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5741 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Machined |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 4.307 IN |
| Control Arm Maximum Width | 109.40 MM |
| Control Arm Color | Gray |
| Control Arm Maximum Length | 17.402 IN |
| Control Arm Maximum Length | 442.00 MM |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 0.394 IN |
| Mounting Hole Diameter | 10.00 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604314463 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC5741 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-7468 |
| DORMAN | CB69103, CB69103PR |
| Datsun/Nissan | 54501-9N00A, 54501-9N00B |
| Dorman | 521-723 |
| MAS Industries | CB69103, CB69103PR |
| MEVOTECH | CMS301004 |
| MOOG | RK622059 |
| MOOG Chassis Products | RK622059 |
| N/A | CMS301004 |
| UNITY AUTOMOTIVE | 2C-CAB622059, CAB622059, SC-700018 |
DELPHI TC5741 Fits Vehicles
- Nissan Maxima (2009-2014)
