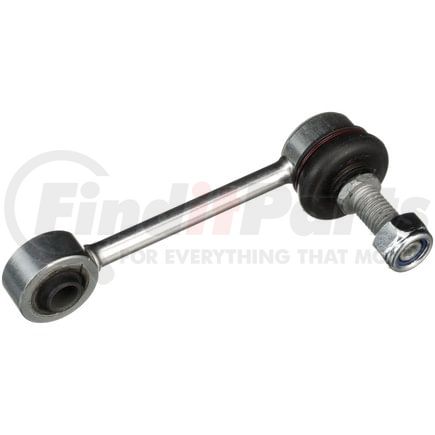

(888) 312-8812 Login SignupDELPHI TC5538 Suspension Stabilizer Bar Link
Tap to view 3 more
$4499
Limited availability at this price!
1 Day Lead Time
Get it by Friday, Mar 6
DELPHI TC5538 Part Description
Manufacturer
Product Description
Suspension Stabilizer Bar Link
Features & Benefits
- Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
- Delphi sway bar links are fatigue tested to avoid failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5538 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front |
| Material | Ball Pin - Steel |
| Bushing Outside Diameter | 0.874 IN |
| Bushing Outside Diameter | 22.20 MM |
| Bushing Color | Black |
| Length | 148.00 MM |
| Length | 5.827 IN |
| End 2 Type | Male - M12x1.75 |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Sleeve Inside Diameter | 0.406 IN |
| Sleeve Inside Diameter | 10.3 MM |
| Sleeve Length | 22 MM |
| Sleeve Length | 0.866 IN |
| Width | 39 MM |
| Width | 1.535 IN |
| Washers Included | No |
| Height | 66.00 MM |
| Height | 2.598 IN |
| Grade Type | Performance |
| Bolts Included | No |
| Housing Material | Steel |
| Greaseable | No |
| Weight | 0.54 lb |
| Bearing Material | Polyoxymethylene (POM) |
| Bushing Material | Rubber |
| Wrench Size | 5mm |
| Distance Between Mounting Holes | 114.00 MM |
| Locking Nuts Included | Yes |
| Bushing Inside Diameter | 0.551 IN |
| Bushing Inside Diameter | 14.00 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TR |
| UPC | 00689604313152 |
| VMRS Code | 016004006 |
| UNSPSC | 25172001 |
DELPHI TC5538 Cross References
DELPHI TC5538 Fits Vehicles
- Jaguar XKR (2000-2006)
- Jaguar XK8 (1997-2006)
- Jaguar XJR (1998)
- Jaguar XJS (1990-1996)
- Jaguar XJRS (1993)
- Jaguar XJ8 (1998)
- Jaguar XJ6 (1990-1997)
- Jaguar XJ12 (1990-1992, 1994-1996)
- Jaguar Vanden Plas (1990-1998)
