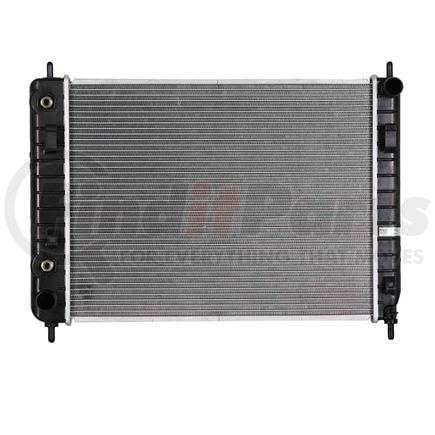

REACH COOLING 41-2850 Radiator

41-2850 by REACH COOLING - Radiator
REACH COOLING
Tap to view 12 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

REACH COOLING 41-2850 Part Description

Manufacturer

REACH COOLING

Product Description

Radiator

Application Summary

Chevrolet:2006-2011 HHR

Features & Benefits

  • Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
  • Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
  • Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
  • Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
  • Folded fin edges increase stability and heat disbursement properties.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
  • Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
  • Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
  • We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Our utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.

No Shipping Restriction

radiator, engine cooling, rad, car radiator, auto radiator, radiator cap

REACH COOLING 41-2850 Specifications

Product Attributes

Core Height 544.5 MM
Core Thickness 22.2 MM
Inlet Header Length 450.9 MM
Outlet Header Width 2 IN
Transmission Oil Cooler Type Plated
Engine Oil Cooler Included No
Inlet Header Width 2 IN
Trans Cooler Adapter Fittings Included (True/False) True
Core Material Aluminum
Transmission Oil Cooler Included Yes
Inlet Diameter 1.312 IN
Radiator Cap Included Not Needed
Fitting Connection Type Quick connect
Down Flow Or Cross Flow Type Cross Flow
Core Width 417.5 MM
Outlet Header Length 450.9 MM
Transmission Oil Cooler Distance between Fittings 292.1 MM
Outlet Location Bottom Left
Outlet Diameter 1.312 IN
Core Row Quantity 1
Tank Material Plastic
Inlet Location Top Right
Core Thickness 22.225 MM
Inlet Header Width 50.8 mm
Outlet Header Width 50.8 mm
Transmission Oil Cooler Distance between Fittings 292.1 MM
Outlet Header Width 50.8 MM
Outlet Diameter 33.324 MM
Inlet Diameter 33.3 MM
Core Height 544.499 MM
Outlet Header Length 450.85 mm
Core Height 21.437 IN
Core Thickness 0.875 IN
Inlet Header Length 17.75 IN
Inlet Header Length 450.85 mm
Transmission Oil Cooler Distance between Fittings 11.5 IN
Outlet Diameter 33.3 MM
Core Width 417.499 MM
Inlet Diameter 33.324 mm
Inlet Header Width 50.8 MM
Core Width 16.437 IN
Outlet Header Length 17.75 IN

Additional Information

Country of Origin (Primary) TH
UPC 06949521714567
VMRS Code 042002001
UNSPSC 25174002

REACH COOLING 41-2850 Cross References

BrandPart Number
1-800-Radiator103059
ACDelco21632
APDI8012850
APDI RADS8012850
Advance Auto Parts434027
AutoNation19812-01086
AutoZoneA2850
Autokool2850
BesutoBES2850
CRSCUC2850
CRS AutomotiveCUC2850, CRS2850
CSF3261
Cancore IndustriesC2850
Chevrolet15940326, 22727322
CryoMAX0R-002850-A2CM, 0R002850A2CM, 2850
DENSO221-9017, 2219017
DPI DataPoint Inc2850
Dixin USADX2850
Factory AirRAD2850
Federated2850
FisherCU2850
FronteraAM2850
GLOBAL PARTS DISTRIBUTORS2850C
Genera - Archived2850
General Motors22727322
Keystone Auto IndustriesRAD2850
KlimotoKLI2850
Kool VueP2850
KoyoA2850
Lynol Cooling SystemsLR2850
Murray Heat Transfer434027
NAPACU2850, NR2850A
NRF56515
Northern RadiatorCR2850
OSC2850, USR2850
Omega24-80966, 2480966
OnixOR2850
PACIFIC BEST INC.PR2850A, PR2850KA, PR2850F
PBIPR2850A
PartslinkGM3010501
Performance Radiator2374
Platinum ProRAD2850
Pro Parts56515
RadCool2850
Reach CoolingREA412850A
Silla Cooling9065A
Spectra PremiumCU2850
Sunbelt Radiators IncSBR2850
TYC2850
TYGCV37116A
Tongshi79301
UNIVERSAL AIR CONDITIONER (UAC)RA2850C
US Motor WorksUSR2850
Vista Pro434027, 8150
Visteon8150

REACH COOLING 41-2850 Fits Vehicles

  • Chevrolet HHR (2006-2011)
