REACH COOLING 41-2455 Radiator

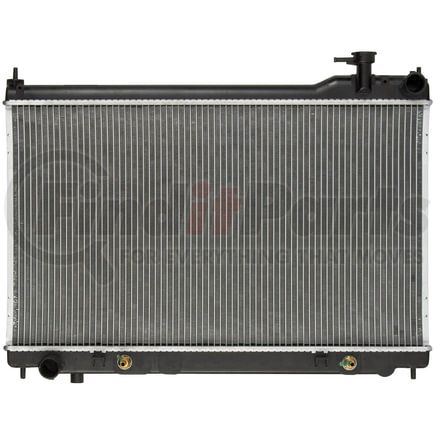

41-2455 by REACH COOLING - Radiator
REACH COOLING
Tap to view 8 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

REACH COOLING 41-2455 Part Description

Manufacturer

REACH COOLING

Product Description

Radiator

Application Summary

Infiniti:2003-2004 G35

Features & Benefits

  • Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
  • Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
  • Folded fin edges increase stability and heat disbursement properties.
  • Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
  • Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
  • We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
  • Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
  • Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Our utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.

No Shipping Restriction

radiator, engine cooling, rad, car radiator, auto radiator, radiator cap

REACH COOLING 41-2455 Specifications

Product Attributes

Outlet Diameter 1.375 IN
Core Width 26.666 IN
Tank Material Plastic
Trans Cooler Adapter Fittings Included (True/False) True
Transmission Oil Cooler Included Yes
Core Thickness 0.625 IN
Core Material Aluminum
Transmission Oil Cooler Type Concentric
Down Flow Or Cross Flow Type Down Flow
Inlet Header Width 49.2 MM
Inlet Diameter 1.375 IN
Fitting Connection Type Pipe connect
Outlet Header Length 714.4 MM
Inlet Location Top Right
Radiator Cap Included No
Core Height 400.1 MM
Outlet Location Bottom Left
Transmission Oil Cooler Distance between Fittings 374.7 MM
Core Row Quantity 1
Engine Oil Cooler Included No
Outlet Header Width 49.2 MM
Inlet Header Length 714.4 MM
Core Thickness 15.875 MM
Inlet Header Length 714.375 mm
Core Height 15.75 IN
Transmission Oil Cooler Distance between Fittings 14.75 IN
Core Width 677.316 MM
Inlet Header Length 28.125 IN
Outlet Header Width 1.937 IN
Outlet Diameter 34.925 MM
Outlet Header Width 49.199 mm
Inlet Header Width 49.199 mm
Transmission Oil Cooler Distance between Fittings 374.65 MM
Inlet Header Width 1.937 IN
Outlet Header Length 714.375 mm
Core Width 677.3 MM
Inlet Diameter 34.9 MM
Inlet Diameter 34.925 mm
Core Thickness 15.9 MM
Outlet Header Length 28.125 IN
Core Height 400.05 MM
Outlet Diameter 34.9 MM

Additional Information

Country of Origin (Primary) TH
UPC 06949521790059
VMRS Code 042002001
UNSPSC 25174002

REACH COOLING 41-2455 Cross References

BrandPart Number
1-800-Radiator2455
APDI8012455
APDI RADS8012455
Advance Auto Parts432644
AutoNation19812-01433
AutoZoneB2455
BesutoBES2455
CRSCUC2455
CRS AutomotiveCUC2455, CRS2455
CSF2984
Cancore IndustriesC2455
CryoMAX0R-002455-A1CM, 0ANS5578, 0R002455A1CM, 2455
DENSO221-3421, 2213421
DPI DataPoint Inc2455
Datsun/Nissan21460AQ800
Dixin USADX2455
Factory AirRAD2455
Federated2455
FisherCU2455
FronteraAM2455
GLOBAL PARTS DISTRIBUTORS2455C
Genera - Archived2455
INFINITI21410-AM900, 21410AM900, 21460-AQ800, 21460AQ800
Keystone Auto IndustriesRAD2455
KlimotoKLI2455
Kool VueP2455
KoyoA2455
Lynol Cooling SystemsLR2455
Modine2978
Murray Heat Transfer432644
NAPA2978, NR2455B
NRF56584
Nissens681213
Northern RadiatorCR2455
OSC2455, USR2455
Omega24-81037, 2481037
OnixOR2455
PACIFIC BEST INC.PR2455A
PBIPR2455A
Parts PlusCU2455
PartslinkIN3010114
Performance Radiator2772
Platinum ProRAD2455
Pro Parts56584
Proliance432644
RadCool2455
Reach CoolingREA412455A
Silla Cooling7169A, 7169P
Spectra PremiumCU2455
Sunbelt Radiators IncSBR2455
TYC2455
Tongshi73357
Toyota1640028270
UACRA 2455C, RA2455C
US Motor WorksUSR2455
Vision2455
Vista Pro432644, 9896
Visteon9896

REACH COOLING 41-2455 Fits Vehicles

  • INFINITI G35 (2003-2004)
