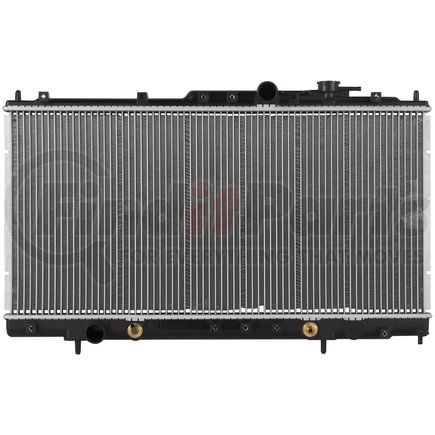

REACH COOLING 41-2438 Radiator

41-2438 by REACH COOLING - Radiator
REACH COOLING
Tap to view 8 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

REACH COOLING 41-2438 Part Description

Manufacturer

REACH COOLING

Product Description

Radiator

Application Summary

Chrysler:2001-2005 Sebring; Dodge:2001-2005 Stratus; Mitsubishi:2000-2005 Eclipse

Features & Benefits

  • Folded fin edges increase stability and heat disbursement properties.
  • Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
  • Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
  • Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
  • Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
  • Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
  • Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
  • We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
  • We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Our utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.

No Shipping Restriction

radiator, complete, engine cooling, rad, cooling, heat, transfer

REACH COOLING 41-2438 Specifications

Product Attributes

Core Width 708 MM
Outlet Header Width 1.875 IN
Outlet Diameter 1.375 IN
Trans Cooler Adapter Fittings Included (True/False) True
Outlet Header Length 719.1 MM
Core Material Aluminum
Down Flow Or Cross Flow Type Down Flow
Core Thickness 1 IN
Inlet Header Length 719.1 MM
Tank Material Plastic
Inlet Header Width 1.875 IN
Transmission Oil Cooler Type Concentric
Transmission Oil Cooler Distance between Fittings 11.812 IN
Inlet Diameter 34.9 MM
Core Row Quantity 1
Engine Oil Cooler Included No
Core Height 349.3 MM
Transmission Oil Cooler Included Yes
Radiator Cap Included No
Fitting Connection Type Pipe connect
Outlet Location Bottom Left
Inlet Location Top Center
Core Height 13.75 IN
Outlet Header Width 47.625 mm
Transmission Oil Cooler Distance between Fittings 300.024 MM
Outlet Diameter 34.9 MM
Inlet Header Length 719.124 mm
Inlet Header Width 47.625 mm
Outlet Header Length 28.312 IN
Transmission Oil Cooler Distance between Fittings 300 MM
Core Height 349.25 MM
Inlet Diameter 34.925 mm
Core Thickness 25.4 MM
Outlet Diameter 34.925 MM
Inlet Diameter 1.375 IN
Core Width 27.875 IN
Outlet Header Width 47.6 MM
Core Width 708.025 MM
Outlet Header Length 719.124 mm
Inlet Header Length 28.312 IN
Core Thickness 26 MM
Inlet Header Width 47.6 MM

Additional Information

Country of Origin (Primary) TH
UPC 08859869507296
VMRS Code 042002001
UNSPSC 25174002

REACH COOLING 41-2438 Cross References

BrandPart Number
1-800-Radiator2433, 2438
APDI8012410
APDI RADS8012410
Advance Auto Parts412438, 812438
AutoZoneB2438
BEHR376748521
BesutoBES2438
CRSCUC2438, CUC2410
CRS AutomotiveCUC2410, CRS2438
CSF2779, 3097
Cancore IndustriesC2438
ChryslerMR37 3103, MR373102, MR373103, MB373103
CryoMAX0R-002438-A2CM, 0R002438A2CM, 2438
DENSO221-3307, 2213307
DPI DataPoint Inc2438
Dixin USADX2438
DodgeMR37 3103, MR373103, MR373102, MB373103
Factory AirRAD2438
Federated2438
FisherCU2438
FronteraAM2438
GLOBAL PARTS DISTRIBUTORS2438C
Genera - Archived2438
Hella376748521
Keystone Auto IndustriesRAD2438
KlimotoKLI2438
KoyoA2438
Lynol Cooling SystemsLR2438
MitsubishiMB373103, MR373103, MZ690917, MR373102
Modine2952
Murray Heat TransferCU2438
NAPACU2438, NR2438A
NRF56019
Nissens68180
Northern Factory Sales68180
Northern RadiatorCR2438
OSC2438
PACIFIC BEST INC.PR2438F, PR2438A
PBIPR2438A
PartslinkMI3010150, MI3010107, MI3010109
Performance Radiator2672
Platinum ProRAD2438
Proliance432508, 439509
RadCool2438
Reach CoolingREA412438A
Spectra PremiumCU2438
TYC2438
Thermal Solutions Manufacturing432508
Tongshi72229
US Motor WorksUSR2438
Vision2438
Vista Pro432508
Visteon9926

REACH COOLING 41-2438 Fits Vehicles

  • Chrysler Cirrus (2001-2006)
  • Mitsubishi Eclipse (2000-2005)
  • Dodge Stratus (2001-2005)
  • Chrysler Sebring (2001-2006)
