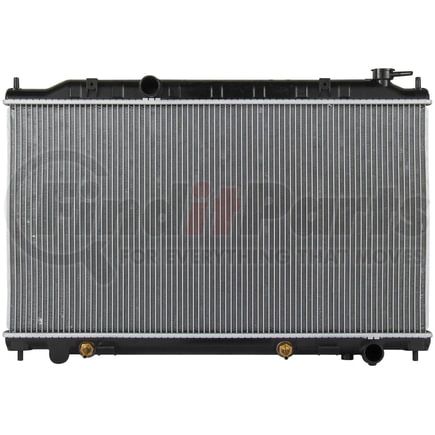

REACH COOLING 41-2415 Radiator

41-2415 by REACH COOLING - Radiator
REACH COOLING
Tap to view 8 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

REACH COOLING 41-2415 Part Description

Manufacturer

REACH COOLING

Product Description

Radiator

Application Summary

Nissan:2002-2006 Altima/2003-2006 Maxima

Features & Benefits

  • Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
  • Folded fin edges increase stability and heat disbursement properties.
  • Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
  • Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
  • Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
  • Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
  • We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
  • Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
  • We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
  • Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Our utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.

No Shipping Restriction

radiator, engine cooling, rad, car radiator, auto radiator, radiator cap

REACH COOLING 41-2415 Specifications

Product Attributes

Outlet Header Length 758.8 MM
Outlet Header Width 1.875 IN
Outlet Diameter 1.375 IN
Core Height 15.75 IN
Core Width 728.1 MM
Tank Material Plastic
Inlet Header Width 47.6 MM
Transmission Oil Cooler Distance between Fittings 13.75 IN
Inlet Location Top Right
Inlet Diameter 34.9 MM
Core Thickness 0.625 IN
Transmission Oil Cooler Type Concentric
Fitting Connection Type Pipe connect
Inlet Header Length 758.8 MM
Outlet Location Bottom Right
Radiator Cap Included No
Engine Oil Cooler Included No
Transmission Oil Cooler Included Yes
Core Row Quantity 1
Down Flow Or Cross Flow Type Down Flow
Core Material Aluminum
Core Width 728.116 MM
Core Width 28.666 IN
Transmission Oil Cooler Distance between Fittings 349.3 MM
Inlet Header Length 758.825 mm
Transmission Oil Cooler Distance between Fittings 349.25 MM
Outlet Header Length 29.875 IN
Inlet Diameter 1.375 IN
Core Height 400.05 MM
Outlet Diameter 34.925 MM
Outlet Header Length 758.825 mm
Core Thickness 15.9 MM
Outlet Header Width 47.6 MM
Core Thickness 15.875 MM
Inlet Diameter 34.925 mm
Inlet Header Width 47.625 mm
Inlet Header Width 1.875 IN
Outlet Diameter 34.9 MM
Outlet Header Width 47.625 mm
Core Height 400.1 MM
Inlet Header Length 29.875 IN

Additional Information

Country of Origin (Primary) TH
UPC 08859869501096
VMRS Code 042002001
UNSPSC 25174002

REACH COOLING 41-2415 Cross References

BrandPart Number
1-800-Radiator2415
ACDelco21341
APDI8012693, 8012415
APDI RADS8012693
Advance Auto Parts432621
AutoNation19812-02048
AutoZoneB2415
Autokool2415, 2693
BEHR376748441
BesutoBES2415
CRSCRS2693, CRS2415, CUC2415
CSF2907, 2945
Cancore IndustriesC2415
CryoMAX0R-002415-A1CM, 0R002415A1CM, 2415
DENSO221-3415, 2213415
DPI DataPoint Inc2415
Datsun/Nissan214103S200, 214108J100, 214109Z010, 214608J100
DelphiRA20049
Dixin USADX2415
FVPRAD2415
Factory AirRAD2415
Federated2415
FisherCU2415
FronteraAM2415
GLOBAL PARTS DISTRIBUTORS2415C
Genera - Archived2415, 2693
KlimotoKLI2415
Kool VueP2415
KoyoA24151, A2415-1, A2693, A2415
Lynol Cooling SystemsLR2415
Modine2928
Murray Heat Transfer432621
NAPA2928, NR2415A
NRF56081
Nissan21410-8J100, 214108J100, 21460-8J100, 214608J100, 214608Y100
Nissens68767
Northern RadiatorCR2415, 2693
OEM21410-9Z010
OSC2415, 2693, USR2415
Omega24-80770, 2480770
OnixOR2415
PACIFIC BEST INC.PR2415A
PBIPR2415A
Parts PlusCU2415
PartslinkNI3010189, NI3010190, NI3010194
Performance Radiator2897
Platinum ProRAD2415
Pro Parts56081
Proliance432621
RadCool2415
Spectra PremiumCU2415, CU2693
Sunbelt Radiators IncSBR2415
TYC2415, 2693
TYGDS37035A
Tongshi73068
UACRA 2415, RA 2415C, RA2415C, RA2415
US Motor WorksUSR2415
Valeo734935, 700773, 735122, VS2415
Vision2415
Vista Pro432621, 9892
Visteon9892

REACH COOLING 41-2415 Fits Vehicles

  • Nissan Maxima (2004-2006)
  • Nissan Altima (2002-2006)
