REACH COOLING 41-2222 Radiator

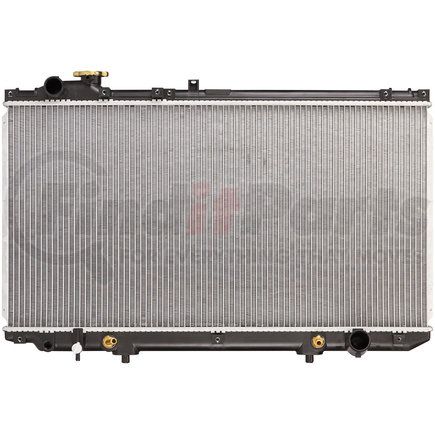

41-2222 by REACH COOLING - Radiator
REACH COOLING
Tap to view 9 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

REACH COOLING 41-2222 Part Description

Manufacturer

REACH COOLING

Product Description

Radiator

Application Summary

Lexus:98-2005 GS300/98-2000 GS400

Features & Benefits

  • Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
  • Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
  • Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
  • Folded fin edges increase stability and heat disbursement properties.
  • Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
  • Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
  • We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
  • Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Our utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.

No Shipping Restriction

radiator, complete, engine cooling, rad, cooling, heat, transfer

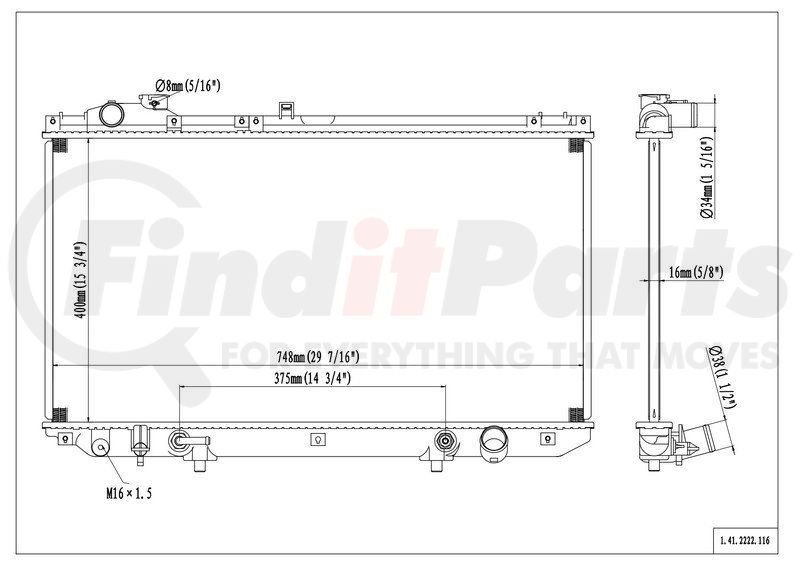

REACH COOLING 41-2222 Specifications

Product Attributes

Trans Cooler Adapter Fittings Included (True/False) True
Core Height 400.1 MM
Core Width 747.7 MM
Outlet Header Length 774.7 MM
Fitting Connection Type Pipe connect
Core Thickness 15.9 MM
Outlet Header Width 50.80 MM
Transmission Oil Cooler Type Concentric
Transmission Oil Cooler Distance between Fittings 374.7 MM
Inlet Diameter 33.3 MM
Core Row Quantity 1
Engine Oil Cooler Included No
Inlet Header Length 774.7 MM
Outlet Location Bottom Right
Tank Material Plastic
Inlet Header Width 2 IN
Outlet Diameter 38.1 MM
Core Material Aluminum
Transmission Oil Cooler Included Yes
Inlet Location Top Left
Down Flow Or Cross Flow Type Down Flow
Radiator Cap Included Yes
Inlet Diameter 33.324 mm
Outlet Header Length 30.5 IN
Inlet Header Length 774.7 mm
Inlet Header Width 50.8 mm
Outlet Header Width 50.8 mm
Inlet Diameter 1.312 IN
Outlet Diameter 1.5 IN
Core Height 15.75 IN
Inlet Header Width 50.80 MM
Core Height 400.05 MM
Transmission Oil Cooler Distance between Fittings 374.65 MM
Core Thickness 0.625 IN
Inlet Header Length 30.5 IN
Outlet Header Width 2 IN
Core Width 747.699 MM
Outlet Diameter 38.1 MM
Outlet Header Length 774.7 mm
Core Width 29.437 IN
Core Thickness 15.875 MM
Transmission Oil Cooler Distance between Fittings 14.75 IN

Additional Information

Country of Origin (Primary) TH
UPC 08859869502215
VMRS Code 042002001
UNSPSC 25174002

REACH COOLING 41-2222 Cross References

BrandPart Number
1-800-Radiator2222
APDI8012222
APDI RADS8012222
Advance Auto Parts431465
AutoNation19812-01579
AutoZoneB2222
BesutoBES2222
CRSCUC2222
CRS AutomotiveCUC2222, CRS2222
CSF2606
Cancore IndustriesC2222
CryoMAX0R-002222-A1CM, 0R002222A1CM, 0ATY5562, 2222
DENSO221-3121, 2213121
DPI DataPoint Inc2222
Dixin USADX2222
Factory AirRAD2222
Federated2222
FisherCU2222
FronteraAM2222
GLOBAL PARTS DISTRIBUTORS2222C
Genera - Archived2222
Keystone Auto IndustriesRAD2222
KlimotoKLI2222
Kool VueP2222
KoyoA2222
Lexus1640046570, 16403-46570, 1640346570
Lynol Cooling SystemsLR2222
Modine2881
Murray Heat Transfer431465
NAPA2881, NR2222A
NRF53467
Nissens64762
Northern Factory Sales64762
Northern RadiatorCR2222
OSC2222
Omega24-80982, 2480982
OnixOR2222
PACIFIC BEST INC.PR2222A
PBIPR2222A
Parts PlusCU2222
PartslinkLX3010102
Platinum ProRAD2222
Pro Parts53467
Proliance431465
RadCool2222
Reach CoolingREA412222A
Silla Cooling7001A, 7001P
Spectra PremiumCU2222
Sunbelt Radiators IncSBR2222
TYC2222
Tongshi75032
UNIVERSAL AIR CONDITIONER (UAC)RA2222C
US Motor WorksUSR2222
Vision2222
Vista Pro431465, 9708
Visteon9708

REACH COOLING 41-2222 Fits Vehicles

  • Lexus GS400 (1998-2000)
  • Lexus GS300 (1998-2005)
  • Daihatsu Charade (1988-1992)
