REACH COOLING 41-2072 Radiator

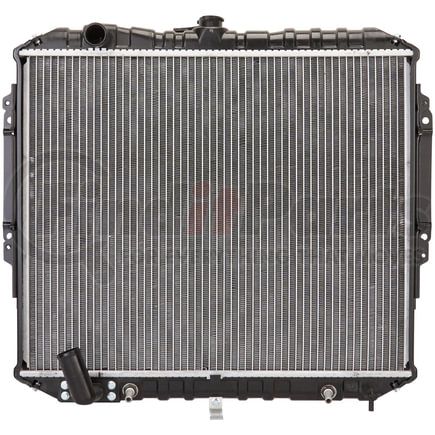

41-2072 by REACH COOLING - Radiator
REACH COOLING
Tap to view 8 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

REACH COOLING 41-2072 Part Description

Manufacturer

REACH COOLING

Product Description

Radiator

Application Summary

Mitsubishi:94-2000 Montero

Features & Benefits

  • Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
  • Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
  • Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
  • Folded fin edges increase stability and heat disbursement properties.
  • Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
  • Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
  • We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
  • We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
  • Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
  • Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Our utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.

No Shipping Restriction

radiator, engine cooling, rad, car radiator, auto radiator, radiator cap

REACH COOLING 41-2072 Specifications

Product Attributes

Core Height 18.687 IN
Core Thickness 26 MM
Core Width 577.9 MM
Outlet Header Length 603.3 MM
Tank Material Plastic
Outlet Header Width 73 MM
Transmission Oil Cooler Type Concentric
Inlet Diameter 34.9 MM
Trans Cooler Adapter Fittings Included (True/False) False
Inlet Header Length 23.812 IN
Inlet Header Width 73 MM
Outlet Diameter 34.9 MM
Core Row Quantity 2
Transmission Oil Cooler Distance between Fittings 11.812 IN
Inlet Location Top Left
Down Flow Or Cross Flow Type Down Flow
Outlet Location Bottom Left
Engine Oil Cooler Included No
Fitting Connection Type Pipe connect
Core Material Aluminum
Transmission Oil Cooler Included Yes
Radiator Cap Included No
Inlet Header Width 73.025 mm
Outlet Header Width 73.025 mm
Outlet Header Width 2.875 IN
Transmission Oil Cooler Distance between Fittings 300 MM
Outlet Diameter 1.375 IN
Core Height 474.649 MM
Core Thickness 25.4 MM
Inlet Diameter 34.925 mm
Outlet Header Length 603.25 mm
Inlet Header Length 604.8 MM
Core Thickness 1 IN
Outlet Header Length 23.75 IN
Core Width 577.85 MM
Inlet Header Length 604.824 mm
Outlet Diameter 34.925 MM
Inlet Diameter 1.375 IN
Transmission Oil Cooler Distance between Fittings 300.024 MM
Core Height 474.7 MM
Core Width 22.75 IN
Inlet Header Width 2.875 IN

Additional Information

Country of Origin (Primary) TH
UPC 08859869507722
VMRS Code 042002001
UNSPSC 25174002

REACH COOLING 41-2072 Cross References

BrandPart Number
1-800-Radiator2072
APDI8012072
APDI RADS8012072
Advance Auto Parts431397
AutoNation19812-01888
AutoZoneB2072
BesutoBES2072
CRSCRS2072, CUC2072
CSF3050
CryoMAX2072
DPI DataPoint Inc2072
Dixin USADX2072
Federated2072
FisherCU2072
GLOBAL PARTS DISTRIBUTORS2072C
Keystone Auto IndustriesRAD2072
KlimotoKLI2072
MitsubishiMB890951
Modine2840
Murray Heat Transfer431397
NAPA2840, NR2072B
Northern RadiatorCR2072
OSC2072
PACIFIC BEST INC.PR2072A
PartslinkMI3010138
Performance Radiator2072
Platinum ProRAD2072
Proliance431397
RadCool2072
Silla Cooling7738A
Spectra PremiumCU2072
Sunbelt Radiators IncSBR2072
Tongshi72142
US Motor WorksUSR2072
Valeo735059
Vision2072
Vista Pro431397, 9840
Visteon9840

REACH COOLING 41-2072 Fits Vehicles

  • Mitsubishi Montero (1994-2000)
