REACH COOLING 41-1889 Radiator

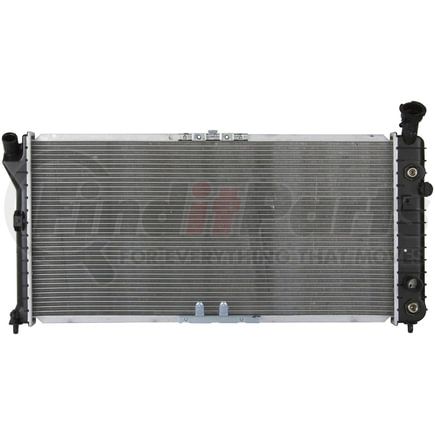

41-1889 by REACH COOLING - Radiator
REACH COOLING
Tap to view 9 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

REACH COOLING 41-1889 Part Description

Manufacturer

REACH COOLING

Product Description

Radiator

Application Summary

Buick:97-99 Century/ Regal; Chevrolet:97-2000 Venture; Oldsmobile:98-99 Intrigue/97-2000 Silhouette; Pontiac:97-2003 Grand Prix/99-2000 Montana/97-99 Trans Sport

Features & Benefits

  • Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
  • Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
  • Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
  • Folded fin edges increase stability and heat disbursement properties.
  • Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
  • Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
  • Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
  • We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
  • Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Our utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.

No Shipping Restriction

radiator, complete, engine cooling, rad, cooling, heat, transfer

REACH COOLING 41-1889 Specifications

Product Attributes

Outlet Header Width 2.375 IN
Transmission Oil Cooler Type Plated
Transmission Oil Cooler Fitting Type Quick Connect
Inlet Location Top Left
Core Row Quantity 1
Core Width 377.8 MM
Transmission Oil Cooler Distance between Fittings 11.5 IN
Outlet Diameter 1.312 IN
Outlet Location Bottom Right
Tank Material Plastic
Inlet Header Length 18.75 IN
Inlet Diameter 33.3 MM
Down Flow Or Cross Flow Type Cross Flow
Trans Cooler Adapter Fittings Included (True/False) True
Outlet Header Length 18.75 IN
Transmission Oil Cooler Included Yes
Core Height 30.562 IN
Core Thickness 0.625 IN
Core Material Aluminum
Radiator Cap Included No
Inlet Header Width 2.375 IN
Engine Oil Cooler Included No
Inlet Header Length 476.25 mm
Outlet Header Length 476.25 mm
Outlet Header Width 60.3 MM
Inlet Diameter 1.312 IN
Core Width 377.825 MM
Outlet Diameter 33.324 MM
Transmission Oil Cooler Distance between Fittings 292.1 MM
Outlet Header Width 60.325 mm
Core Height 776.3 MM
Core Thickness 15.875 MM
Fitting Connection Type Quick connect
Inlet Header Width 60.325 mm
Inlet Header Length 476.3 MM
Inlet Header Width 60.3 MM
Core Thickness 15.9 MM
Core Width 14.875 IN
Outlet Header Length 476.3 MM
Transmission Oil Cooler Distance between Fittings 292.1 MM
Outlet Diameter 33.3 MM
Core Height 776.274 MM
Inlet Diameter 33.324 mm

Additional Information

Country of Origin (Primary) TH
UPC 08859869501492
VMRS Code 042002001
UNSPSC 25174002

REACH COOLING 41-1889 Cross References

BrandPart Number
1-800-Radiator1889, 1887, 1893, 1894
ACDelco20860, 20919, 20960, 20961, 21548, 21551, 21636, 20861
APDI8011889, 8011894
APDI RADS8011889
Advance Auto Parts432576
AutoNation19812-01006
AutoZoneB1889
Autokool1888, 1889
BesutoBES1889
Buick52485608, 52498590, 25813509, 89018557, 52472846, 52401486, 52476951, 89018556
CRSCUC1887, CUC1894, CRS1894, CUC1911, CUC1889, CRS1887
CRS AutomotiveCUC1889, CRS1889
Cancore IndustriesC1889
CarquestCU1889
Chevrolet52476953, 89018556, 25813509, 88957437, 52472849, 52498590
CryoMAX0R-001889-A1CM, 1887, 0R001889A1CM, 1894, 1889
DENSO221-9007, 2219007
DPI DataPoint Inc1887, 1889, 1893, 1894, 1911
DelphiRA10045, RA1146, RA1173, RA1203, RA20089
Dixin USADX1893, DX1889, DX1894, DX1887
FVPRAD1887
Factory AirRAD1887, RAD1889
Federated1889
FisherCU1887, CU1889, CU1893, CU1894
FronteraAM1887, AM1889, AM1893, AM1894
GLOBAL PARTS DISTRIBUTORS1889C
Genera - Archived1889, 1887
General Motors10310317, 10329501, 10420263, 15791269, 25708396, 25813509, 52401486, 52472846, 52472849, 52472865, 52476951, 52476953, 52476954, 52479612, 52479614, 52485608, 52489176, 52498590, 88957433, 88957437, 89018556, 89018557
Keystone Auto IndustriesRAD1889
KlimotoKLI1889
Kool VueP1889
KoyoA1889
Lynol Cooling SystemsLR1889
Modine2687, 2574, 2576, 2683, 2782
Murray Heat Transfer432574, 432576
NAPA3900, CU1889CC, NR1889B
NRF56001, 56002
Nissens691051
Northern Factory Sales691051
Northern RadiatorCR1887, CR1889, CR1893, CR1894, CR1911
OSC1889, 1887
Oldsmobile52476953, 52485608, 52498590, 89018556, 25813509, 88957437, 52401486, 52472846, 52476951
Omega24-80584, 2480584
OnixOR1887, OR1889
PACIFIC BEST INC.PR1889A, PR1887A, PR1894A
PBIPR1889A
Parts PlusCU1887
PartslinkGM3010101, GM3010219, GM3010286, GM3010287, GM3010411, GM3010102
Performance Radiator1889, 1890
Platinum ProRAD1889
Pontiac52476953, 52485608, 52498590, 89018556, 25813509, 88957437, 89018557, 52476951, 52476954, 52479614, 52401486, 52479612, 52472846, 52489176
Pro Parts56001
Proliance432385, 432574, 432576, 432683
RadCool1887, 1889
Reach CoolingREA411889A
Saturn25813509
Silla Cooling2576A
Spectra PremiumCU1889, CU1889CC
Sunbelt Radiators IncSBR1887, SBR1889
TYC1889, 1887
TYGBK37007A
Thermal Components4-0666, 40666
Thermal Solutions Manufacturing40666
Tongshi79004
UACRA 1889C, RA1889C
US Motor WorksUSR1889, USR1887
Valeo376053, 376055, VS1887, VS1889
Vision1889
Vista Pro432385, 432574, 432576, 9589
Visteon9589

REACH COOLING 41-1889 Fits Vehicles

  • Pontiac Trans Sport (1997-1999)
  • Pontiac Montana (1999-2000)
  • Pontiac Grand Prix (1997-2003)
  • Oldsmobile Silhouette (1997-2000)
  • Oldsmobile Intrigue (1998-1999)
  • Chevrolet Venture (1997-2000)
  • Buick Regal (1997-1999)
  • Buick Century (1997-1999)
