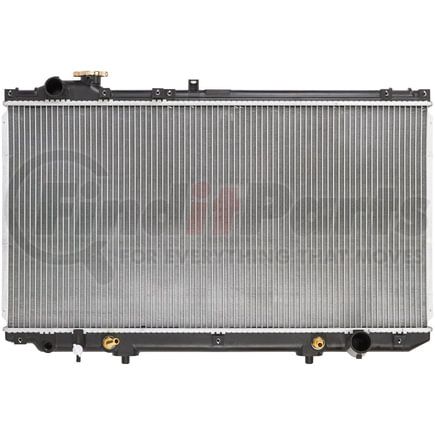

REACH COOLING 41-1854 Radiator

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

REACH COOLING 41-1854 Part Description

Manufacturer

REACH COOLING

Product Description

Radiator

Application Summary

Lexus:93-97 GS300

Features & Benefits

  • Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
  • Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
  • Folded fin edges increase stability and heat disbursement properties.
  • Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
  • Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
  • Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
  • We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
  • We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Our utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.

No Shipping Restriction

radiator, engine cooling, rad, car radiator, auto radiator, radiator cap

REACH COOLING 41-1854 Specifications

Product Attributes

Core Height 15.75 IN
Core Thickness 0.625 IN
Outlet Header Width 2 IN
Outlet Diameter 1.5 IN
Inlet Header Length 30.5 IN
Inlet Diameter 1.312 IN
Radiator Cap Included Yes
Outlet Location Bottom Right
Tank Material Plastic
Inlet Header Width 2 IN
Outlet Header Length 30.5 IN
Core Material Aluminum
Transmission Oil Cooler Included Yes
Transmission Oil Cooler Distance between Fittings 14.75 IN
Inlet Location Top Left
Down Flow Or Cross Flow Type Down Flow
Core Width 29.437 IN
Core Row Quantity 1
Engine Oil Cooler Included No
Trans Cooler Adapter Fittings Included (True/False) True
Fitting Connection Type Pipe connect
Transmission Oil Cooler Type Concentric
Core Height 400.05 MM
Transmission Oil Cooler Distance between Fittings 374.65 MM
Core Height 400.1 MM
Inlet Header Length 774.7 MM
Transmission Oil Cooler Distance between Fittings 374.7 MM
Core Thickness 15.9 MM
Inlet Header Length 774.7 mm
Inlet Header Width 50.8 mm
Outlet Header Width 50.8 mm
Inlet Header Width 50.80 MM
Inlet Diameter 33.324 mm
Outlet Header Width 50.80 MM
Inlet Diameter 33.3 MM
Core Width 747.699 MM
Outlet Diameter 38.1 MM
Outlet Header Length 774.7 mm
Core Thickness 15.875 MM
Core Width 747.7 MM
Outlet Header Length 774.7 MM
Outlet Diameter 38.1 MM

Additional Information

Country of Origin (Primary) TH
UPC 08859869508576
VMRS Code 042002001
UNSPSC 25174002

REACH COOLING 41-1854 Cross References

BrandPart Number
1-800-Radiator1854
APDI8011854
APDI RADS8011854
Advance Auto Parts431515
AutoNation19812-01581
AutoZoneA1854
BesutoBES1854
CRSCUC1854
CRS AutomotiveCUC1854, CRS1854
CSF2561
CryoMAX0R-001854-A1CM, 0R001854A1CM, 1854
DENSO221-3119, 2213119
DPI DataPoint Inc1854
Dixin USADX1854
Factory AirRAD1854
Federated1854
FisherCU1854
FronteraAM1854
GLOBAL PARTS DISTRIBUTORS1854C
Genera - Archived1854
Keystone Auto IndustriesRAD1854
KlimotoKLI1854
Kool VueP1854
KoyoA1854, C1854
Lexus16400-46270, 1640046270, 16403-46270, 1640346270, 1640046280
Lynol Cooling SystemsLR1854
Modine2539
Murray Heat Transfer431515
NAPA2539, NR1854A
Nissens64759
Northern Factory Sales64759
Northern RadiatorCR1854
OSC1854
Omega24-80748, 2480748
PACIFIC BEST INC.PR1854A, PR1854KA
PBIPR1854A
Parts PlusCU1854
PartslinkLX3010104
Platinum ProRAD1854
Proliance431515
RadCool1854
Reach CoolingREA411854A
Silla Cooling7274A
Spectra PremiumCU1854
Sunbelt Radiators IncSBR1854
TYC1854
Tongshi75030
Toyota1640046280, 1640046270
UNIVERSAL AIR CONDITIONER (UAC)RA1854C
US Motor WorksUSR1854
Vision1854
Vista Pro431515, 9709
Visteon9709

REACH COOLING 41-1854 Fits Vehicles

  • Lexus GS300 (1993-1997)
