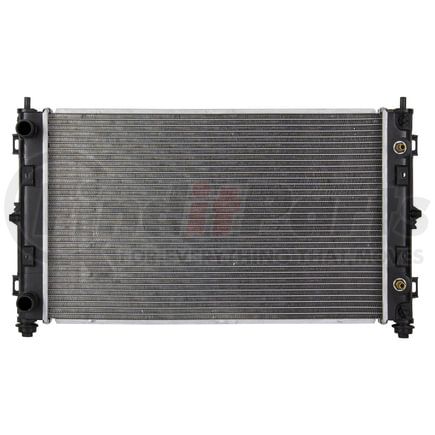

REACH COOLING 41-1702 Radiator

41-1702 by REACH COOLING - Radiator
REACH COOLING
Tap to view 8 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

REACH COOLING 41-1702 Part Description

Manufacturer

REACH COOLING

Product Description

Radiator

Application Summary

Chrysler:95-2000 Cirrus/96-2000 Sebring/95-97 Stratus; Dodge:95-2000 Stratus; Plymouth:96-2000 Breeze

Features & Benefits

  • Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
  • Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
  • Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
  • Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
  • Folded fin edges increase stability and heat disbursement properties.
  • Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
  • We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
  • Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.

No Shipping Restriction

radiator, complete, engine cooling, rad, cooling, heat, transfer

REACH COOLING 41-1702 Specifications

Product Attributes

Transmission Oil Cooler Distance between Fittings 10 IN
Engine Oil Cooler Included No
Inlet Header Length 16 IN
Outlet Header Length 412.8 MM
Inlet Header Width 2.5 IN
Inlet Location Top Left
Outlet Diameter 1.312 IN
Core Row Quantity 1
Core Height 622.3 MM
Tank Material Plastic
Outlet Header Width 2.5 IN
Inlet Diameter 33.3 MM
Core Width 14.5 IN
Outlet Location Bottom Left
Transmission Oil Cooler Included Yes
Down Flow Or Cross Flow Type Cross Flow
Trans Cooler Adapter Fittings Included (True/False) True
Core Thickness 1.25 IN
Core Material Aluminum
Radiator Cap Included Not Needed
Transmission Oil Cooler Type Concentric
Fitting Connection Type Pipe connect
Core Thickness 31.8 MM
Core Width 368.3 MM
Outlet Header Length 16.25 IN
Inlet Header Width 63.5 MM
Core Width 368.3 MM
Inlet Diameter 1.312 IN
Inlet Diameter 33.324 mm
Inlet Header Length 406.40 MM
Core Height 622.3 MM
Inlet Header Length 406.4 mm
Outlet Diameter 33.3 MM
Outlet Header Width 63.5 mm
Core Height 24.5 IN
Outlet Header Width 63.5 MM
Core Thickness 31.75 MM
Inlet Header Width 63.5 mm
Outlet Diameter 33.324 MM
Outlet Header Length 412.75 mm
Transmission Oil Cooler Distance between Fittings 254 MM
Transmission Oil Cooler Distance between Fittings 254 MM

Additional Information

Country of Origin (Primary) TH
UPC 08859869506244
VMRS Code 042002001
UNSPSC 25174002

REACH COOLING 41-1702 Cross References

BrandPart Number
1-800-Radiator1702, 1703
APDI8011702
APDI RADS8011702
Advance Auto Parts432531
AutoNation19812-00192
AutoZoneA1702
Autokool1701
BesutoBES1702
CRSCUC1701, CRS1703, CUC1702, CUC1703
CRS AutomotiveCRS1702, CUC1702
CSF2511
Cancore IndustriesC1702
CarquestCU1702
Chrysler4596 399AA, 4596 400AA, 4596 401AA, 4596399AA, 4596400AA, 4596401AA, 4596409AA, 4596410AA, 474 1110, 4741108, 4741110, 477 3642, 4773642, 484 7097, 484 7098, 484 7476, 4847097, 4847098, 4847476
CryoMAX0R-001702-A2CM, 0R001703A2CM, 0R001702A2CM, 1702, 1703
DPI DataPoint Inc1702, 1701, 1703
Dixin USADX1702
Dodge4596 399AA, 4596 400AA, 4596 401AA, 4596399AA, 4596400AA, 4596401AA, 474 1108, 474 1110, 4741108, 4741110, 477 3642, 4773642
Factory AirRAD1702
Federated1702
FisherCU1702, CU1703
FronteraAM1702, AM1703
GLOBAL PARTS DISTRIBUTORS1703C
Genera - Archived1703, 1701, 1702
Keystone Auto IndustriesRAD1702, RAD1703
KlimotoKLI1702
KoyoA1703
Lynol Cooling SystemsLR1702
Modine2531
Murray Heat Transfer432531
NAPA2531, NR1702A
NRF50232
Nissens60981A
Northern Factory Sales60981A
Northern RadiatorCR1701, CR1702, CR1703
OSC1701, 1703, 1702
Omega24-80745, 2480745
OnixOR1702
PACIFIC BEST INC.PR1702A
PBIPR1702A
PartslinkCH3010108, CH3010104, CH3010106, CH3010103, CH3010105, CH3010107
Performance Radiator1702
Platinum ProRAD1703
Plymouth4596 399AA, 4596 400AA, 4596399AA, 4596400AA, 474 1108, 4741108, 477 3642, 4773642, 4741110
Pro Parts50232
Proliance432531
RadCool1702
Reach CoolingREA411702A
Silla Cooling1703A
Spectra PremiumCU1702
Sunbelt Radiators IncSBR1702
TYC1701, 1702, 1703
TYGDG37048A
Thermal Solutions Manufacturing40376
Tongshi79017
UNIVERSAL AIR CONDITIONER (UAC)RA1702C
US Motor WorksUSR1702
Valeo731579, 376168, VS1702
Vision1703, 1702
Vista Pro432531, 9906
Visteon9037, 9906

REACH COOLING 41-1702 Fits Vehicles

  • Chrysler Stratus (1995-1997)
  • Plymouth Breeze (1996-2000)
  • Dodge Stratus (1995-2000)
  • Chrysler Sebring (1996-2000)
  • Chrysler Cirrus (1995-2000)
