REACH COOLING 41-1575 Radiator

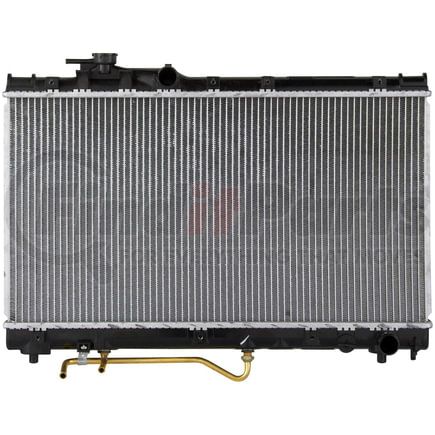

41-1575 by REACH COOLING - Radiator
REACH COOLING
Tap to view 6 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

REACH COOLING 41-1575 Part Description

Manufacturer

REACH COOLING

Product Description

Radiator

Application Summary

Toyota:94-99 Celica

Features & Benefits

  • Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
  • Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
  • Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
  • Folded fin edges increase stability and heat disbursement properties.
  • Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
  • Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
  • We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
  • Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Our utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.

No Shipping Restriction

radiator, engine cooling, rad, car radiator, auto radiator, radiator cap

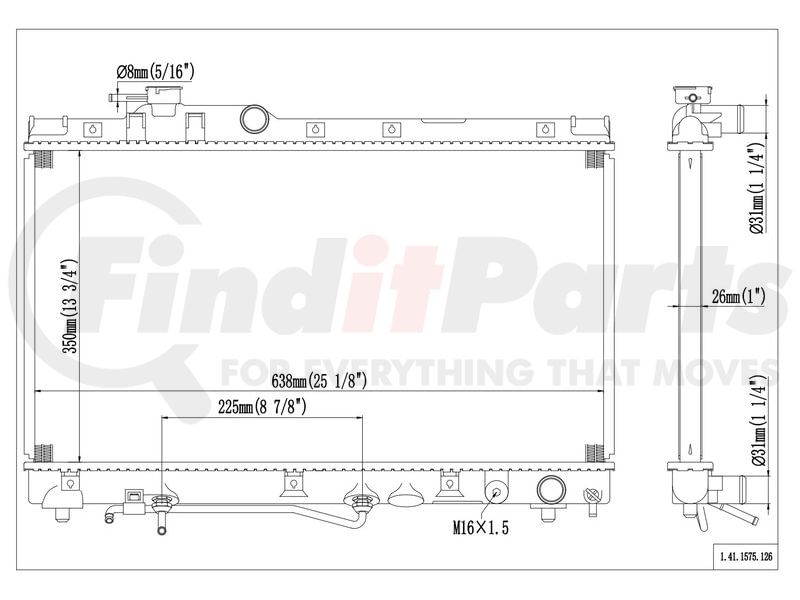

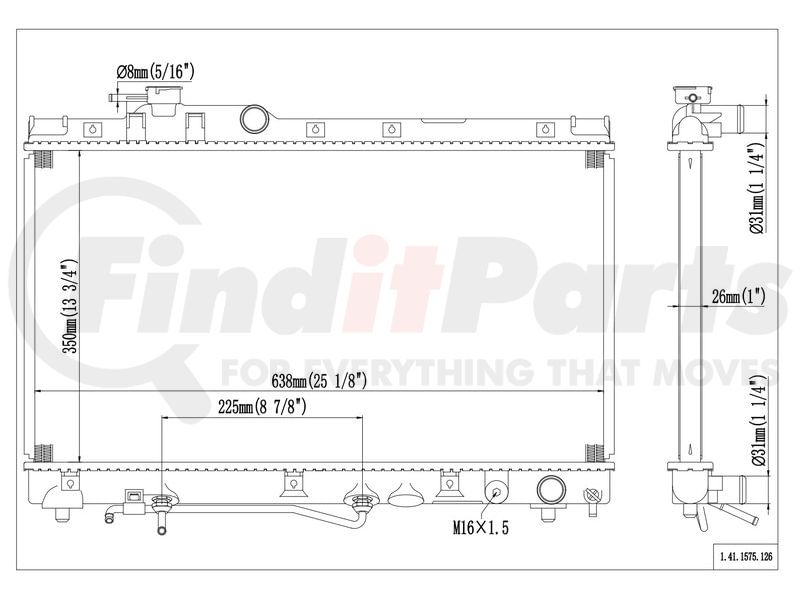

REACH COOLING 41-1575 Specifications

Product Attributes

Tank Material Plastic
Core Height 13.75 IN
Outlet Header Width 50.80 MM
Outlet Diameter 1.25 IN
Trans Cooler Adapter Fittings Included (True/False) True
Core Thickness 1 IN
Core Width 25.125 IN
Inlet Header Length 666.8 MM
Core Material Aluminum
Inlet Header Width 2 IN
Transmission Oil Cooler Type Concentric
Down Flow Or Cross Flow Type Down Flow
Fitting Connection Type Pipe connect
Outlet Location Bottom Right
Inlet Diameter 1.25 IN
Radiator Cap Included No
Outlet Header Length 666.8 MM
Transmission Oil Cooler Included Yes
Transmission Oil Cooler Distance between Fittings 8.875 IN
Inlet Location Top Left
Core Row Quantity 1
Engine Oil Cooler Included No
Inlet Header Length 666.75 mm
Core Height 349.3 MM
Core Thickness 26 MM
Transmission Oil Cooler Distance between Fittings 225.425 MM
Outlet Header Length 26.25 IN
Core Thickness 25.4 MM
Outlet Diameter 31.75 MM
Outlet Header Width 50.8 mm
Inlet Header Width 50.80 MM
Transmission Oil Cooler Distance between Fittings 225.4 MM
Outlet Diameter 31.8 MM
Inlet Header Width 50.8 mm
Inlet Header Length 26.25 IN
Outlet Header Width 2 IN
Core Height 349.25 MM
Outlet Header Length 666.75 mm
Inlet Diameter 31.75 mm
Core Width 638.2 MM
Inlet Diameter 31.8 MM
Core Width 638.175 MM

Additional Information

Country of Origin (Primary) TH
UPC 08859869506817
VMRS Code 042002001
UNSPSC 25174002

REACH COOLING 41-1575 Cross References

BrandPart Number
1-800-Radiator1575
APDI8011575
APDI RADS8011575
Advance Auto Parts431369
AutoNation19812-02312
AutoZoneA1575
BesutoBES1575
CRSCUC1575
CRS AutomotiveCRS1575, CUC1575
CSF2147
Cancore IndustriesC1575
CryoMAX0R-001575-A2CM, 1575, 0R001575A2CM
DENSO2213133, 221-3133
DPI DataPoint Inc1575, 1958
Dixin USADX1575
Factory AirRAD1575
Federated1575
FisherCU1575
FronteraAM1575
GLOBAL PARTS DISTRIBUTORS1575C
Genera - Archived1575
Keystone Auto IndustriesRAD1575
KlimotoKLI1575
Kool VueP1575
KoyoA1575, A1958
Lynol Cooling SystemsLR1575
Modine2543
Murray Heat Transfer431369
NAPA2543, NR1575A
Nissens647771, 64855
Northern Factory Sales647771
Northern RadiatorCR1575, CR1958
OSC1575
OnixOR1575
PACIFIC BEST INC.PR1575KA, PR1575A
PBIPR1575A
Parts PlusCU1575
PartslinkTO3010125, TO3010124
Performance Radiator1575CBR, 1958, 1575
Platinum ProRAD1575
Proliance431369
RadCool1575
Reach CoolingREA411575A
Silla Cooling7261A
Spectra PremiumCU1575
Sunbelt Radiators IncSBR1575
TYC1575
Tongshi75106
Toyota164007A060, 164007A070, 16403-7A060, 16403-7A061, 16403-7A070, 16403-7A071, 164037A060, 164037A061, 164037A070, 164037A071
US Motor WorksUSR1575
Valeo732542
Vision1575
Vista Pro431369, 9771
Visteon9771

REACH COOLING 41-1575 Fits Vehicles

  • Toyota Celica (1994-1999)
