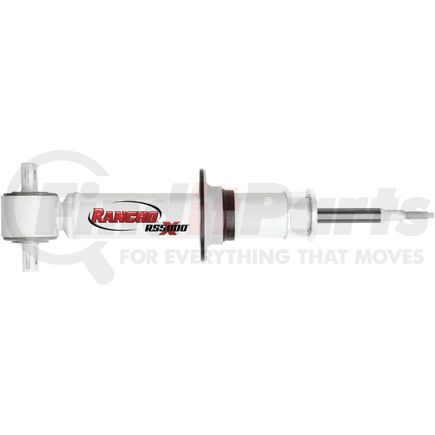

RANCHO RS55834 Part Description
Manufacturer
Product Description
Suspension Strut
Features & Benefits
- IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
- MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
- STRONG AND DURABLE -- Features a nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, application-specific sintered iron piston for enhanced structural integrity and polyvinyl protective boot
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248degF
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
- REDUCES FADE -- Nitrogen gas pressurized to 60 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
- MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
- BUY WITH CONFIDENCE -- Comes with Rancho's Limited Lifetime Warranty
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
RANCHO RS55834 Specifications
Product Attributes
| Body Type | SS7 |
| Compressed Length | 16.47 IN |
| Travel Length | 4.42 in |
| Grade Type | Performance |
| Extended Length | 20.89 in |
| Upper Mount Type | XP15 |
| Gas Charged | Yes |
| Body Length | 13.57 IN |
| Adjustable Damping | No |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Finish | Painted |
| Hydraulic Lockout | No |
| Lower Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Parts Pack(s) | P01726 |
| Upper Mount Code | XP15 |
| Compressed Length | 418.3 MM |
| Extended Length | 530.6 MM |
| Travel Length | 112.3 MM |
| Body Length | 344.7 MM |
| Lower Mount Type | Loop (Eyelet) Bushing |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | 01164 |
| UPC | 00039703006255 |
| VMRS Code | 016020000 |
| UNSPSC | 25172007 |
RANCHO RS55834 Cross References
| Brand | Part Number |
|---|---|
| FCS | 345798 |
| Ford | EL3Z18124A, EL3Z18124B, EL3Z18124C, EL3Z18124H, EL3Z18124K |
| Gabriel | G511102 |
| MONROE | 72651 |
| Monroe Shocks & Struts | 72651 |
| Motorcraft | ASH24559, ASH24560, ASH24561 |
| NAPA Shocks | 72651 |
RANCHO RS55834 Fits Vehicles
- Ford F-150 (2014)
