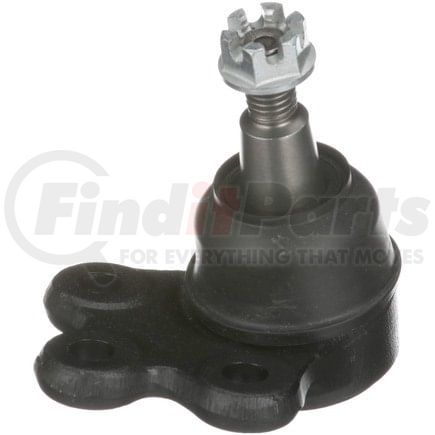

DELPHI TC5717 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5717 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Color | Black |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 77 MM |
| Type | Premium |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 46.40 MM |
| Washers Included | Yes |
| Height | 2.598 IN |
| Height | 66.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Stud Thread Length | 0.866 IN |
| Stud Thread Length | 22 MM |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 55.00 MM |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mounting Bolt Shank Diameter | 10.00 MM |
| Mounting Bolt Head Diameter | 19.60 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 29.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.827 IN |
| Stud Tapered End 2 Diameter | 21 MM |
| Stud Tapered End 1 Diameter | 0.636 IN |
| Stud Tapered End 1 Diameter | 16.15 MM |
| Stud Thread Pitch | 1.75 MM |
| Length | 77.00 MM |
| Length | 3.030 IN |
| Stud Thread Diameter | 0.47 IN |
| Mounting Bolt Length | 1.830 IN |
| Mounting Bolt Shank Diameter | 0.390 IN |
| Mounting Bolt Head Diameter | 0.770 IN |
| Mounting Bolt Thread Length | 1.140 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604312537 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5717 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | BJ91315, BJ91315XL |
| Dorman | 524-158, 523-655 |
| General Motors | 19258791, 20945779, 20945780 |
| MAS Industries | CB90053, CB90053PR, CB90054, CB90054PR |
| MEVOTECH | MS50519, TXMS50519 |
| MOOG | K500227 |
| MOOG Chassis Products | K500227 |
| Mevotech | CMS501117, CMS501118 |
| N/A | MS50519, GS50519, TXMS50519, BJ91315, 610.66026 |
| QUICK STEER | K500227 |
| TRW | JBJ1125 |
DELPHI TC5717 Fits Vehicles
- GMC Terrain (2010-2017)
- Chevrolet Equinox (2010-2017)
