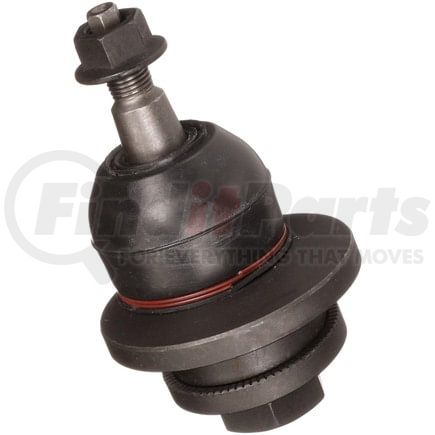

DELPHI TC5838 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5838 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 2.100 IN |
| Maximum Outside Diameter | 53.34 MM |
| Color | Black |
| Stud Thread Diameter | 12 MM |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Cotter Pin Hole | No |
| Washers Included | Yes |
| Height | 4.130 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.76 IN |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.71 IN |
| Stud Tapered End 2 Diameter | 18.034 MM |
| Stud Tapered End 1 Diameter | 0.58 IN |
| Stud Tapered End 1 Diameter | 14.732 MM |
| Stud Thread Diameter | 0.47 IN |
| Height | 104.90 MM |
| Stud Thread Length | 19.3 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604316597 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC5838 Cross References
DELPHI TC5838 Fits Vehicles
- Jeep Commander (2006-2010)
- Jeep Grand Cherokee (2005-2010)
