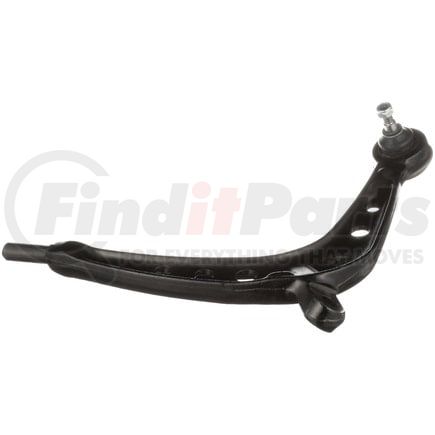

(888) 312-8812 Login SignupDELPHI TC5524 Control Arm and Ball Joint Assembly
Tap to view 20 more
$15049
Limited availability at this price!
In Stock
Get it by Monday, Mar 2
DELPHI TC5524 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5524 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 136.50 MM |
| Control Arm Maximum Width | 5.374 IN |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Stud Length | 20.00 MM |
| Ball Joint Stud Length | 0.787 IN |
| Control Arm Maximum Length | 376.20 MM |
| Control Arm Maximum Length | 14.811 IN |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604307144 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC5524 Cross References
DELPHI TC5524 Fits Vehicles
- BMW 330xi (2001-2005)
- BMW 325xi (2001-2005)
